The Yingteng FP series fan coil units integrate advanced technologies from both domestic and international similar products. In accordance with national standards, after numerous trials and measurements, a series of technical design improvements have been efficiently implemented, resulting in superior performance, wide applications, a complete range of types, high efficiency, and low noise. The series includes horizontal concealed, horizontal exposed, vertical concealed, vertical exposed, and card-mounted units. When paired with fresh air handling units, they are extensively used in low-noise environments such as hotels, hospitals, office buildings, high-end conference halls, and exhibition halls, making them an ideal terminal device for centralized air conditioning systems.
Product Specifications

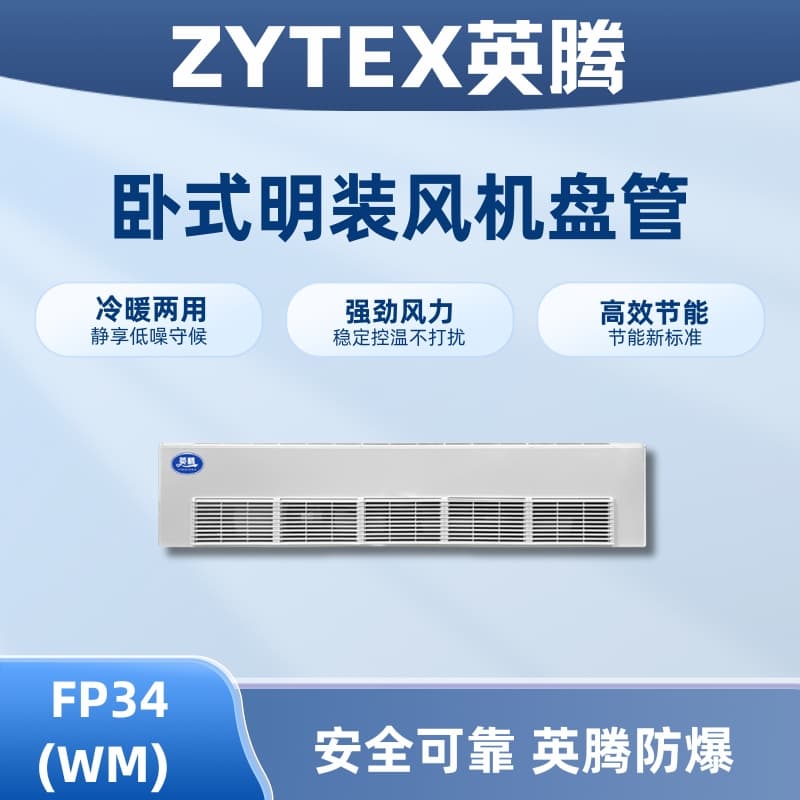

Model: FP34 (WM)
Brand: YingTeng
Airflow (m³): 340
Cooling Capacity (W): 1800
Heat (W): 2700
Noise dB(A): ≤37
Cold Water Supply Temperature: 7℃-12℃
Hot Water Supply Temperature: 40℃-60℃
Working Pressure (KPa): 1.6
Static Pressure: 30Pa/50Pa
Power Supply: 220V/50Hz
In-and-out pipe: ZG3/4
Condensate Drain Pipe: ZG3/4
Dimensions (Length x Width x Height mm): 750 x 500 x 250
Note: The data in the table are the measured values under the test conditions specified by the National Standard of China for "Fan Coils Units" (GB/T 19232-2003).
1. Cold supply conditions parameters: Inlet dry bulb temperature DB = 27℃, wet bulb temperature WB = 19.5℃.
Cold water inlet temperature: 7℃, outlet temperature: 12℃.
Heating operation parameters:进口 air dry bulb temperature DB=21℃, incoming water temperature 60℃。
2. Noise Measurement: Values measured at 1 meter distance from the front of the unit and both above and below it, within an anechoic chamber.
3. Standard configuration for vertical concealed units includes an outdoor static pressure of 12 Pa.
4. Water resistance refers to the resistance at the rated flow rate; input power refers to the input power at high airflow.
5. When selecting a combination cold and hot twin coil unit, refer to the main technical parameters in the table above. One row of heat is approximately 40% of three rows of heat, low static...
Press machine air volume loss is approximately 10%, while the static pressure loss for high-pressure units is around 20%.
Product Features
We offer a variety of series, including horizontal surface-mounted, horizontal concealed, vertical surface-mounted, vertical concealed, ceiling-mounted, cabinet-style, and wall-mounted.
Low overall height, saving architectural space.
High cooling (heating) capacity, low noise, three-speed motor for adjustable airflow, catering to diverse usage requirements.
The entire unit is made of hot-dip galvanized sheet, copper pipes, and aluminum fins, offering strong rust resistance.
The water tray is formed in one piece by molding, and the insulation is applied using a full-pressure bonding process, eliminating concerns of condensation water.
Equipped with exhaust and drain functions, ensuring thorough heat exchange and preventing pipe cracking due to freezing.
The heat exchanger is made of copper tubes and high-efficiency aluminum fins, mechanically expanded.
The unit is equipped with an efficient aluminum finned heat exchanger and a low-noise fan, enhancing heat exchange and maximizing the heat exchanger's thermal transfer efficiency.
精密 design allows for the left and right configurations to be ordered at will. Optional automatic temperature control units can be provided for constant temperature control of the controlled space; (temperature control unit to be ordered separately)
The motor is an energy-saving fixed phase capacitor motor, equipped with imported high-precision steel ball bearings that can self-lubricate. The motor shafts are all treated with quenching and special hard chrome plating, ensuring durability and easy assembly and disassembly at the fixed points. The motor lead wires are protected with metal hoses, conforming to international standards.
Standard coil discharge outlet static pressure is 0~12Pa, while the residual pressure type discharge outlet static pressure is 30Pa (or ≤50Pa), with the code H.
The water tray and insulation are molded, with an overall adhesive process, ensuring durability without weld marks. The design is aesthetically pleasing and lightweight, with no condensation or dripping. The exposed piping is made from sheets produced by Baosteel Shanghai, surface treated with spray painting, while the concealed piping is made from galvanized steel or fingerprint-resistant steel.
The coiled tube material is made of seamless copper tubes with corrugated aluminum fins, formed through hydraulic or mechanical expansion. The inner body of the coil box is lined with sound-absorbing and insulating materials, featuring an intricate arrangement of copper tubes, which boasts exceptional heat transfer performance and extremely low air resistance.
