Product Specifications
Brand: YingTeng

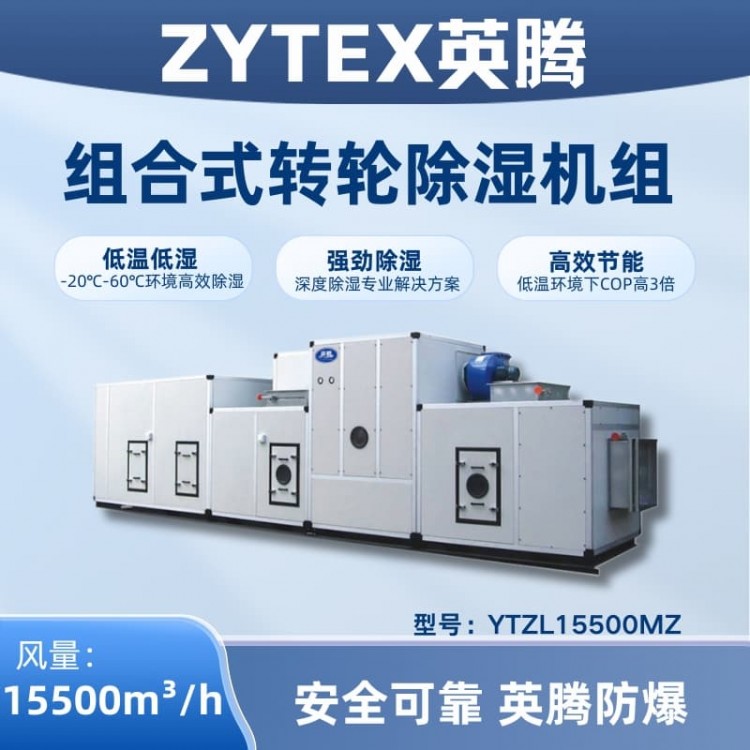

Model: YTZL15500MZ
Airflow Handling: 15,500 m³/h
Regenerated Airflow: 5200 m³/h
Rated Dehumidification Capacity: 108 kg/h
Chassis Pressure Difference: 300 - 800Pa (adjustable)
Regenerative exhaust pressure: 200 - 600 Pa (adjustable)
Installation Power: Electric Heating 160kW / Steam Heating 12.5kW
Operating Temperature Range: -10 - 80℃; Humidity Range: 10 - 99%
Power: 380V/3 - 50Hz
Regenerated Heating: Temperature 120±10℃ / Power 150kW
Electric Heating Type: 304 Stainless Steel Electric Heating Tube
Steam Consumption: 300 kg/h
Fan Categories: Low Noise Centrifugal Fan - Direct Drive / Belt Drive, Processing Fan Power 9kW, Regenerative Fan Power 3kW
Decelerator Power: 0.12 kW
Rotation Speed: 6 - 12 RPM/H
Previous Table Cooling Capacity: 120 kW
Table after cooling capacity: 110 kW
Air supply heating section: Hot water, steam, electric heating
Airflow heating capacity: 68 kW
Air Filter: Plate-style coarse efficiency G5 + Bag-style medium efficiency F7
Main Unit Dimensions: 6000*2250*2250mm
Manufacturer: Henan Tongteng Explosion-Proof Electrical Equipment Co., Ltd.
Note: The above technical parameters are for reference only, and the actual unit shall prevail.
Product Features
Patented lighting structure, superior quality. The unit employs a patented anti-cold bridge dual-frame design, featuring a simple yet exquisite frame structure, a dignified and generous appearance, and strong airtightness. The interior of the unit is flat, making it easy to clean and free of secondary pollution, suitable for use in purification facilities. The unit is meticulously designed, incorporating the best features of similar products, and is made with top-grade components using a unique process to ensure quality.
Unique craftsmanship, superior performance: robust assembly structure, high airtightness, leak-proof design; double-sided sealing treatment on the impeller section, prevents internal leakage and utilizes mechanical transmission for low failure rate; coil made of high-purity seamless copper tube and pure aluminum finned tubes, and undergoes high-pressure expansion, adaptable to any high-pressure piping without leakage; and ensures minimum contact thermal resistance and high heat transfer efficiency.
Attractive appearance, smooth design: The outer panel of the unit is made of high-quality coated steel plate, preventing surface scratches and ensuring a clear, aesthetically pleasing look; the structural arrangement of the unit's components is reasonable, with no prominent external protrusions, creating a smooth and simple design; easy for transportation and installation.
Smart Control, Energy-Efficient: The unit utilizes mature waste heat recovery technology to reclaim waste heat for dehumidification regeneration; it can utilize low-quality energy or renewable energy sources; replacing high-quality energy consumption to save operational costs: Songyue can provide professional dehumidification self-control solutions according to customer requirements, ensuring each unit operates economically, efficiently, and reliably to meet customer process demands.
现场 disassembly, convenient and quick: all panels of the unit can be easily disassembled on-site, and multiple reassemblies will not affect the seal or strength of the container; also, shipping as either a complete unit or as individual components can be chosen based on customer requirements.
Expertise and Precision: Our company offers comprehensive system integration solutions; we consider customer needs with the application of wet energy technology; while maximizing customer satisfaction, we strive to minimize investment and operational costs for our clients.
