Product Specifications
Brand: YingTeng

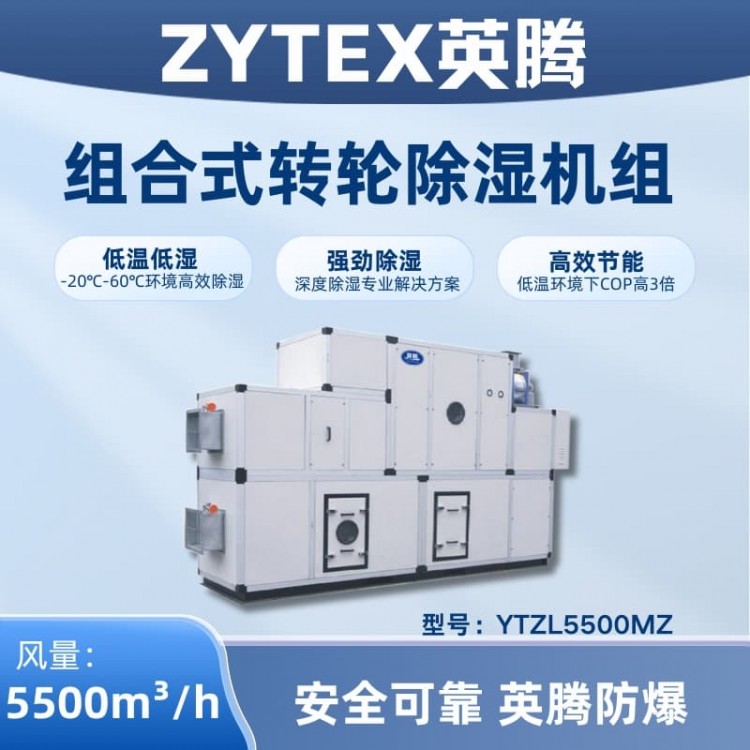

Model: YTZL5500MZ
Air Volume Treatment: 5500 m³/h
Regenerated Airflow: 1900 m³/h
Rated Dehumidification Capacity: 38 kg/h
Airflow residual pressure: 300 - 800 Pa (adjustable)
Regenerative exhaust pressure: 200 - 600 Pa (adjustable)
Installation Power: Electric Heating 60kW / Steam Heating 6.5kW
Temperature and Humidity Range: -10 - 80℃; 10 - 99%
Power: 380V/3 - 50Hz
Regenerated Heating: Temperature 120±10℃ / Power 53kW
Electric Heating Type: 304 Stainless Steel Electric Heating Tube
Steam Consumption: 105 kg/h
Fan Categories: Low Noise Centrifugal Fan - Direct Drive / Belt Pulley, 4kW Processing Fan Power, 2.2kW Regenerative Fan Power
Decelerator Power: 0.09 kW
Rotational Speed: 6 - 10 RPM/H
Previous table cooling capacity: 43 kW
Table Cooling Capacity: 38 kW
Air supply heating section: Hot water, steam, electric heating
Airflow heating capacity: 24 kW
Air Filter: Plate-type coarse efficiency G5 + Bag-type medium efficiency F7
Mainframe dimensions: 4500*1570*2200mm
Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.
Note: The above technical specifications are for reference only; the actual unit is to be taken as the standard.
Product Features
Patented lighting structure, superior quality. The unit employs a patented anti-cold bridge double-frame design, featuring a simple yet elegant frame structure, a dignified and generous appearance, and strong airtightness; the interior of the unit is flat, not prone to accumulating dust, and free of secondary pollution, making it suitable for use in purification facilities. The unit is meticulously designed, building upon the strengths of similar products, and is equipped with top-grade accessories, crafted with unique techniques to ensure superior quality.
Unique craftsmanship, excellent performance: robust machinery structure, high airtightness, leak-proof; twin-sided sealing treatment on the turbine section, prevents internal leakage and features mechanical transmission, low failure rate; coil made of high-purity seamless copper tubes and pure aluminum finned blades, and undergoes high-pressure expansion, adaptable to any high-pressure piping without leakage; and ensures minimum contact thermal resistance and high heat transfer efficiency.
Attractive appearance and smooth design: The outer panel of the unit is made of high-quality coated steel plate, preventing surface scratches and ensuring a clear and aesthetically pleasing look; the unit's component structure is well-arranged with no obvious protruding parts, resulting in a sleek and simple design; easy for transportation and installation.
Smart Control, Energy-Efficient: The unit utilizes mature waste heat recovery technology to reclaim waste heat for dehumidification regeneration; it can utilize low-quality energy or renewable energy sources; replacing high-quality energy consumption to save operational costs: Songyue can provide professional dehumidification control solutions tailored to customer requirements, ensuring each unit operates economically, efficiently, and reliably to meet customer process demands.
On-site disassembly, convenient and quick: all panels of the unit can be easily disassembled on-site, and repeated assembly will not affect the seal and strength of the container; also, we can choose to ship the entire unit or individual parts according to customer needs.
Expertise and Precision: Our company offers comprehensive system integration solutions; we utilize wet energy technology to fully consider customer needs; while maximizing customer satisfaction, we strive to save customers on investment and operational costs.
