The YingTeng FP series fan coil units have absorbed the advanced technologies of similar products both domestically and internationally. In accordance with national standards, after numerous trials and measurements, they have efficiently completed a series of technical design improvements. As a result, they offer superior performance, wide applications, a complete range of types, high efficiency, and low noise. The series includes horizontal concealed, horizontal exposed, vertical concealed, vertical exposed, and cassette unit types. When paired with fresh air handling units, they are widely used in hotels, hospitals, office spaces, high-end conference halls, and exhibition halls, where low noise is a priority, making them an ideal terminal unit for centralized air conditioning systems.
Product Specifications

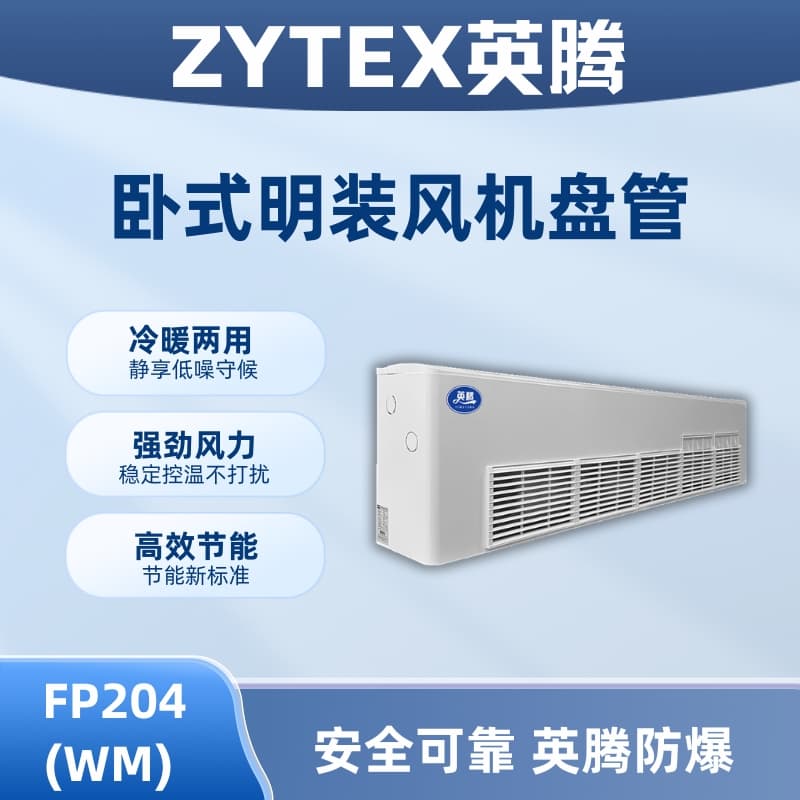

Model: FP204 (WM)
Brand: YingTeng
Airflow (m³): 2040
Cooling Capacity (W): 10800
Heat (W): 16,200
Noise dB(A): ≤50
Cold Water Supply Temperature: 7℃-12℃
Hot Water Supply Temperature: 40℃-60℃
Working Pressure (KPa): 1.6
Static Pressure: 30Pa/50Pa
Power Supply: 220V/50Hz
In and Out Pipe: ZG3/4
Condensate Drain Pipe: ZG3/4
Dimensions (Length x Width x Height mm): 1795*500*250
Note: The data in the table is the measured value under the test conditions specified by the national standard for "Fan Coil Units" (GB/T19232-2003).
1. Cooling supply conditions: Inlet dry bulb temperature DB = 27°C, wet bulb temperature WB = 19.5°C.
Inlet water temperature: 7℃, outlet water temperature: 12℃.
Heating工况parameters: Imported air dry bulb temperature DB=21℃, incoming water temperature 60℃。
2. Noise Measurement: Values measured at a distance of 1 meter in front and above the equipment within an anechoic chamber.
3. Standard configuration of the vertical concealed unit features an external static pressure of 12 Pa.
4. Water resistance refers to the resistance at the rated flow rate; input power refers to the power input at high airflow.
5. When selecting a combination cold and hot twin coil unit, refer to the main technical parameters in the table above. One row of heat is approximately 40% of three rows of heat, low static...
The air volume loss of the press unit is approximately 10%, and the static pressure loss of the high-pressure unit is about 20%.
Product Features
We offer a range including horizontal surface-mounted, horizontal concealed, vertical surface-mounted, vertical concealed, ceiling-mounted, cabinet-style, wall-mounted, and more.
Low overall height, saving building space.
High cooling (heating) capacity, low noise, three-speed motor for adjustable air volume, meets various usage requirements.
The entire unit is made of hot-dipped galvanized steel, copper pipes, and aluminum fins, offering strong corrosion resistance.
The drip pan is molded as a whole, and the insulation uses a whole-pressure bonding technique, eliminating worries about condensation.
Equipped with exhaust and drain functions, ensuring thorough heat exchange and preventing pipeline cracking due to freezing.
The evaporator is made of copper tubes and high-efficiency aluminum fins, mechanically expanded.
The unit features an efficient aluminum finned heat exchanger with a low-noise fan, enhancing heat exchange and maximizing the heat exchanger's thermal transfer efficiency.
精密 design allows for the left and right configurations to be ordered at will. Upon customer request, an automatic temperature control unit can be provided for constant temperature control of the controlled space; (temperature control unit to be ordered separately)
The motor is an energy-saving fixed phase capacitor motor, equipped with imported high-precision steel ball bearings that are self-lubricating. The motor shafts are all heat-treated and chrome-plated for durability, with easy disassembly at the fixed points. The motor leads are protected by metal hoses, meeting international standards.
Standard coiled outlet air has a static pressure of 0~12Pa, while the remaining pressure outlet air has a static pressure of 30Pa (or ≤50Pa), with the code H.
The water tray and insulation are molded, with an overall adhesive bonding process, ensuring durability without any weld marks. The appearance is beautiful and lightweight, with no condensation or dripping. The exposed piping is made of sheets produced by Baosteel Shanghai, which are surface coated. The concealed piping is made of galvanized steel or fingerprint-resistant steel.
The coil material is made of seamless copper tubes with corrugated aluminum fins, formed through hydraulic or mechanical expansion. The coil box is lined with sound-absorbing insulation material, featuring copper tubes arranged in an interlaced pattern, offering exceptional heat transfer performance and extremely low air resistance.
