The Yingteng FP series fan coil units integrate advanced technologies from both domestic and international counterparts. In accordance with national standards, after numerous trials and tests, they have achieved a series of technical design improvements with high efficiency. As a result, they offer superior performance, wide applications, a complete range of types, high efficiency, and low noise. The series includes horizontal concealed, horizontal exposed, vertical concealed, vertical exposed, and card-mounted units. When paired with air handling units, they are extensively used in low-noise environments such as hotels, hospitals, office spaces, high-end conference halls, and exhibition halls, making them an ideal terminal device for centralized air conditioning systems.
Product Specifications

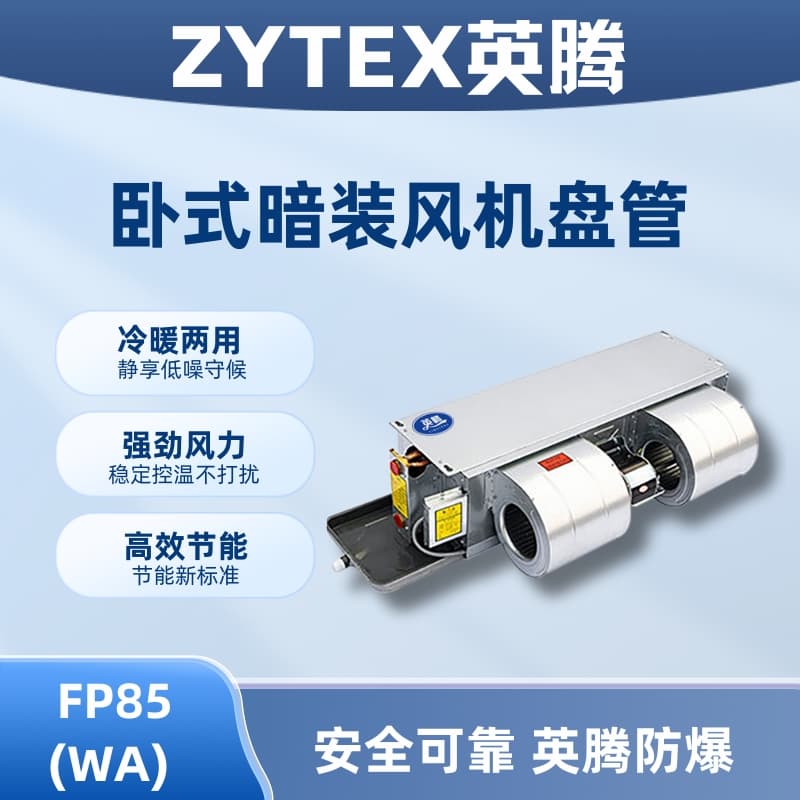

Model: FP85 (WA)
Brand: YingTeng
Airflow (m³): 850
Cooling Capacity (W): 4500
Heat (W): 6750
Noise db(A): ≤43
Cold water supply temperature: 7°C - 12°C
Hot Water Supply Temperature: 40℃-60℃
Working Pressure (KPa): 1.6
Static Pressure: 30Pa/50Pa
Power: 220V/50Hz
Inlet and outlet pipes: ZG3/4
Condensate Drain Pipe: ZG3/4
Dimensions (Length x Width x Height mm): 1040 x 475 x 246
Note: The data in the table are measured values under test conditions specified by the national standard "Fan Coil Units" (GB/T19232-2003).
1. Cold supply operating parameters: Inlet dry bulb temperature DB=27℃, wet bulb temperature WB=19.5℃;
Inlet water temperature for cold water is 7°C, outlet water temperature is 12°C.
Heating工况parameters: Imported air dry bulb temperature DB=21℃, incoming water temperature 60℃.
2. Noise Measurement: Values measured at a distance of 1 meter in front and above the equipment, within an anechoic chamber.
3. Standard configuration for vertical concealed units features an outdoor static pressure of 12 Pa.
4. Water resistance refers to the water resistance at rated flow; input power refers to the input power at high air volume.
5. When selecting a combination cold and hot twin coil unit, refer to the main technical parameters in the table above. One row of heat is approximately 40% of three rows of heat, low static...
The air volume loss of the pressurizing unit is approximately 10%, and the static pressure loss of the high static pressure unit is about 20%.
Product Features
We offer a series including horizontal surface-mounted, horizontal concealed, vertical surface-mounted, vertical concealed, ceiling-mounted, cabinet-style, wall-mounted, and more.
Low overall height, saving architectural space.
High cooling (heating) capacity, low noise, three-speed motor for adjustable air volume, catering to various usage requirements.
The entire unit is made of hot-dipped galvanized steel, copper tubes, and aluminum fins, offering strong rust resistance.
The drip pan is formed in one piece, with insulation using an integral pressure bonding technique, eliminating concerns of condensation.
Equipped with exhaust and drain functions, ensuring thorough heat exchange and preventing pipe cracking due to freezing.
The condenser is made by mechanical bending of copper tubes and high-efficiency aluminum fins.
The unit features an efficient aluminum finned heat exchanger with a low-noise fan, enhancing heat exchange and maximizing the heat exchanger's thermal transfer efficiency.
Precise design allows for the selection of left or right-hand coil ordering at will. Upon customer request, an automatic temperature control unit can be custom-made for constant temperature control of the controlled area; (temperature control unit to be ordered separately)
The motor is an energy-saving fixed-phase capacitor motor, equipped with imported high-precision ball bearings that can be self-lubricated. The motor shafts are all treated with quenching and hard chrome for durability, making them easy to disassemble and assemble at the fixed points. The motor leads are all protected with metal hoses, in compliance with international standards.
The static pressure of the ordinary coiled discharge outlet is 0~12Pa, while the static pressure of the residual pressure discharge outlet is 30Pa (or ≤50Pa), with the code H.
The water tray and insulation are molded, with an overall adhesive bonding process, ensuring durability without weld marks. The appearance is attractive and lightweight, with no condensation or dripping. The exposed piping is made of sheet metal from Shanghai Baogang, with a spray-painted surface, while the concealed piping is made of galvanized steel or fingerprint-resistant steel.
The coiled material is made of seamless copper tubes with corrugated aluminum fins, formed through hydraulic or mechanical expansion. The coil casing is lined with sound-absorbing insulation material, featuring an intricate arrangement of copper tubes that boasts excellent heat transfer properties and minimal air resistance.
