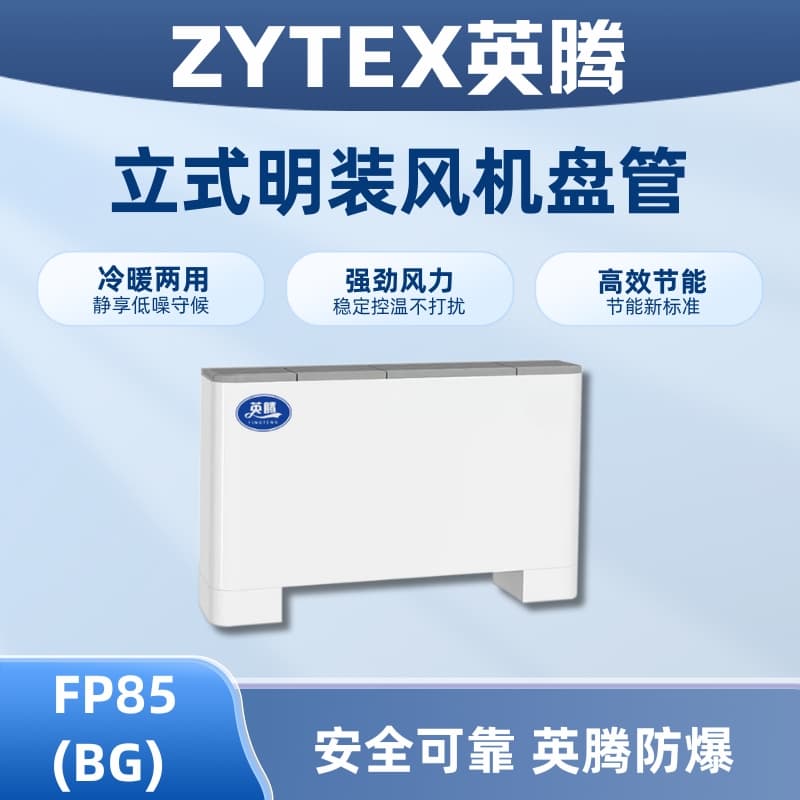

The Yingteng FP series fan coil units incorporate advanced technologies from similar domestic and international products. Designed in accordance with national standards and after numerous trials and tests, they have achieved a series of technical design improvements with high efficiency. Consequently, they offer superior performance, wide application, a complete range of types, high efficiency, and low noise. The series includes horizontal concealed, horizontal exposed, vertical concealed, vertical exposed, and cassette units. When paired with air handling units, they are widely used in low-noise environments such as hotels, hospitals, office spaces, high-end conference halls, and exhibition halls, making them ideal terminal devices for centralized air conditioning systems.
Product Specifications
Model: FP85 (LM)
Brand: YingTeng
Airflow (m³): 850
Cooling Capacity (W): 4500
Heat (W): 6750
Noise dB(A): ≤43
Cool Water Supply Temperature: 7℃-12℃
Supplying hot water temperature: 40℃-60℃
Working Pressure (KPa): 1.6
Static Pressure: 30 Pa / 50 Pa
Power Supply: 220V/50Hz
Inlet and outlet pipes: ZG 3/4
Condensate Drain Pipe: ZG3/4
Dimensions (Length x Width x Height mm): 1080 x 260 x 640
Note: The data in the table is the measured value under the test conditions specified in the national standard "Air-cooled Ceiling Fan Coil Units" (GB/T 19232-2003).
Supply Conditions: Inlet Air Dry Bulb Temperature DB = 27℃, Wet Bulb Temperature WB = 19.5℃
Cold water inlet temperature: 7℃, outlet temperature: 12℃.
Heating operation parameters: Inlet air dry bulb temperature DB=21°C, water inlet temperature 60°C.
2. Noise Measurement: Values measured at a distance of 1 meter in front of and above the equipment in an anechoic chamber.
3. The standard configuration of the vertical concealed unit has an outdoor static pressure of 12 Pa.
4. Water resistance refers to the water resistance at the rated flow rate; input power refers to the input power at high airflow.
5. When selecting a combined cold and hot dual coil unit, refer to the main technical parameters in the table above. One row of heat is approximately 40% of three rows of heat, low static...
The air volume loss of the pressurizing unit is approximately 10%, and the static pressure loss of the high static pressure unit is about 20%.
Product Features
Available in horizontal surface-mounted, horizontal concealed, vertical surface-mounted, vertical concealed, ceiling-mounted, cabinet-style, wall-mounted, and more series.
Low overall height, saving building space.
High cooling (heating) capacity, low noise, three-speed motor for adjustable air volume, catering to diverse usage requirements.
The entire unit is made of hot-dipped galvanized steel, copper pipes, and aluminum fins, offering strong corrosion resistance.
The overall molded sink is designed for water containment, and heat insulation is achieved through an integrated pressure bonding process, eliminating concerns about condensation.
Equipped with exhaust and drain functions, ensuring thorough heat exchange and preventing pipe cracking due to freezing.
The cooler is made of copper tubes and high-efficiency aluminum fins, processed through mechanical bending.
The unit is equipped with an efficient aluminum finned heat exchanger and a low-noise fan, enhancing heat exchange and maximizing the heat exchanger's thermal transfer efficiency.
精密 design allows for the left and right configurations to be selected at will for ordering. An automatic temperature control device can be custom-made upon request to maintain a constant temperature in the controlled area; (temperature control device to be ordered separately)
The motor is an energy-saving fixed phase capacitor motor, equipped with imported high-precision ball bearings that can be self-lubricated. The motor shafts are all heat treated and hard chrome-plated for durability, with easy disassembly at the fixed points. The motor lead wires are all protected with metal hoses, conforming to international standards.
Standard coiled duct outlets have a static pressure of 0~12Pa, while pressure-retaining outlet static pressure is 30Pa (or ≤50Pa), with the code H.
The water tray and insulation are molded, with an overall adhesive bonding process, ensuring strength, durability, and seamless construction. The design is aesthetically pleasing and lightweight, with no condensation or dripping. The exposed piping is made from sheets produced by Baosteel Shanghai, which are spray-painted for surface treatment, while the concealed piping is made from galvanized steel or fingerprint-resistant steel.
The coiled material is made from seamless copper tubes with corrugated aluminum fins, formed by hydraulic or mechanical expansion. The coil box is lined with sound-absorbing and insulating materials, featuring copper tubes in an interlaced arrangement, offering exceptional heat transfer performance and low air resistance.
