The YingTeng FP series fan coil units incorporate advanced technologies from both domestic and international counterparts. In compliance with national standards and after numerous trials and tests, they have achieved a series of technical design improvements with high efficiency. As a result, they offer superior performance, wide applications, a complete range of types, high efficiency, and low noise. The series includes horizontal concealed, horizontal exposed, vertical concealed, vertical exposed, and cassette units. When paired with fresh air handling units, they are extensively used in low-noise environments such as hotels, hospitals, office spaces, high-end conference halls, and exhibition halls, making them an ideal terminal device for centralized air conditioning systems.
Product Specifications

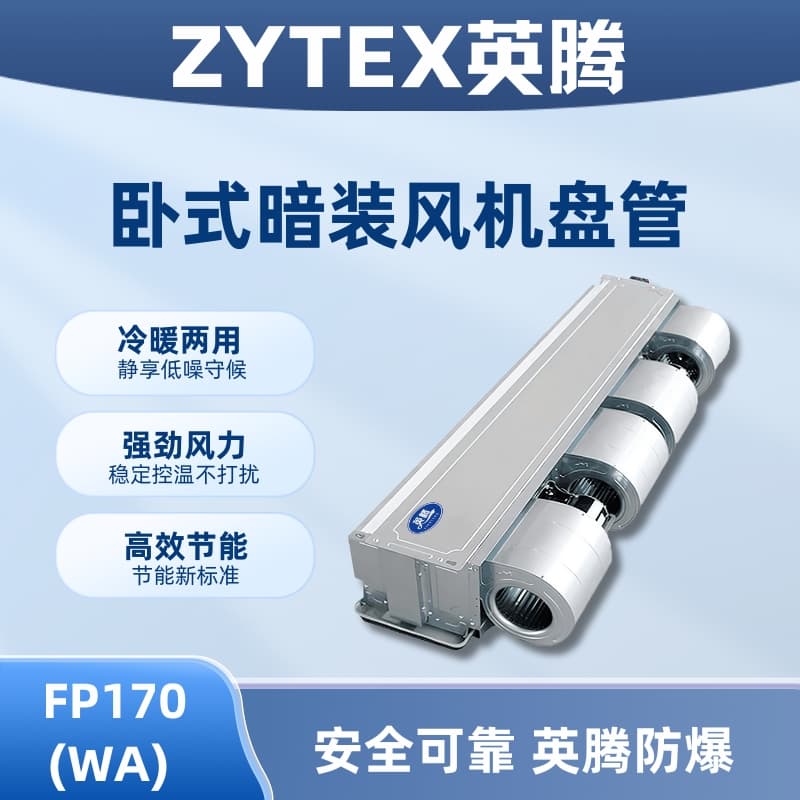

Model: FP170 (WA)
Brand: YingTeng
Airflow (m³): 1700
Cooling Capacity (W): 9000
Heat (W): 13,500
Noise db(A): ≤48
Cold Water Supply Temperature: 7℃-12℃
Supplying hot water temperature: 40℃-60℃
Working Pressure (KPa): 1.6
Static Pressure: 30Pa/50Pa
Power: 220V/50Hz
In and Out Pipe: ZG3/4
Condensate Drain Pipe: ZG3/4
Dimensions (Length x Width x Height mm): 1640 x 475 x 246
Note: The data in the table are the measured values under the test conditions specified by the national standard for "Fan Coil Unit" (GB/T19232-2003).
1. Cooling supply parameters: Inlet dry bulb temperature DB=27℃, wet bulb temperature WB=19.5℃;
Inlet water temperature for cold water: 7℃, outlet water temperature: 12℃。
Heating operating parameters:进口 air dry bulb temperature DB = 21°C, incoming water temperature 60°C.
2. Noise Measurement: Values measured at 1 meter forward and upward from the front of the unit in an anechoic chamber.
3. Standard configuration for vertical concealed units includes an outdoor static pressure of 12 Pa.
4. Water resistance refers to the resistance at the rated flow rate; input power refers to the input power at high airflow.
5. When selecting a combination cold and hot twin coil unit, refer to the main technical parameters in the table above. One row of heat is approximately 40% of three rows of heat, low static...
Airflow loss in pressurizing units is approximately 10%, and static pressure loss in high-pressure units is around 20%.
Product Features
Vertical and horizontal surface-mounted, concealed-mounted, ceiling-mounted, cabinet-style, wall-mounted, and more series available.
Low overall height, saving architectural space.
High cooling (heating) capacity, low noise, three-speed motor for adjustable air volume, catering to various usage requirements.
The entire unit is made of hot-dipped galvanized steel, copper pipes, and aluminum fins, offering strong corrosion resistance.
The water pan is fully molded, and the insulation uses a whole-pressure bonding technique, eliminating concerns of condensation.
Equipped with exhaust and drain functions, ensuring thorough heat exchange and preventing pipeline cracking due to freezing.
The evaporator is made of copper tubes and high-efficiency aluminum fins, processed by mechanical胀管.
The unit employs an efficient aluminum finned heat exchanger with a low-noise fan, enhancing heat exchange and maximizing the heat exchanger's thermal transfer efficiency.
Precise design allows for the selection of either left or right hand coil ordering. Optional automatic temperature control units can be custom-made for consistent temperature control of controlled spaces; (temperature control unit to be ordered separately)
The motor is an energy-saving fixed phase capacitor motor, equipped with imported high-precision steel ball bearings that can be self-lubricated. The motor shafts are all heat-treated and treated with special hard chrome plating for durability, with easy disassembly at the fixed points. The motor leads are all protected by metal hoses, meeting international standards.
The static pressure of the standard coiled discharge outlet is 0~12Pa, while the static pressure of the residual pressure discharge outlet is 30Pa (or ≤50Pa), with the code H.
The water tray and insulation are molded, with an overall adhesive process, ensuring solid durability without weld marks. The design is aesthetically pleasing and lightweight, with no condensation or dripping. The exposed pipe fittings are made from sheets produced by Baosteel Shanghai, which are spray-painted for surface treatment, while the concealed pipe fittings are made from galvanized steel or fingerprint-resistant steel plates.
The coiled tubing is made by intertwining seamless copper tubes with corrugated aluminum fins, formed through hydraulic or mechanical expansion. The casing of the coil tube is lined with sound-absorbing and insulating materials. The copper tubes are arranged in an alternating pattern, offering exceptional heat transfer performance and minimal air resistance.
