Model: TL Series
Application Scope:
Highly demanded industries such as chemicals, grain and oil food, construction materials, new materials, environmental protection, food, biopharmaceuticals, fine chemicals, and metallurgy require automatic, timed, and quantitative feeding of granular, powdered, and mixed materials into hoppers, reactors, mixers, and other equipment.

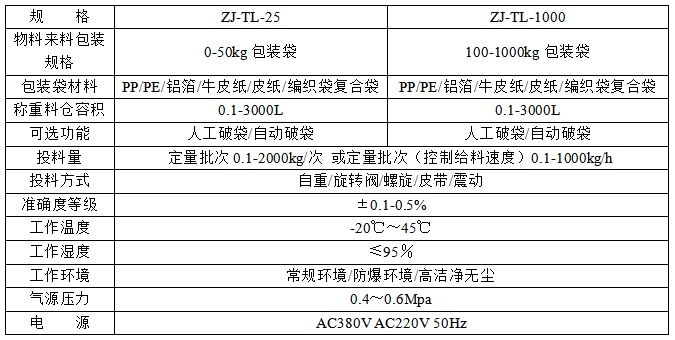

Technical Specifications:
Product Features:
Manufactured in strict compliance with FDA, GMP, and GMP standards.
2. Filters are easy to dismantle and clean, suitable for multi-product manufacturing.
3. Gas-solid separation and filtration technology, effectively prevents dust from飞扬, avoiding material waste.
4. The filter back-flush cleaning device can schedule and intelligently cycle clean the filter.
5. Fully enclosed with no leakage or cross-contamination, suitable for direct installation in a clean room.
6. The feeding platform features a user-friendly design for convenient standing operation.
7. Vibrating motor excitation force is adjustable, catering to different material requirements.
8. Directly screen materials during the feeding process, crush material blocks, and intercept foreign objects.
9. Screens are easy and quick to disassemble without tools.
10. Equipped with an electronic lock module to prevent incorrect material feeding.
11. Material level alerts prevent shortages and over-filling.
12. Self-cleaning valve function to prevent issues such as blockages, jamming, not sealing properly, or inability to open.
13. Human-machine collaboration, data storage, and connection to the host (MES) functionalities;
14. High precision and accurate feed quantity.
Designed to meet user requirements, this equipment effectively isolates dust and fines generated during the feeding process, as well as related equipment, from human contact. Under the negative pressure condition of the fan, dust is drawn into the filtration system, separating gas from material. When the material accumulates, it falls into the storage bin due to its own weight. The unit is user-friendly, with features for easy operation, observation, maintenance, and cleaning, protecting the operator's health. Made of SUS316L/SUS304 stainless steel, it is durable and long-lasting.
