Model Description: ZJ-DLG Single Screw Gravity Feeding Machine

Application Fields:

The single-screw gravity feeders are widely used for fine and coarse granular, free-flowing powders and other solid materials. They offer high-precision gravity feeding solutions, with a feeding range of 5-1200 L/hr and accuracy ≤0.01-0.05%. The feeding capacity varies according to the characteristics of the material.

Working Principle:

Utilizing servo or variable-frequency motors, the system employs weight feedback speed control to evenly feed materials through a single screw auger. It boasts high measurement accuracy, stable feeding, and a wide measurement range.

Product Features:

Compact structure, easy to clean and maintain, with an extremely low failure rate, and user-friendly operation. All stages of material handling are fully sealed, with no dust飞扬.

According to the material, single-screw loss-in-weight feeders come in various forms with replaceable screws that can be interchanged. The single-screw feeder is mounted on the K2 weighing platform by KING-CONTROL, which utilizes high-precision sensors. The weighing platform is made of stainless steel, with the stainless steel housing sealing the weighing sensors to prevent material from entering and affecting the accuracy of measurement. All parts that come into contact with the material are made of stainless steel. This feeder is easy to clean and replace components.

Technical Specifications:

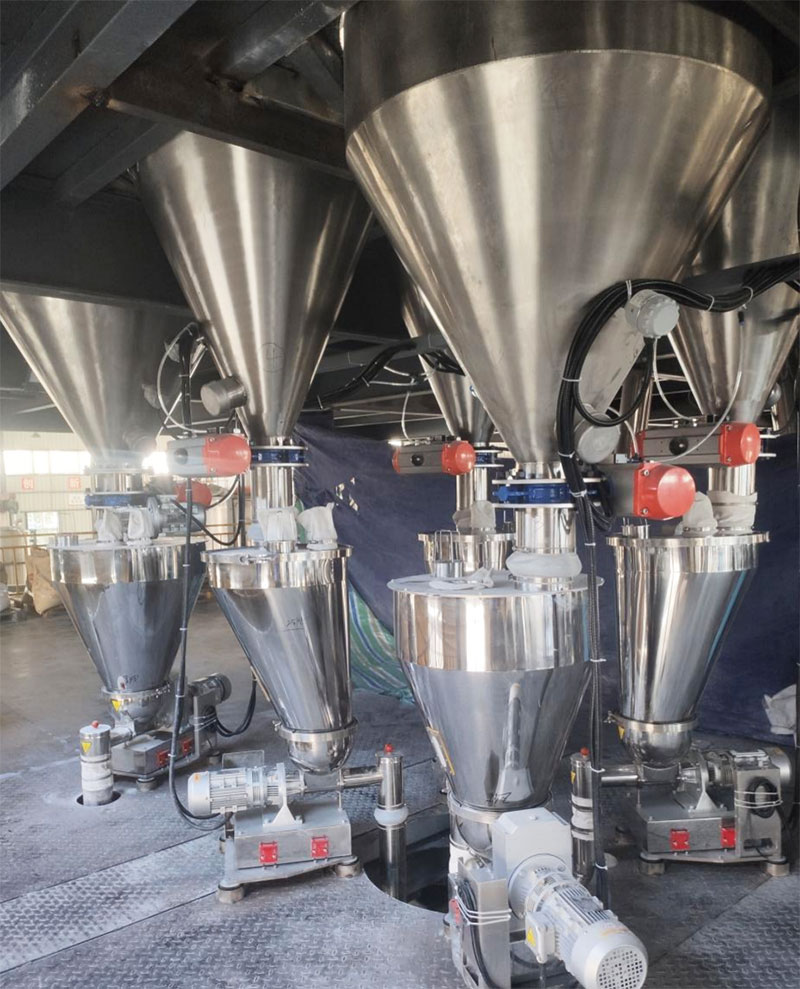

Product Real Photos:
