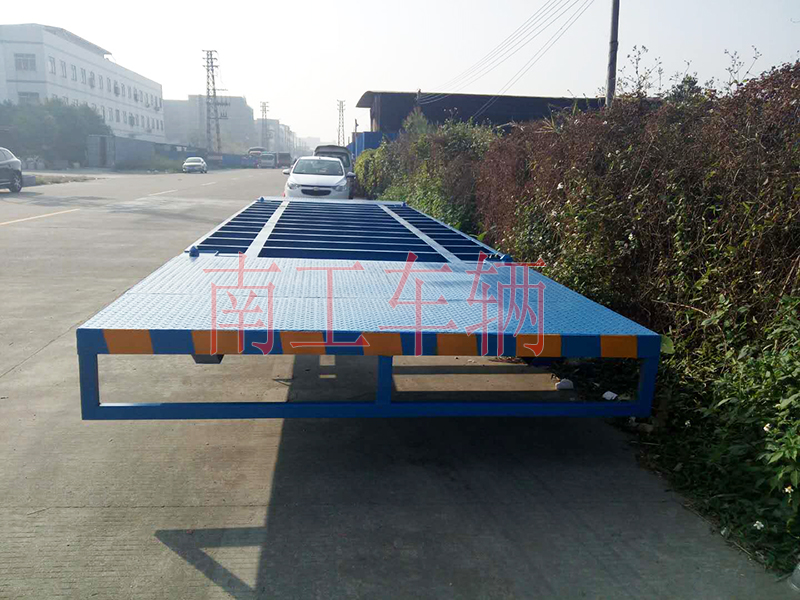

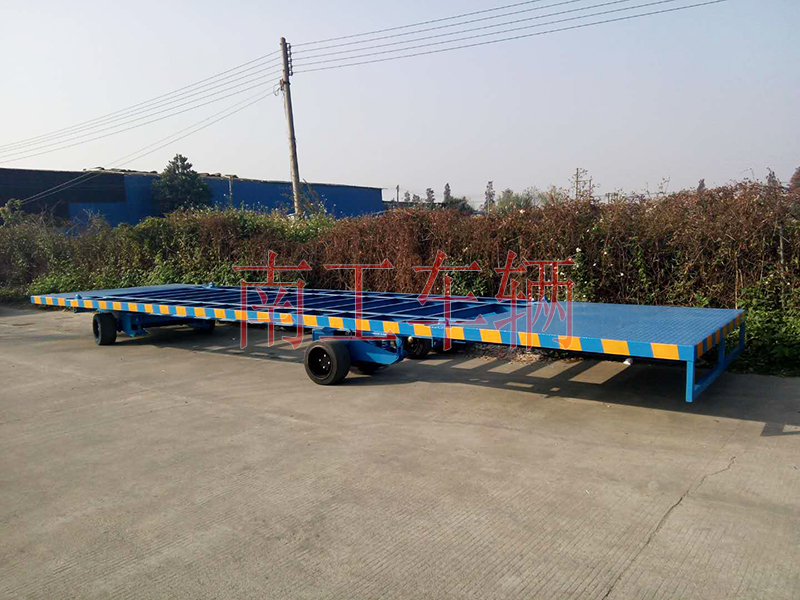

15ton2020-foot Container Flatbed Trailer

Brand: NanGong, Model: NGTT15SBM-24/90-6S, Load Capacity: 15 tons, Deck Size: 9*2.45 meters, Tires: 18*9*12/1-8, Color: Blue, Net Weight: 2800KG

15-ton container flatbed trailer detailed technical specifications:

The vehicle has a carrying capacity of 15 tons, measuring 9 meters in length and 2.45 meters in width. The main beam is made of 20# steel, while the auxiliary beam is made of 10# steel. The front 1 meter and the rear 2 meters are lined with 4MM patterned steel plate; the remaining sections are not covered with plates.

2. Tires consist of 6 solid pneumatic tires, size 18x9x12-1/8, with a single tire carrying a load of 3.2 tons and a speed limit of 10 KM/H.

3. The design concept of this vehicle is suspension-based, capable of automatically adjusting the vehicle's horizontal alignment and tire load distribution according to the road's flatness.

4. This vehicle is equipped with brakes and spring shock absorbers, comes with 4 container corner fittings (as per the scheme diagram).

5. The steering mechanism is a turntable type (15T), operates smoothly with a long service life.

6. Front wheel rotation angle is 180 degrees on each side, facilitating turns at small radii.

7. Color: Blue with yellow warning stripes around the edges.

15-ton 20-foot container flatbed trailer, custom made by Foshan Nan Gong, tailored to customer requirements. High-quality and competitive pricing. Suitable for heavy mobile equipment and container trailer chassis, can be towed by forklifts, tow trucks, and trucks. Optional two-way towing without the need for reversing.

Application: Suitable for containers, ports, airports, workshops, warehouses, and factories.
