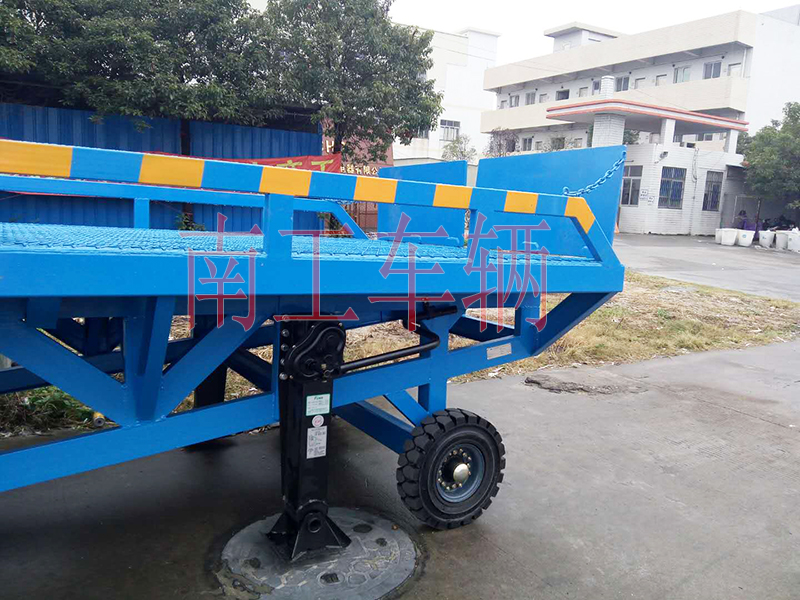

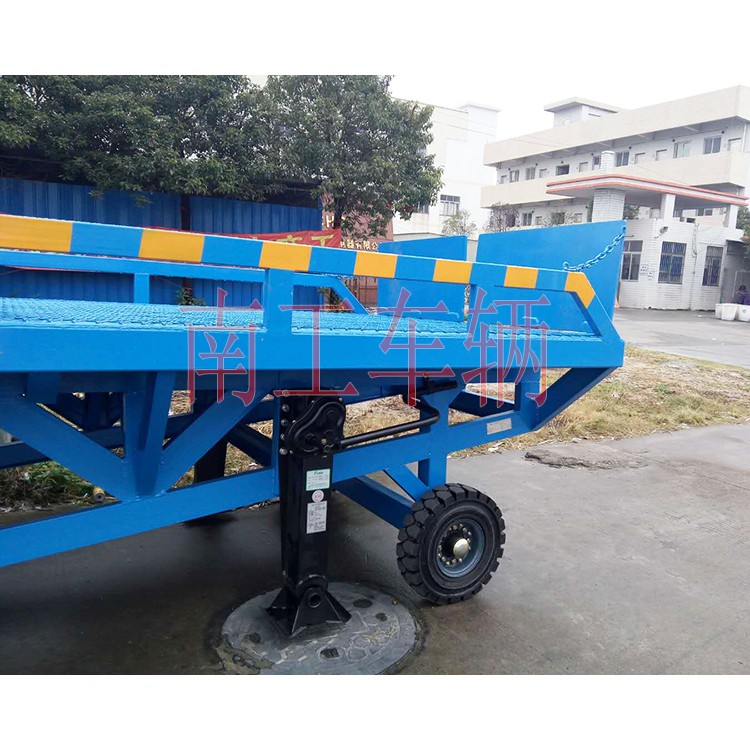

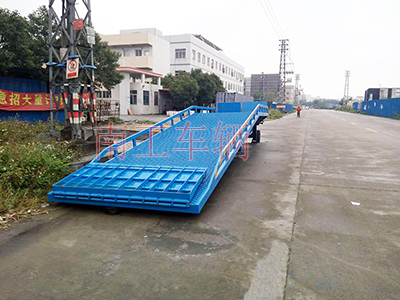

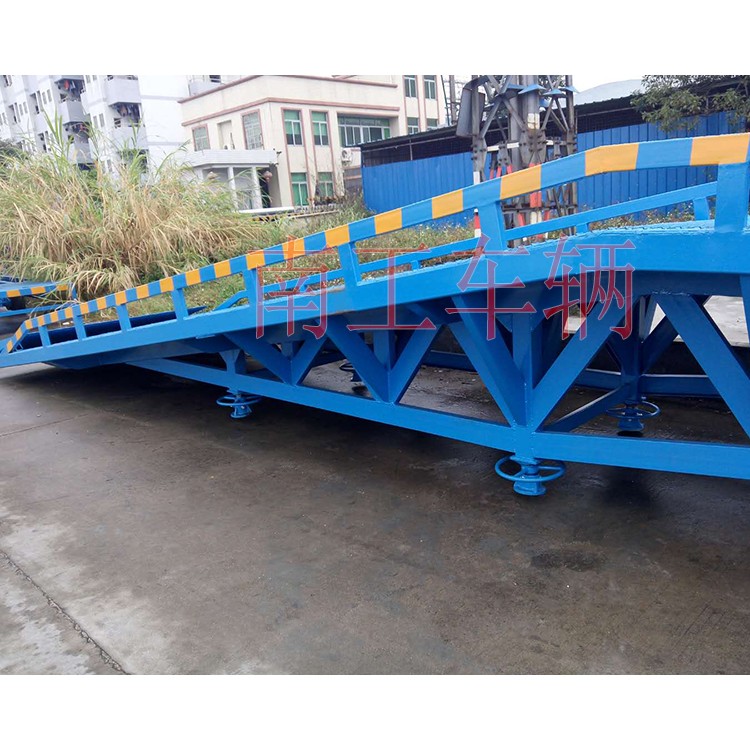

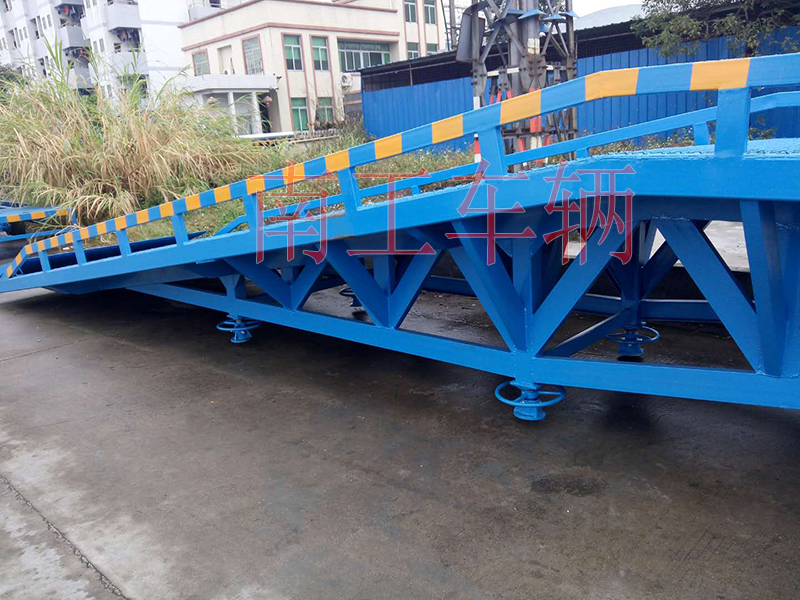

16TPortable Boarding Bridge

Brand: NanGong, Model: NGRAT16M-120/22-2S, Load Capacity: 16T, Dimensions: 12*2.2 meters, Color: Blue, Net Weight: 2980KG

16T Mobile Boarding Bridge Detailed Specifications:

The boarding bridge has a load capacity of 16 tons, a total width of 2.2 meters, and a total length of 12 meters (deck platform: 3.5 meters, ramp: 7 meters, front transition plate: 0.5 meters, rear transition plate: 1 meter). It stands at a height of 1.5 meters, featuring a main beam made of 25# steel structure, auxiliary beams made of 12# steel structure, guardrails made of 8# steel structure, a deck lined with 5MM thick steel plate and diamond pattern anti-slip mesh. The overall weight of the unit is approximately 2.98 tons.

2. Two 600-9 solid tires included, with a set of mechanical jacks for semi-trailers, adjustable between 1200MM and 1650MM in height.

3. Process: Welded with CO2 protection.

Color: Blue.

The Nangong 16-ton Mobile Boarding Bridge is equivalent to a mobile steel ramp, allowing forklifts to directly drive into the truck's cargo area for bulk loading and unloading operations. It can be operated by a single person without the need for power sources, ensuring safe and quick loading and unloading of goods. In logistics sites where there are no loading and unloading platforms, the mobile boarding bridge is a very suitable option. It is safe, sturdy, and cost-effective.

Application: 16T Mobile Boarding Bridge custom-made by Foshan Nan for years, professionally designed for sites without loading/unloading platforms or where mobile loading/unloading is required.
