Categories and Uses
Injection molding machines have the capability to produce complex-shaped, dense, plastic products with intricate dimensions or metal inserts in a single molding process. They are widely used in various fields including mechanical and electrical engineering, automotive, transportation, construction materials, packaging, agriculture, cultural and educational health, and people's daily lives. With the rapid development of the plastic industry, injection molding machines hold a significant position in both quantity and variety, accounting for 20% to 30% of the total plastic molding equipment production, making them one of the fastest-growing and most produced types of plastic machinery. According to relevant statistics, from 1996 to 1998, China exported 8,383 units of injection molding machines and imported 42,959 units. In 1998, the production of injection molding machines in China reached 20,000 units, with their sales revenue accounting for 42.9% of the total plastic machinery sales revenue.
Injection Molding Machine
Injection Molding Machine
There are numerous plastic injection machine manufacturers in China, with an estimated number exceeding 2,000. The machines come in two structural types: vertical and horizontal. They are categorized into standard and precision models based on the products they produce.
Key Operations
Before powering on
Before operating the injection molding machine, check if there is any water or oil in the electrical control box. If the electrical components are damp, do not start the machine. A maintenance person should dry the electrical parts before starting the machine.
Before operating the injection molding machine, check if the supply voltage is within the correct range, generally not exceeding ±6%.
Injection Molding Machine Operation
Injection Molding Machine Operation
Check the emergency stop switch and the front and rear safety door switches for proper operation. Verify that the motor and oil pump rotate in the same direction.
4. Check if all cooling pipes are clear for long-distance transport, and fill the cooling water into the oil cooler and the cooling jacket at the cylinder end.
Before operating the injection molding machine, check for lubrication on all moving parts and ensure it is adequately lubricated.
6. Turn on the electric heater and heat each section of the barrel. Once the temperatures reach the required levels, maintain the heat for a period to stabilize the machine's temperature. The holding time varies depending on the equipment and the plastic material used.
7. Ensure the hopper is adequately filled with plastic. Some materials are dried first, depending on the requirements for different types of injection molding plastics.
8. Ensure the insulating cover on the cylinder is properly sealed. This will save electrical energy and also prolong the lifespan of the electric heating coil and the current contactor [1].
Operation Process
Do not arbitrarily cancel the function of the safety door for the sake of convenience.
2. Keep an eye on the temperature of the hydraulic oil; ensure it does not exceed the specified limits. The ideal operating temperature for hydraulic oil should be maintained between 45-50°C, generally within the range of 35-60°C is more suitable.
3. Mind adjusting the行程switches to prevent the machine from impacting during operation.
Work completed
After the injection molding machine operation is complete, the plastic inside the barrel should be cleaned thoroughly to prevent leftover material from oxidizing or decomposing over a long period due to heat.
2. The mold should be opened to lock the arm mechanism in the closed position.
3. The workshop must be equipped with lifting equipment. Extreme care should be taken when assembling and disassembling molds to ensure production safety.
Color Injection Molding Machine
The color is the same as the one we commonly see. Many toys, military enthusiast products, and outdoor equipment have their plastic parts surface dyed, often achieved through secondary printing, transfer watermarking, and coating processes, which are costly and complex. TongHai injection molding machines can simplify the process. They don't require secondary surface finishing and can produce a single-shot molded product using the old molds directly on the machine. Just place different colored plastic materials (like green, earth, brown, and slate gray, etc.) in different feed hoppers, and through the machine's co-injection design, inject the colored plastic materials simultaneously to achieve the color effect.
Specs: HYM60, HYM90, HYM130, HYM160, HYM180, HYM260, HYM360, HYM450, HYM620, HYM750, HYM800, HYM950, HYM1200

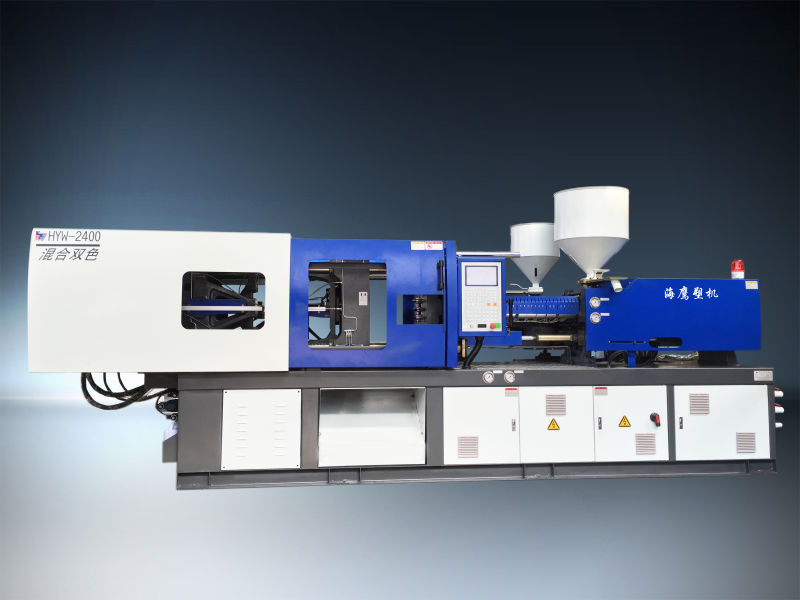

Dual-color injection molding machine
A mixed-color injection molding machine uses two different colored plastic materials, injected into the mold through a shared nozzle via two separate systems, achieving a co-existence effect of two or three colors in plastic products. In recent years, with the economic development of society and the improvement of living standards, there has been an increasing demand for plastic products and more diverse requirements for plastic types, particularly a growing demand for mixed-color plastic products. Many traditional dual-color plastic production processes involve different colored raw materials, where the two parts (soft and hard) are processed separately by two separate injection molding machines without communication. After injection, these parts are assembled manually, which is costly in labor, has low production efficiency and automation, and lacks an effective system, no longer meeting the needs of modern production. The mixed-color injection molding machine is mainly designed for existing molds in factories or to save investment, featuring new production processes and hardware design for the injection molding machine. Just one mixed-color injection molding machine can produce plastic products with mixed dual-color effects.
Specs: HYW-68, HYW-98, HYW-138, HYW-168, HYW-208, HYW-288, HYW-368, HYW-428, HYW-528, HYW-630, HYW-728, HYW-850, HYW-1100
