Lianyungang Ji'an Tai Machinery Co., Ltd. offers the Full-Contact Liquid蜂窝 floating deck, an energy-saving and environmentally friendly device covering the liquid surface that rises and falls with the liquid level in the tank due to buoyancy. It boasts high safety, energy saving, environmental protection, stable operation, and easy construction. The tank's installation of the floating deck seals the stored medium, reduces the medium's temperature to save energy and protect the environment. Widely used across China in petrochemical units, and among major oil companies like Sinopec and CNPC.

Refineries, ports, and terminals.

Primarily used for storing gasoline, coal oil, and diesel.Petroleum EtherIn high-volatile fluid storage tanks such as chemicals. Eliminates oil and gas vapor space, effectively isolates oil and gas vapor, with very evident safety and environmental benefits. Energy-saving effect reaches over 99%, and simultaneously addresses the potential safety hazards in the production and use of buoyant float disks. It significantly reduces the probability of major safety accidents such as static discharge, lightning strikes, and fire explosions. It also prevents situations like collapse, overturn, sinking, and seal failure.

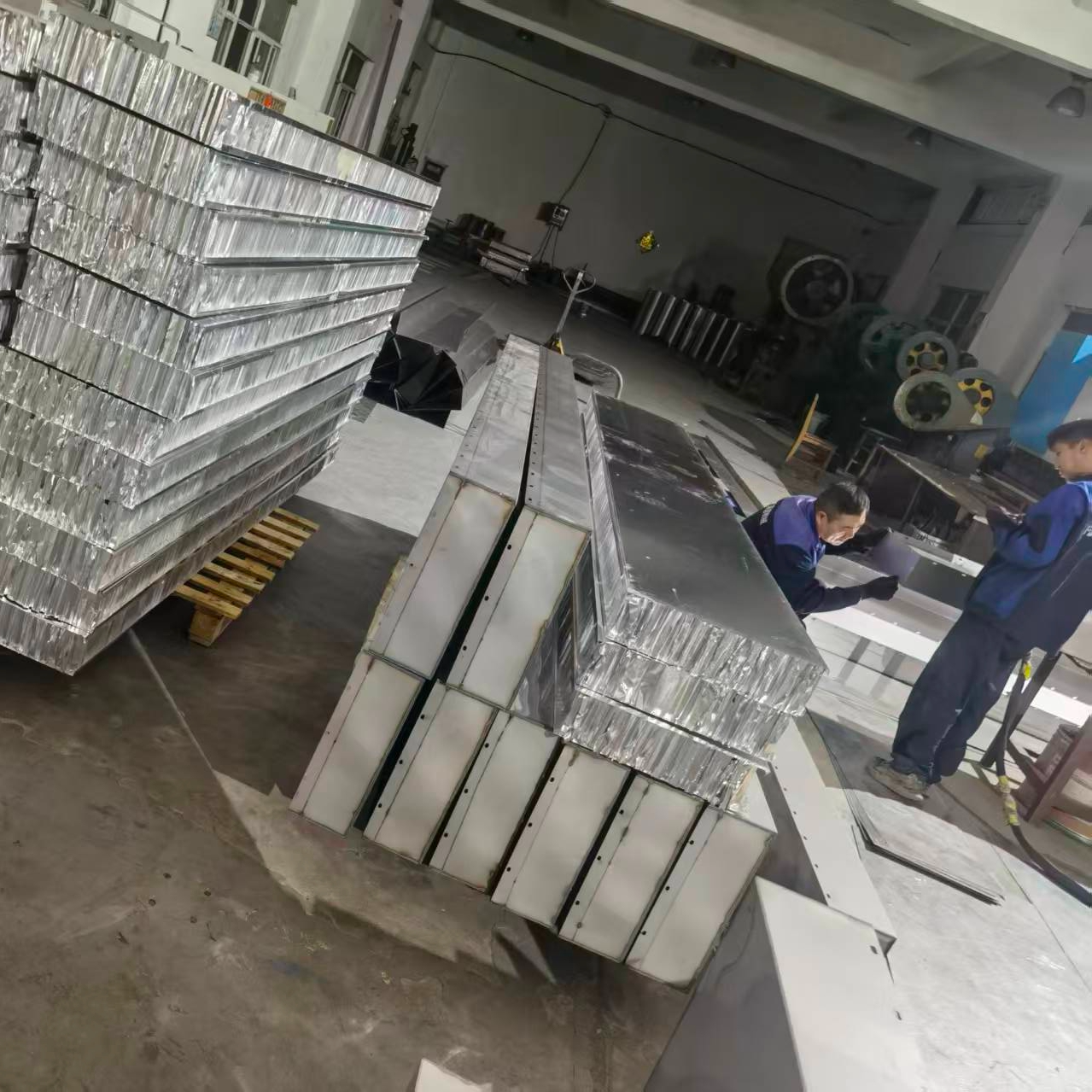

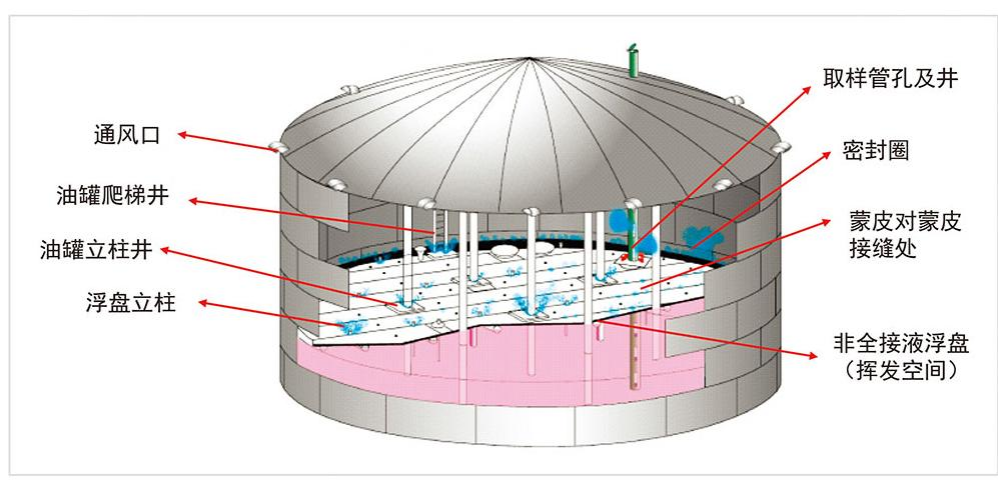

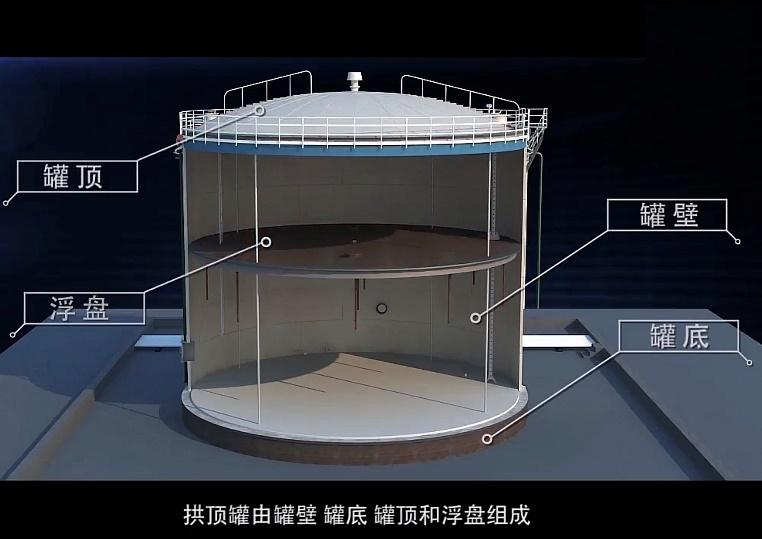

Can Container Construction

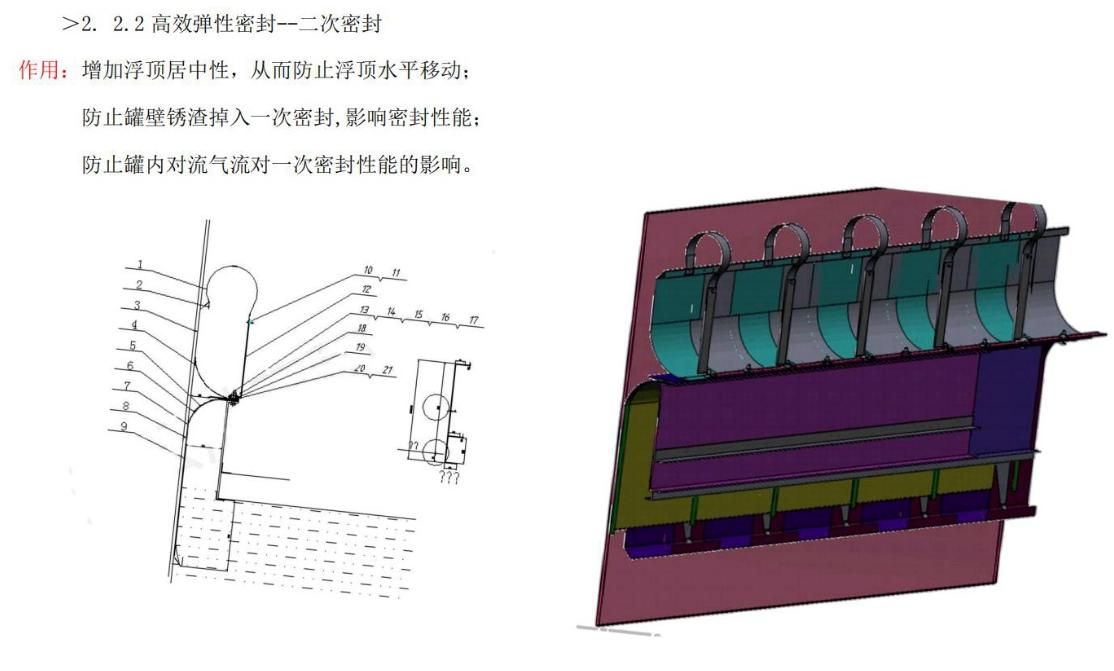

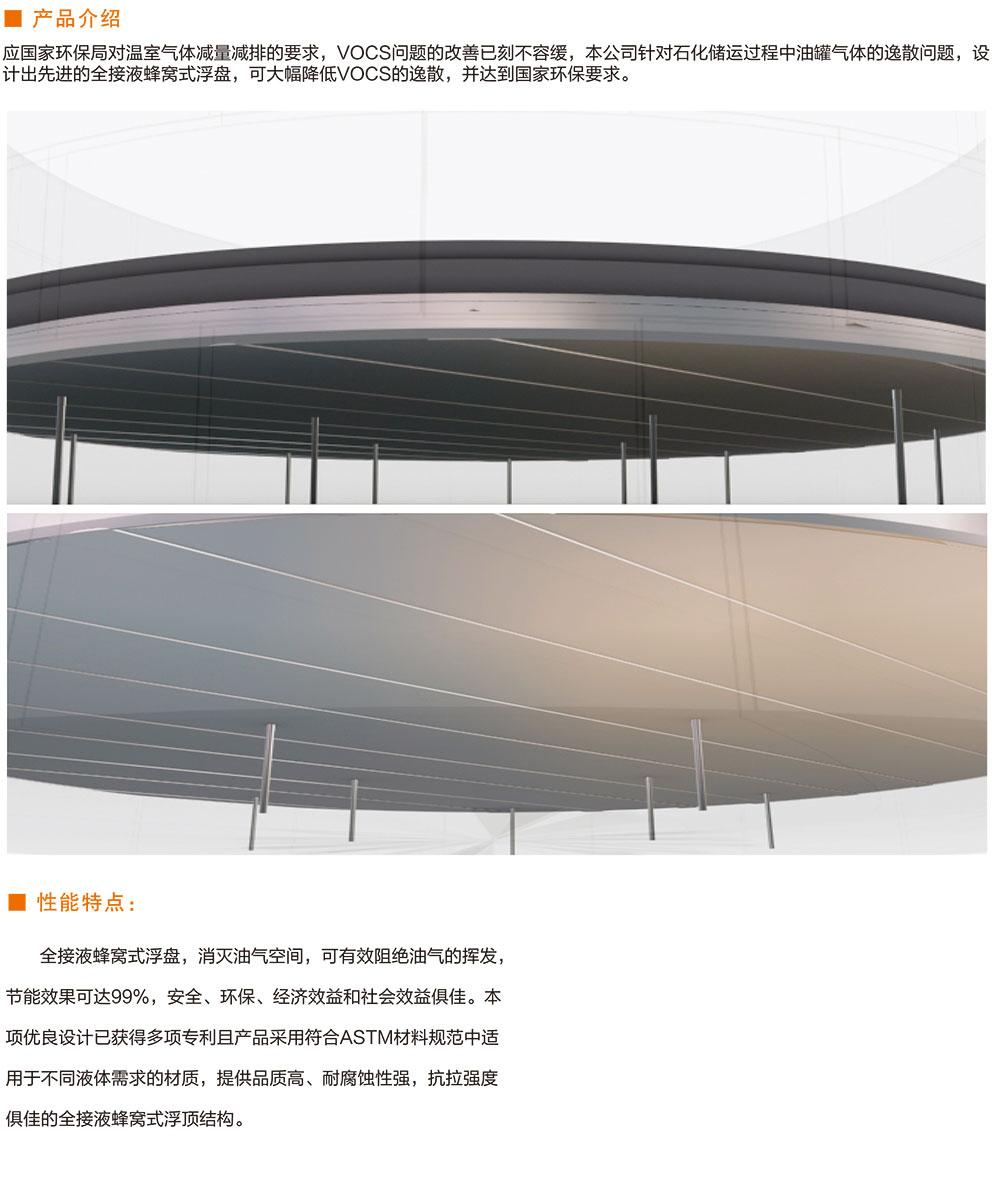

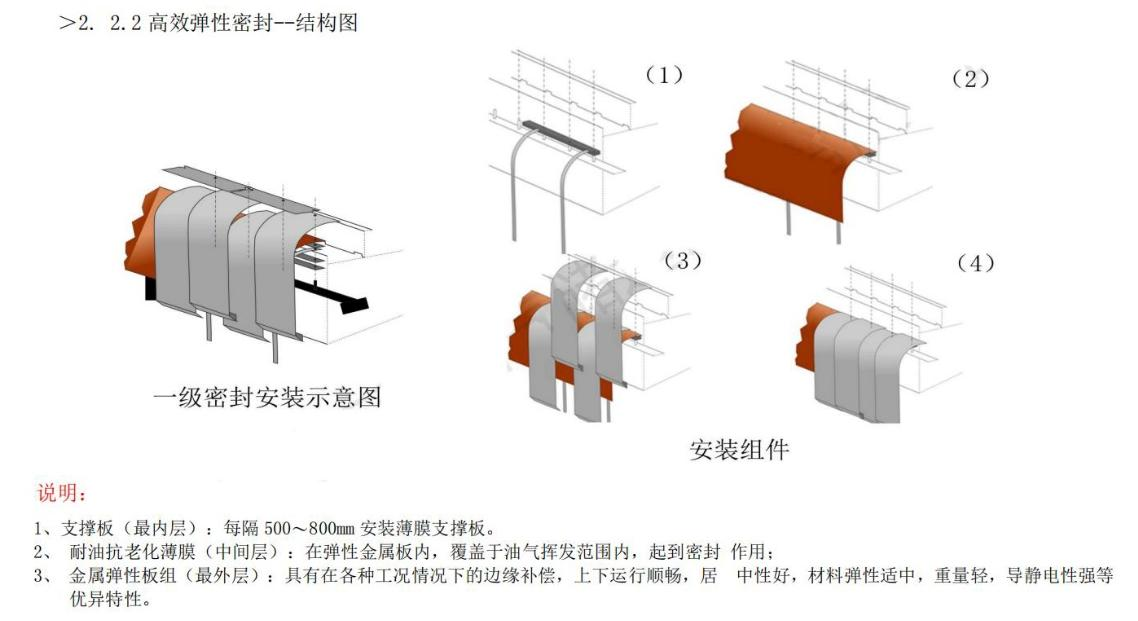

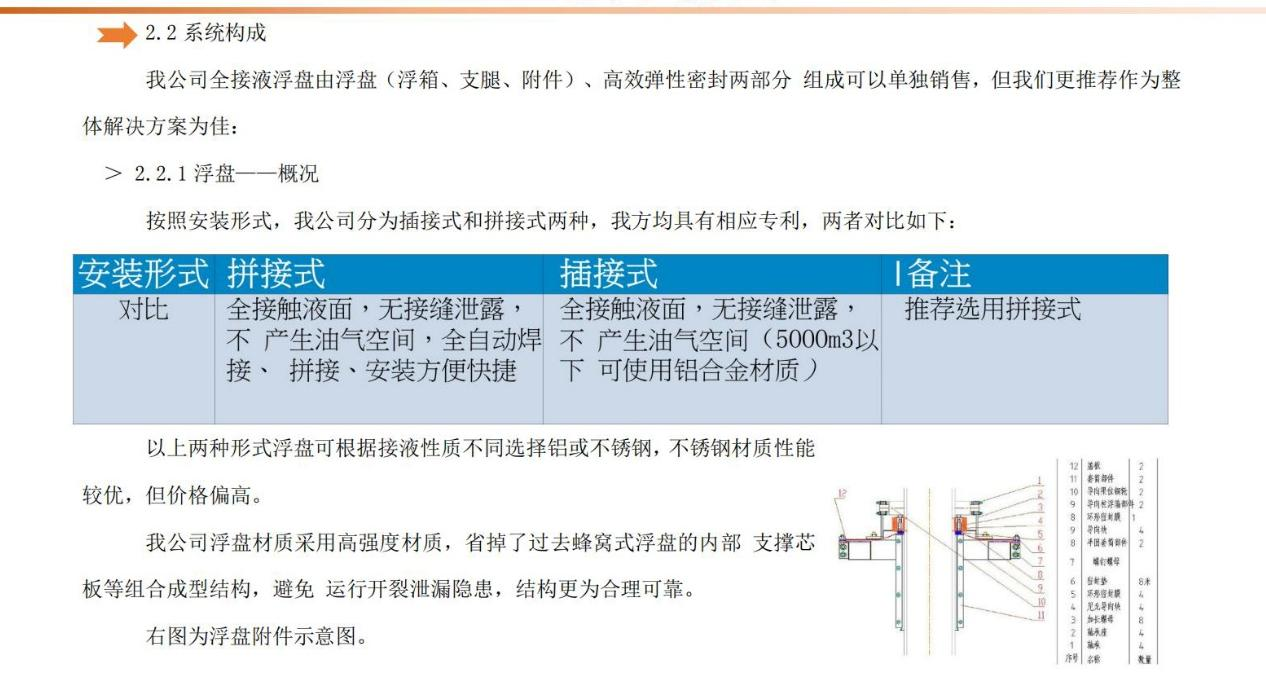

Full-contact floating disk structure

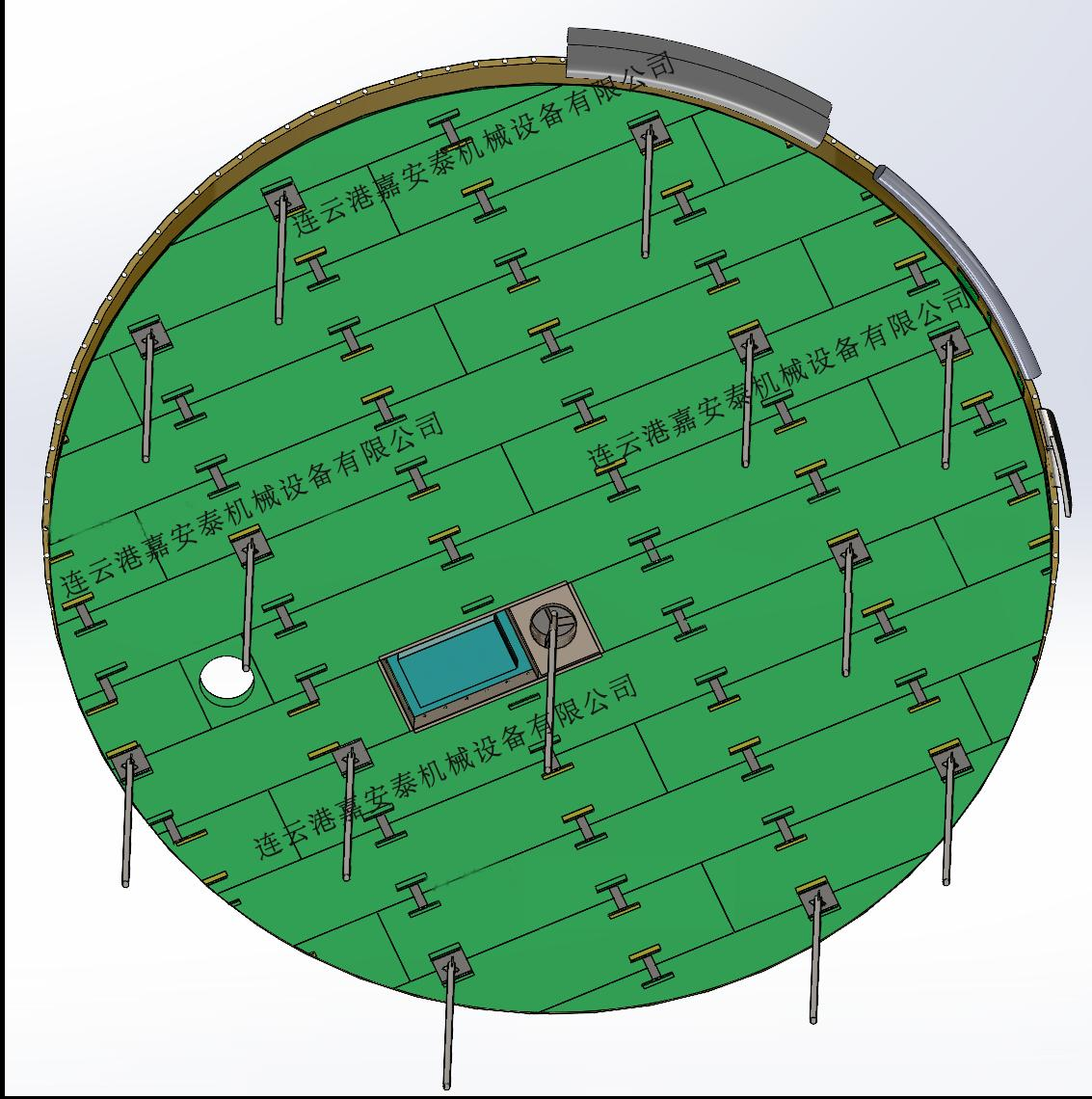

Full Contact Floating Disk Top View

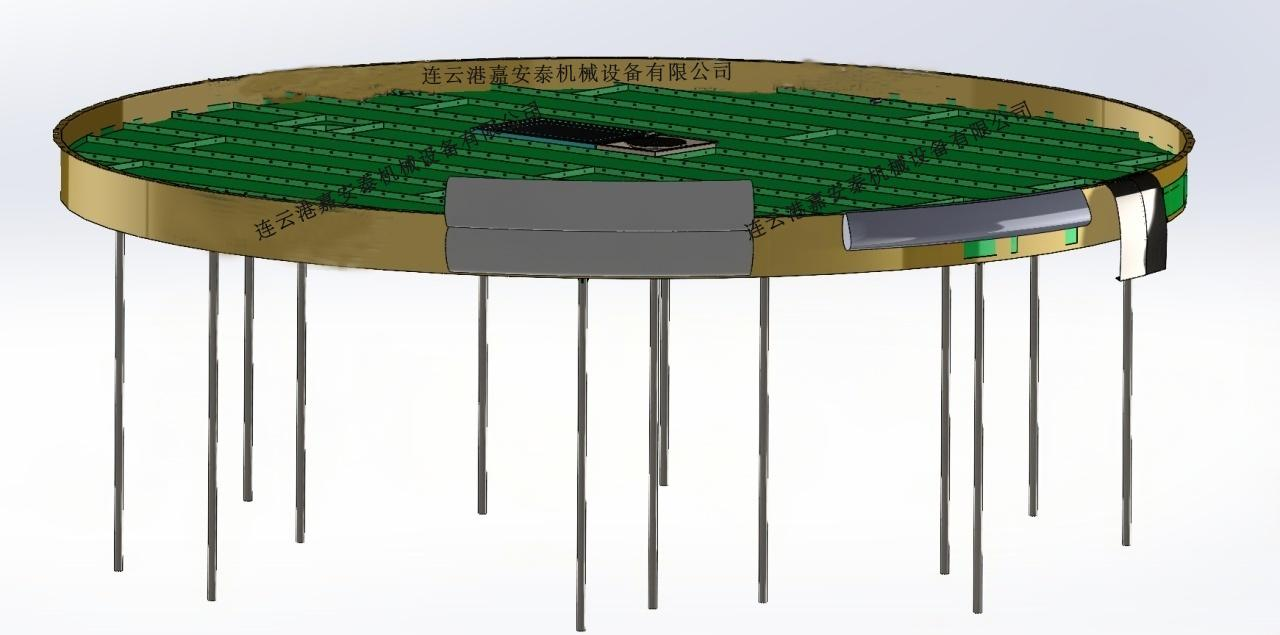

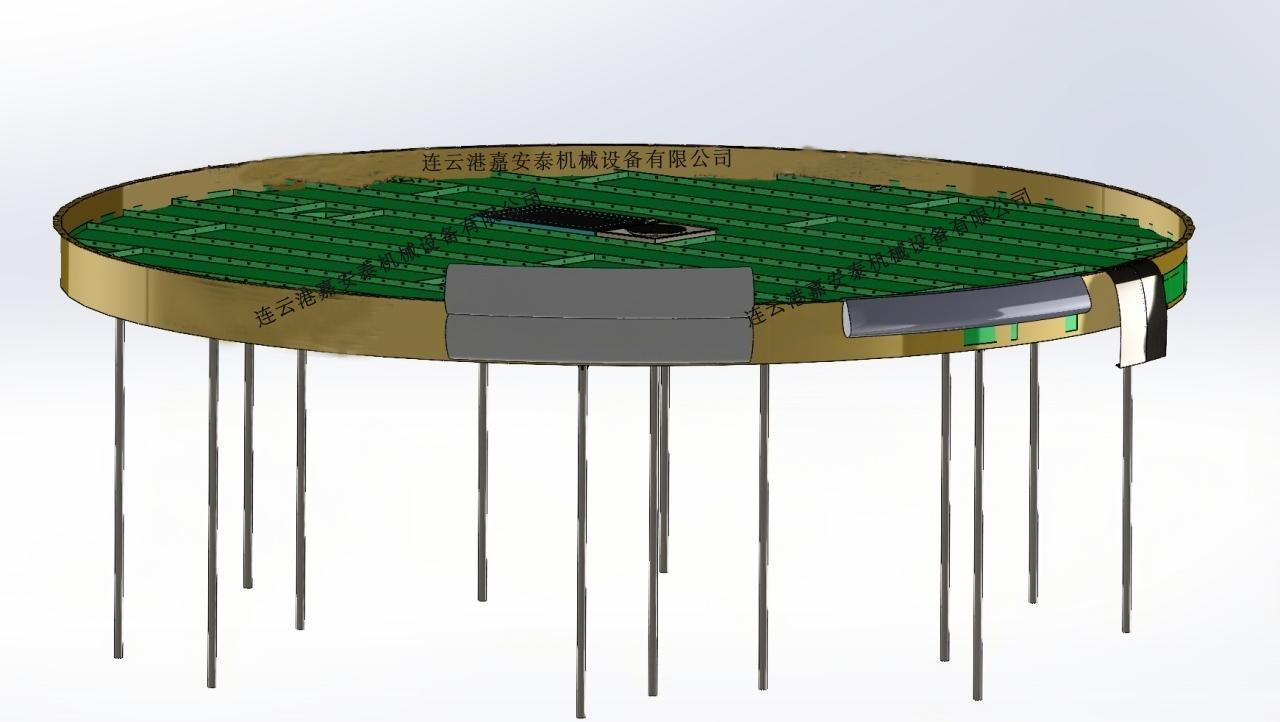

Full-contact Floating Plate Side View

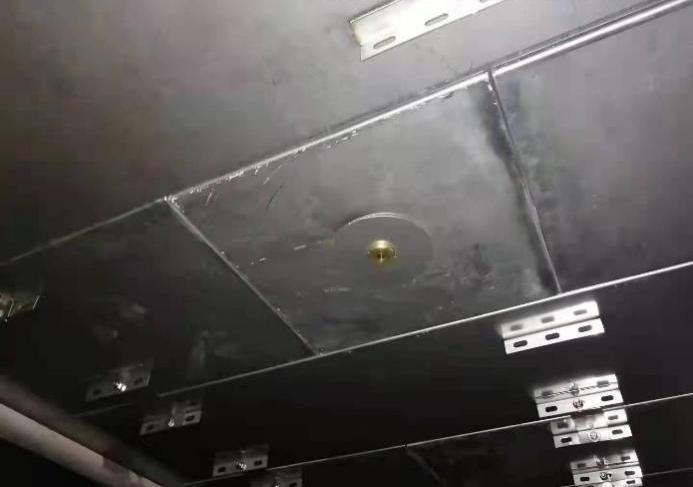

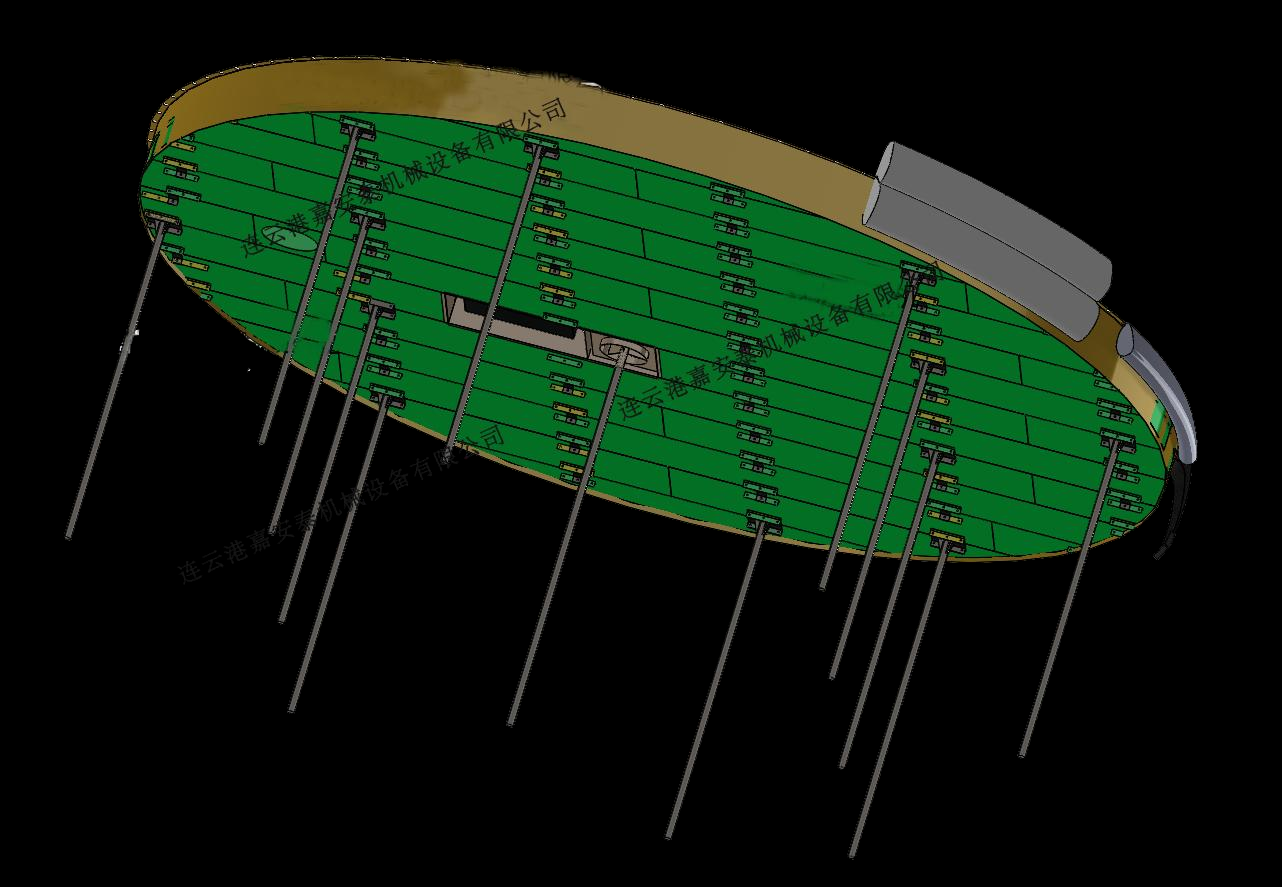

Full Contact Floating Plate Bottom Diagram

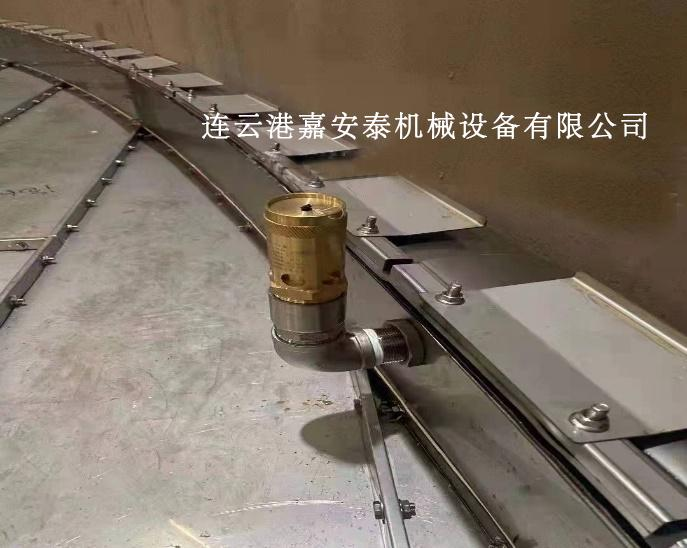

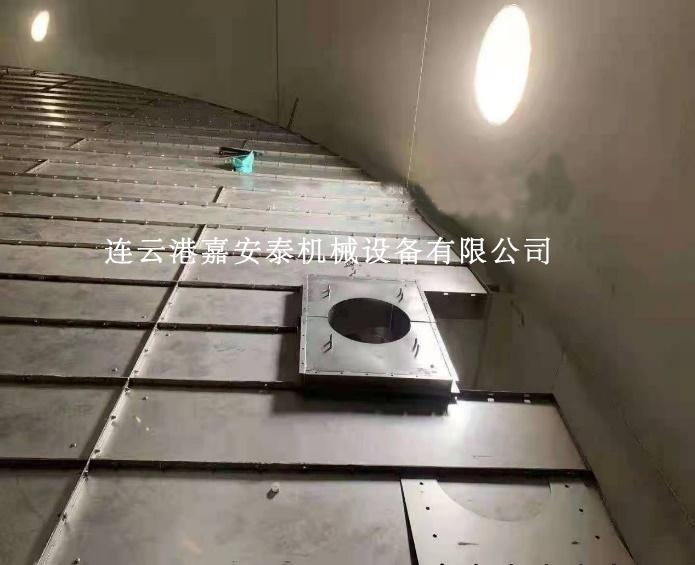

On-Site Case Studies
