Introduction

Some powdered materials have poor flowability and require the use of auxiliary flow equipment such as air cushions, pneumatic hammers, and impact hammers, even possibly using an air cannon for flow assistance. In such cases, an activator hopper is the ideal auxiliary flow and discharge equipment for handling these materials.

Principles and Functions

An elastic sealing component is added between the storage bin and the conical part, which is connected to the bin and the conical part via top and bottom flanges and springs. A vibration motor is installed on the conical part, and a pressure-reducing cone is set inside to ensure the material inside the conical part is relatively loose. When the activated feed hopper is in operation, it generates a rotational motion, which is then transmitted to the silo.

Material inside. This allows the material to smoothly pass through the activation hopper and into the feeding equipment connected below. The activation hopper has various industrial applications, used to discharge powdered or granular materials from silos or hoppers. The use of the activation hopper ensures the consistency of feeding and creates a "high flow rate" within the silo.

Prevents material caking and rodent holes simultaneously.

Features

Silent

Minimal noise from the vibration motor, eliminating loud noises from air hammers, pneumatic vibrators, etc.

(2) Sanitation

No compressed air enters the material interior, ensuring the material is not contaminated.

Efficient

Enhanced feeding performance due to the activated flow aid effect;

(4) Maintenance-free

No components with high impact force.

The extended lifespan of the equipment itself

The material warehouse itself is undamaged.

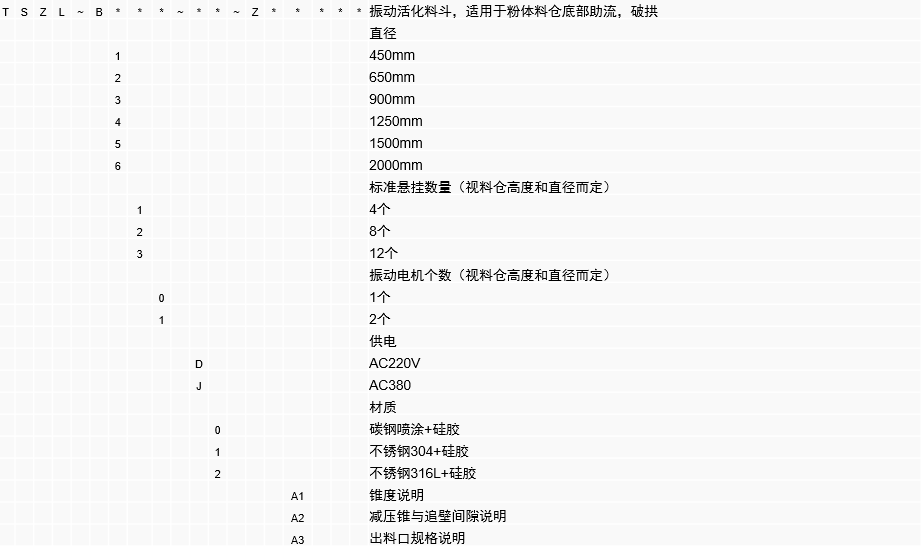

High Applicability – Rich in Optional Features

Material

Carbon Steel Coating

Stainless Steel 304

Stainless Steel 316L

Diameter

Ø 450MM - 2,000MM available

Process accessories

Vacuum Conveying Adapter

Spiral Conveyer Adapter

Selection

Applied

On-site
