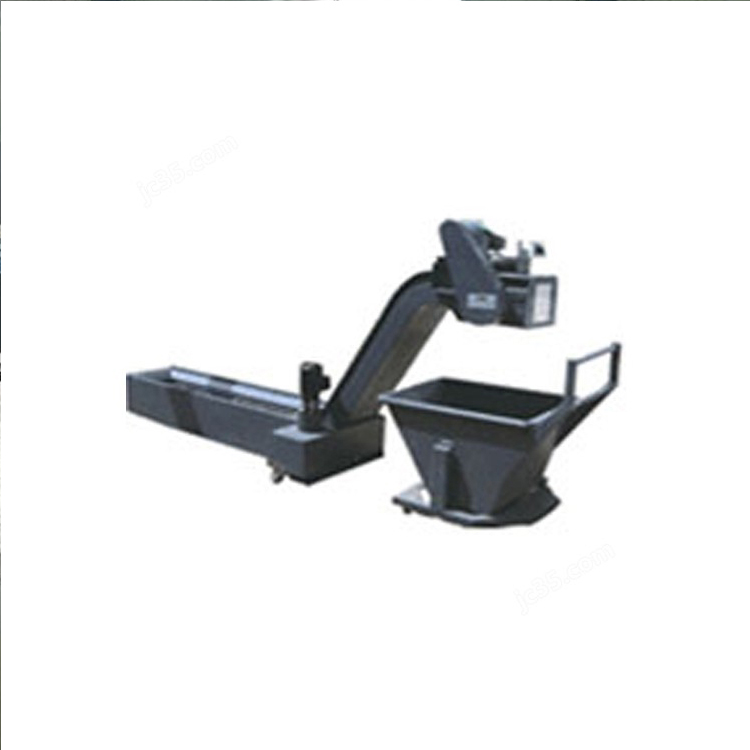

The scraper chip conveyor offers a wide range of conveying speed options, high work efficiency, and diverse effective chip removal widths, providing an ample selection range.
Numerical control machine tools, machining centers, grinding machines, and automatic production lines. They perform well in handling metal abrasive particles and grains in grinding processes, as well as dealing with aluminum shavings in the automotive industry.
The scraper features specially designed chains on both sides, with the height and spacing of the屑板 (屑板) customizable, ensuring smooth transmission, a compact structure, and high strength.
And can be customized with steel mesh backflush, chip scraper, eddy current separator, oil-water separator, etc., to form a comprehensive filtering system, enhancing product surface processing accuracy, and saving coolant.
Reducing labor intensity for workers is a widely used auxiliary device for machine tools.
Key Features of Chip Conveyor:
1. Chain scraper conveyors are suitable for transporting chunky crushed or powdered chips, but are not suitable for conveying chips with fibrous long strips, as this may lead to chip entanglement around the chain.
2. The scraper chip remover can be optionally equipped with a timer relay to intermittently operate the reduced-speed motor when scraping chips from the water tank, for better water control.
Additional magnets can be selected at the bottom of the scraper chip conveyor to accelerate iron chip sedimentation, and a refrigeration unit can also be added to control the coolant temperature.
3. Due to the structural limitations of the scraper chip conveyor, it is necessary to prevent a large amount of chips from entering the conveyor during machine tool cleaning, which could cause the upper and lower scraper blades to mix with a large quantity of chips, leading to malfunctions.
4. The die forging detachable chain scraper is particularly suitable for centralized disposal of chips or powdered debris in machine processing workshops. The detachable chain features a certain degree of freedom, is not prone to jamming, and is easy to install, making it widely used internationally.
5. Available in two types: roller conveyor chains and forged detachable chains. The roller conveyor chains are differentiated by pitch, with options of 31.75 and 50.8, while the forged detachable chains have a pitch of 76.6, widely used internationally.
