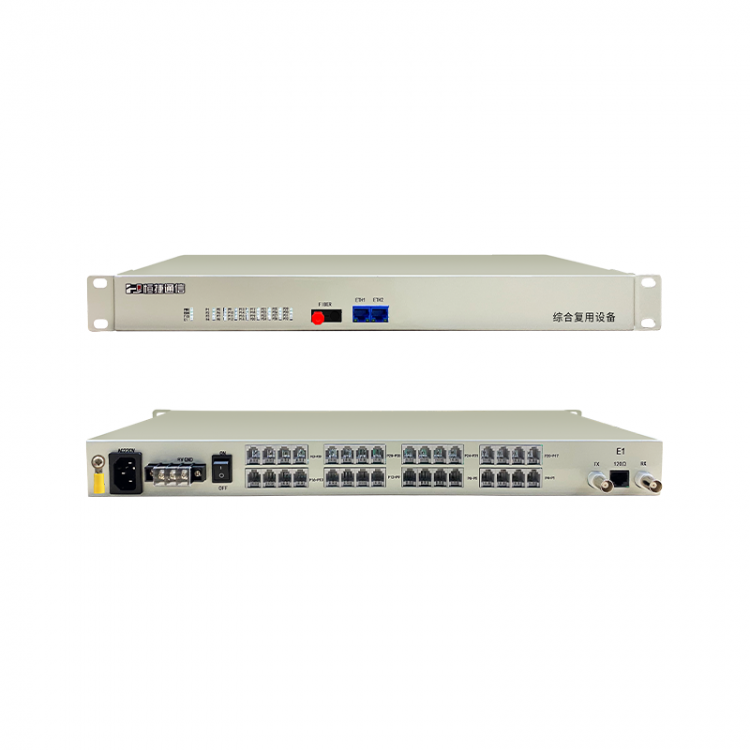

The HJ-A2010C series of multiplexing equipment is designed for access to both traditional TDM services and broadband IP data services. It supports transmission via E1 channels or fiber optic channels and offers 32x64K user services. User services include voice, Ethernet, and more.

Product categories are diverse, economic, and concise; offering quick and flexible solutions for relatively scattered users, small businesses, or users in need of temporary capacity expansion.

The product offers excellent value for money.

Features:

1. Utilizes FC (default) optical interface, optional SC interface; When connected via E1, the interface can be connected in either unbalanced (75 ohms) or balanced (120 ohms) modes.

2. Suitable for ≤32-user business

3. Modular system design; customizable configuration of various functional business modules according to user requirements.

4. Configure FXO/FXS/Ethernet and more according to customer requirements

High cost-performance, attractive design, easy installation and operation

6. Telecommunications-grade voice quality, with caller ID support; Reverse polarity billing signal (optional)

7. Offer comprehensive alarm and operational status indicator lights

8. Strong anti-interference ability, stable performance, comprehensive functions

9. Power supply options: AC220V or DC-48V (optional)

10. Features comprehensive network management functions, real-time detection of various device operating states (optional)

11, 19-inch 1U enclosure

12. Dimensions: 485(L) x 200(W) x 44(H) mm
