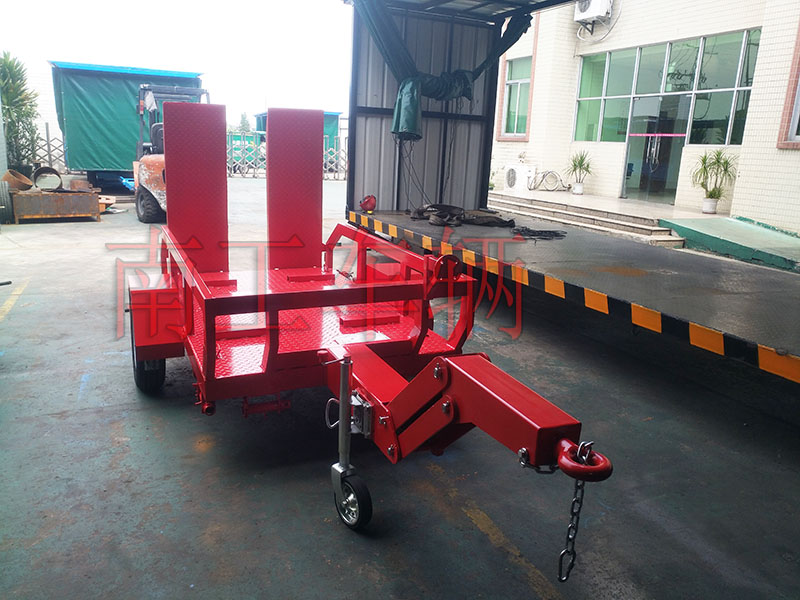

0.5-ton flatbed fire truck with ladder access
Brand: Nangong, Model: NGTT005FM-13/22-2H, Load Capacity: 0.5 ton, Plate Size: 1.3*2.2 meters, Color: Fire Red, Net Weight: 480KG.
0.5-ton fire truck with ladder platform trailer detailed specifications:
This vehicle has a carrying capacity of 0.5 tons, designed to transport tracked fire fighting robots. The deck is 1.3 meters wide and 2.2 meters long, with the main beams made of 12mm manganese alloy I-sections, and the deck is covered with 4mm thick patterned steel plates.
2. Two 165/70/13 tires inflated.
3. Each side of the vehicle is equipped with 3 rope tensioners and tie-down hooks, and inside the cargo area, four 350MM long No.8 channel steels are welded for track limitation.

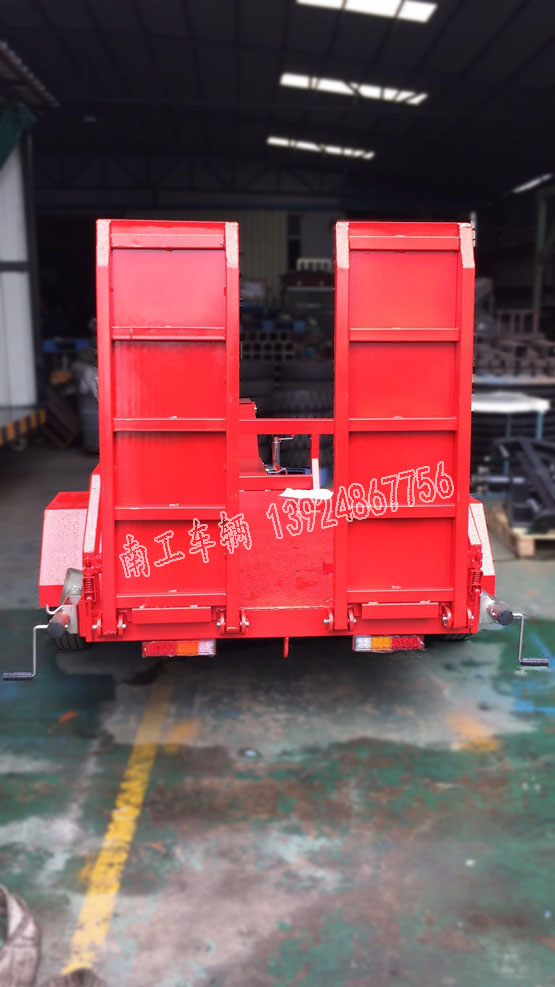

4. Equipped with a set of boarding ladders at the rear of the vehicle for easy climbing on and off the tracks, with a rotating support leg on both sides of the ladder to prevent the tracked vehicle from tilting backward when getting on or off the trailer, and fixed guardrails on the front, left, and right sides.
5. The trailer frame is designed for adjustable height, with a range of 700~900MM, suitable for different height trailers.
6. Rear with brake light, equipped with a seven-star quick connector, and a safety chain.
7. Provide one connector and plug, weld 3 vehicle hooks on both sides of the body.

8. Color: Fire Engine Red.

0.5-ton flatbed trailer with ladder for fire trucks, professionally custom-made by Nangong Vehicle, air-filled tires, fire engine red, exquisite appearance, safe and durable. Application: Small-tonnage flatbed trailers are generally used for light industries such as small appliances, furniture, and printing products. In industry, solid tires are commonly used. This trailer is specifically designed for fire trucks and features air-filled tires.
