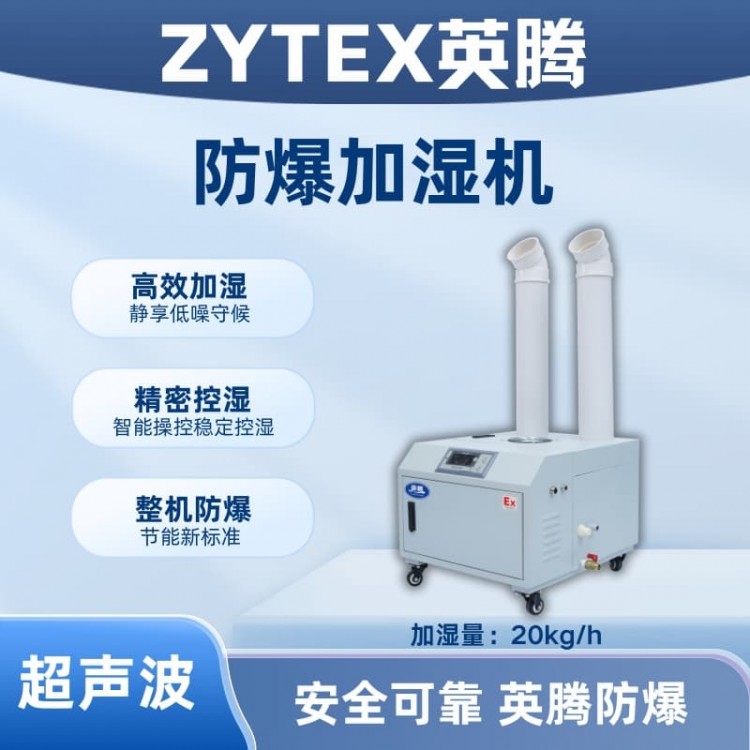

BJS-20(CS) Explosion-proof Ultrasonic Humidifier

Model: BJS-20(CS)

Brand: YingTeng

Power: 2100W

Power Supply: 220V~50Hz

Aerosol Particles: <10 micrometers

Net Weight: 62 kg

Humidification Capacity: 21 kg/h

Circulating Air Volume: 760 m³/h

Number of exhaust outlets: 3 x 110mm

Rated Input Current: 9.6A

Dimensions (mm): 650x780X520

Explosion-proof marking: Ex db ib IIB T4 Gb

Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only; the actual product should be used as the standard.

Inten Explosion-Proof Humidifier, Explosion-Proof Mark: Ex db ib IIB T4 Gb

YingTeng Explosion-Proof HumidifierThe listed products comply with the following execution standards:

GB/T 3836.1 - 2021 "Explosive Atmospheres *1 Part: Equipment General Requirements"

GB/T 3836.2-2021 "Explosive Atmospheres - Part 2: Equipment protected by隔爆外壳 'd'"

GB/T 3836.4 - 2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"

GB/T 3836.15-2017 "Explosive Atmospheres Part 15: Design, Selection, and Installation of Electrical Equipment"

Yinteng Explosion-Proof HumidifierOperates normally under the following environmental conditions:

a) Altitude not exceeding 2,000m.

b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free of corrosive gases.

c) There are explosive hazard areas formed by mixtures of flammable gases, vapors, and air, from Group II A, II B, and T1 to T4 groups.

YingTengExplosion-proof humidifierSeries models have been processed with special explosion-proof technology, suitable for widespread application in flammable and explosive areas of Zones 1 and 2, and are widely used in scientific research, oil, chemical industry, medicine, power plants, and other locations where there may be or could be hazardous explosive mixtures of II A, II B groups T1 to T4 combustible gases, steam, and air.Explosion-proof HumidifierSuited for locations with temperature requirements.Explosion-proof HumidifierInspected and certified by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center with explosion-proof and CCC certification; featuring an aesthetically pleasing design, reasonable structure, and easy installation and maintenance, the full range of productsExplosion-proof HumidifierInternally equipped with brand-name compressors, microcomputer intelligent control, digital display, featuring low noise, stable performance, simple operation, and safety reliability, it is highly favored by the market. (Customizable:Explosion-proof ultrasonic humidifierExplosion-proof wet film humidifierExplosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioning units, explosion-proof multi-split air conditioning units, etc.

Yinteng Explosion-proof UltrasonicHumidifier Working Principle:

The ultrasonic industrial humidifier employs electronic ultra-frequency oscillation (oscillation frequency of 17MHz) to create a natural,飘逸 water mist by the high-frequency resonance of the atomizing plate, propelling water away from the surface without the need for heating or chemicals. This produces 1-5 micron water particles floating in the air, thereby increasing the relative humidity of the atmosphere.

Yinteng Explosion-proof UltrasonicHumidifier Usage Conditions: Environmental Temperature: Normal operating temperature is 0-40℃; Water Source: Use clean, neutral tap water.

YingTeng Explosion-Proof UltrasonicHumidifier Product Features:

YingTeng Explosion-ProofUltrasonic humidifiers feature an integrated atomization module, are chip replaceable, and easy to maintain with on-site operation capabilities.

Yinteng Explosion-ProofHigh-efficiency ultrasonic humidifier (nearly 100% humidity increase rate), strong humidity output, produces fine and even mist particles, quickly achieving the desired relative humidity.

The integrated atomizer core comes with an auto-water level protection device, which effectively ensures the atomizer core stops working automatically when the water level is too low, eliminating the need for additional equipment and saving costs.

Yinteng Explosion-ProofFlexible and convenient control, with full automatic humidity control for the ultrasonic humidifier.

Automatic humidity control, equipped with a renowned brand humidity sensor for high precision and rapid response. Once set, it operates continuously without the need for human attendance.

Yinteng Explosion-ProofThe ultrasonic humidifier boasts an aesthetically pleasing and generous design, is corrosion-resistant, and has a long lifespan.

Yinteng Explosion-ProofThe ultrasonic humidifier has undergone extensive testing and years of practical operation, featuring a compact structure and rational design. It operates silently and delivers high-efficiency atomization of liquids.
