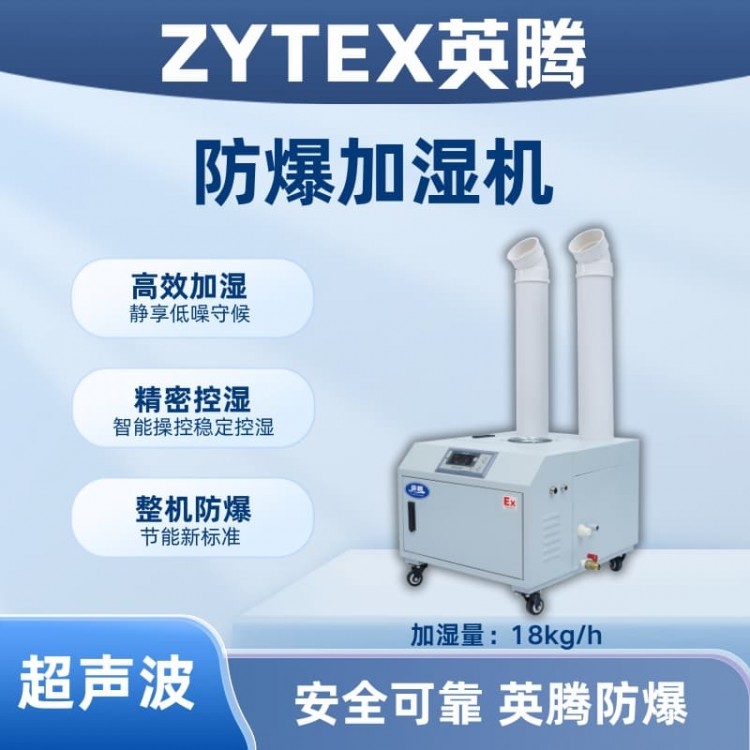

BJS-18(CS) Explosion-proof Ultrasonic Humidifier

Model: BJS-18(CS)

Brand: YingTeng

Power: 1800W

Power Supply: 220V~50Hz

Aerosol Particles: <10 micrometers

Net Weight: 58 kg

Humidification Rate: 18 kg/h

Re-circulating Airflow: 680 m³/h

Mist outlet quantity: 3 x 110mm

Rated Input Current: 8.2A

Dimensions (mm): 650x780X520

Ex db ib IIB T4 Gb

Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.

Note: The above technical parameters are for reference only, the actual product should be taken as the standard.

YingTeng Explosion-Proof Humidifier, Explosion-Proof Mark: Ex db ib IIB T4 Gb

Yiting Explosion-Proof HumidifierThe listed products comply with the following execution standards:

GB/T 3836.1-2021 "Explosive Atmospheres *1 Part: Equipment General Requirements"

GB/T 3836.2 - 2021 "Explosive Atmospheres - Part 2: Equipment protected by intrinsic safety 'd'"

GB/T 3836.4 - 2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"

GB/T 3836.15-2017 "Explosive Atmospheres - Part 15: Design, Selection, and Installation of Electrical Equipment"

YingTeng Explosion-proof HumidifierOperates normally under the following conditions:

a) Altitude not exceeding 2,000m.

b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free of corrosive gases.

c) There are explosive hazard areas formed by mixtures of flammable gases, vapors, and air from Groups II A, II B, and T1 to T4.

YingtengExplosion-proof HumidifierSeries models are processed with special explosion-proof technology, suitable for widespread use in flammable and explosive areas in Zones 1 and 2, and are widely applicable in scientific research, oil, chemical industry, medicine, power plants, and other locations where there may be or could be II A, II B, T1-T4 groups of combustible gases, steam, and air mixtures that pose explosion hazards.Explosion-proof HumidifierSuited for locations with temperature requirements.Explosion-proof HumidifierInspected and certified by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center with explosion-proof and CCC certification; featuring an aesthetically pleasing design, reasonable structure, and easy installation and maintenance, the full range of productsExplosion-proof HumidifierInternally equipped with brand-name compressors, microcomputer intelligent control, digital display, featuring low noise, stable performance, simple operation, and safety reliability, it is highly favored by the market. (Customizable:Explosion-proof ultrasonic humidifierExplosion-proof humidifying membrane humidifierExplosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioning units, explosion-proof multi-split air conditioning units, etc.).

Yinteng Explosion-proof UltrasonicHumidifier Operation Principle:

The ultrasonic industrial humidifier utilizes electronic ultra-frequency oscillation (oscillation frequency of 17MHz) to produce a natural, floating mist by throwing water away from the surface through the high-frequency resonance of the atomizing plate. It generates 1-5 micron water particles floating in the air without the need for heating or chemicals, thereby increasing the relative humidity of the air.

YingTeng Explosion-Proof UltrasonicHumidifier Operation Conditions: Environmental Temperature: Normal operating temperature is 0-40°C; Water Source: Use clean, neutral tap water.

Yinteng Explosion-proof UltrasonicHumidifier Product Features:

YingTeng Explosion-ProofUltrasonic humidifiers are equipped with an integrated atomization module, featuring replaceable chips for easy maintenance and on-site operation.

YingTeng Explosion-ProofHigh humidity efficiency (close to 100%), strong humidification intensity, produces small and even mist particles, quickly achieving the required relative humidity.

The integrated atomizing core comes with an overflow protection device, effectively ensuring that the atomizing core automatically stops working when the water level is too low, without the need for additional equipment, saving costs.

YingTeng Explosion-ProofFlexible and convenient operation, with automatic humidity control.

Humidity fully automatic control; equipped with renowned brand humidity sensors, the control system boasts high accuracy and rapid response. Once set, it operates continuously without the need for personnel oversight.

Yinteng Explosion-ProofThe ultrasonic humidifier boasts an aesthetically pleasing and generous design, is corrosion-resistant, and has a long lifespan.

YingTeng Explosion-ProofThe ultrasonic humidifier has been tested repeatedly and verified through years of actual use, featuring a compact structure and rational design. It operates silently and achieves high liquid atomization efficiency.
