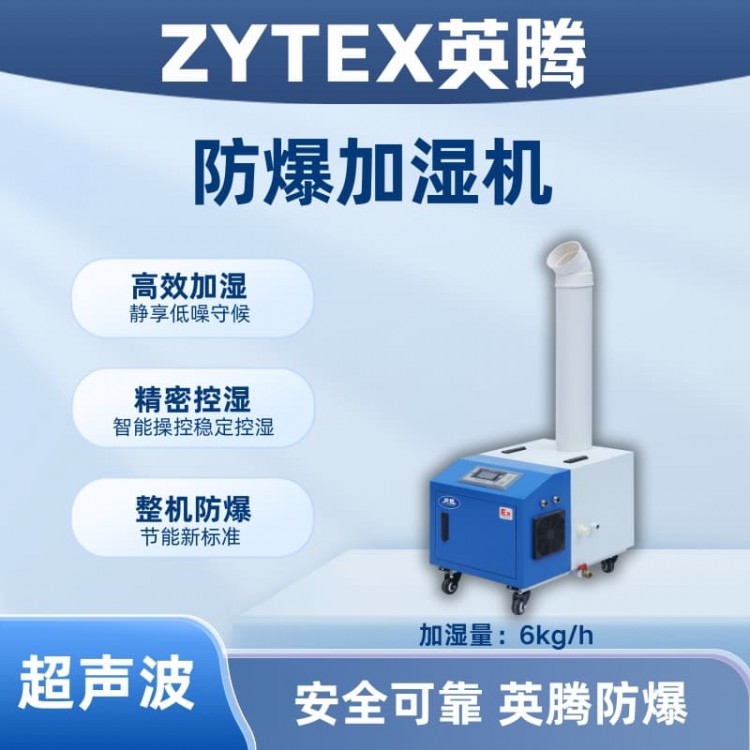

BJS-6(CS) Explosion-proof Ultrasonic Humidifier

Model: BJS-6(CS)

Brand: YingTeng

Power: 600W

Power: 220V~50Hz

Applicable Range (Room Height: 3 meters): 80-130 sqm

Net Weight: 28 kg

Humidifying Capacity: 6 kg/h

Re-circulating Airflow: 180 m³/h

Mist outlet quantity: 1 x 110mm

Rated Input Current: 2.4A

Dimensions (mm): 530x360X470

Explosion-proof marking: Ex db ib IIB T4 Gb

Manufacturer: Henan Tongteng Explosion Proof Electrical Appliances Co., Ltd.

Note: The above technical specifications are for reference only; the actual product is the standard.

YingTeng Explosion-Proof Humidifier features the explosion-proof mark: Ex db ib IIB T4 Gb

Yinteng Explosion-proof HumidifierThe listed products comply with the following execution standards:

GB/T 3836.1 - 2021 "Explosive Atmospheres *1 Part: Equipment General Requirements"

GB/T 3836.2 - 2021 "Explosive Atmospheres *Part 2: Equipment protected by隔爆外壳 'd'"

GB/T 3836.4-2021 "Explosive Atmospheres - Part 4: Equipment protected by intrinsic safety 'i'"

GB/T 3836.15-2017 "Explosive Atmospheres - Part 15: Design, Selection, and Installation of Electrical Equipment"

YingTeng Explosion-Proof HumidifierOperates normally under the following environmental conditions:

a) Altitude not exceeding 2,000m.

b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free from corrosive gases.

c) There are explosive hazardous areas formed by mixtures of flammable gases, vapors, and air, from Groups II A, II B, and T1 to T4.

YingtengExplosion-proof HumidifierSeries models are processed with special explosion-proof technology, suitable for widespread use in Class 1 and Class 2 flammable and explosive areas. They are widely applicable in scientific research, oil, petrochemical, pharmaceutical, power plants, and other locations where there may be or could be hazardous areas involving IIa, Iib, T1 to T4 groups of combustible gases, steam-air mixtures, and the risk of explosion.Explosion-proof HumidifierFor applications requiring temperature controlExplosion-proof HumidifierInspected and certified by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center with explosion-proof certificates and CCC explosion-proof certificates; featuring an aesthetically pleasing design, reasonable structure, and ease of installation and maintenance, the full rangeExplosion-proof humidifierInternally equipped with a brand-name compressor, microcomputer intelligent control, digital display, featuring low noise, stable performance, simple operation, and safety, it is highly favored by the market. (Customizable:Explosion-proof ultrasonic humidifierExplosion-proof humidifying machine with wet film technologyExplosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioning units, explosion-proof multi-split air conditioning units, etc.

YingTeng Explosion-Proof UltrasonicHumidifier Working Principle:

Ultrasonic industrial humidifiers utilize electronic ultrahigh-frequency oscillation (oscillation frequency of 17MHz) to produce a natural, floating mist by throwing water away from the surface through the high-frequency resonance of the atomizing plate. This process generates 1-5 micron water particles floating in the air without the need for heating or chemicals, thereby increasing the relative humidity of the air.

YingTeng Explosion-Proof UltrasonicHumidifier Usage Conditions: Environmental Temperature: Normal operating temperature range is 0-40°C; Water Source: Use clean, neutral tap water.

YingTeng Explosion-Proof UltrasonicHumidifier Product Features:

YingTeng Explosion-ProofUltrasonic humidifiers feature integrated atomization modules, interchangeable chips, easy maintenance, and on-site operation.

YingTeng Explosion-ProofHigh-efficiency ultrasonic humidifiers (close to 100% efficiency), with strong humidification intensity, produce fine and even mist particles, quickly achieving the desired relative humidity.

The integrated atomizing core comes with an automatic water protection device, effectively ensuring the atomizing core stops working automatically when the water level is too low, eliminating the need for additional equipment and saving costs.

YingTeng Explosion-ProofFlexible and convenient control, with full automatic humidity control for the ultrasonic humidifier.

Humidity fully automatic control, equipped with a renowned brand humidity sensor for high control accuracy and rapid response. Once set, it operates continuously without the need for personnel supervision.

Yinteng Explosion-ProofUltrasonic humidifiers feature an aesthetically pleasing and generous design, are corrosion-resistant, and have a long lifespan.

YingTeng Explosion-ProofThe ultrasonic humidifier has been tested repeatedly and has been in actual use for many years, featuring a compact structure and reasonable design. It operates silently and achieves high liquid atomization efficiency.
