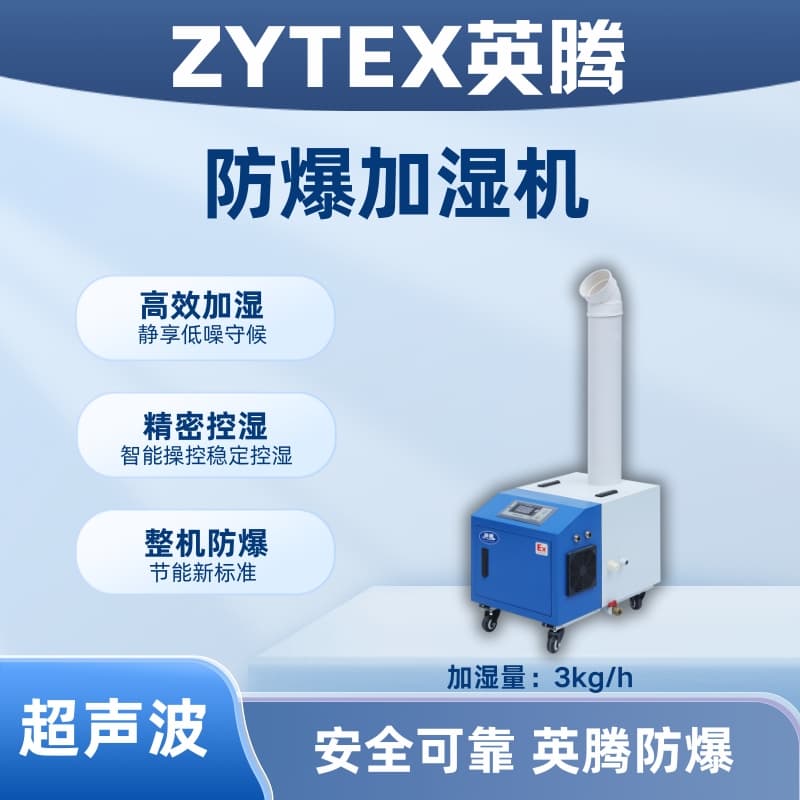

BJS-3(CS) Inten Explosion-proof Ultrasonic Humidifier

Model: BJS-3(CS)

Brand: YingTeng

Power: 300W

Power Supply: 220V~50Hz

Applicable Range (Room Height: 3 meters): 50-80 sqm

Net Weight: 25 kg

Humidification Capacity: 3 kg/h

Recirculating Airflow: 170 m³/h

Mist outlet quantity: 1 x 110mm

Rated Input Current: 1.36A

Dimensions (mm): 530x360X470

Ex db ib IIB T4 Gb

Manufacturer: Henan Tongteng Explosion-proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only; the actual product should be used as the standard.

Inten Explosion-Proof Humidifier features explosion-proof mark: Ex db ib IIB T4 Gb

Yinteng Explosion-Proof HumidifierThe following are the product execution standards:

GB/T 3836.1 - 2021 "Explosive Atmospheres *1 Part: Equipment General Requirements"

GB/T 3836.2-2021 "Explosive Atmospheres - Part 2: Equipment protected by隔爆外壳 "d""

GB/T 3836.4 - 2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"

GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"

YingTeng Explosion-Proof HumidifierOperates normally under the following environmental conditions:

a) Altitude not exceeding 2,000m.

b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free from corrosive gases.

c) There are explosive hazard areas formed by mixtures of flammable gases, vapors, and air from Group II A, II B, T1 to T4 categories.

YingtengExplosion-proof HumidifierSeries models are processed with special explosion-proof technology, suitable for widespread use in Class 1 and Class 2 flammable and explosive areas. They are widely applicable in research, oil, chemical, pharmaceutical, power plants, and other places where there may be or are II A, II B groups of T1 to T4 combustible gases, steam and air mixtures, forming explosion hazards.Explosion-proof HumidifierIdeal for locations with temperature requirements.Explosion-proof humidifierInspected and certified by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products, with explosion-proof certificates and explosion-proof CCC certificates issued; features an aesthetically pleasing design, reasonable structure, and ease of installation and maintenance, the full range ofExplosion-proof HumidifierInternally, features include a brand-name compressor, microcomputer intelligent control, digital display, low noise, stable performance, simple operation, and safety reliability, which have won great popularity in the market. (Customizable:Explosion-proof ultrasonic humidifierExplosion-proof humidifying film humidifierExplosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioning units, explosion-proof multi-split air conditioning units, etc.

YingTeng Explosion-Proof UltrasonicHumidifier Working Principle:

The ultrasonic industrial humidifier employs electronic over-frequency oscillation (oscillation frequency of 17MHz) to produce a natural, drifting mist by means of high-frequency resonance in the atomizing plate. It propels water droplets away from the surface without the need for heating or chemicals, creating particles of 1-5 micrometers that float in the air, thereby increasing the relative humidity of the environment.

Yinteng Explosion-proof UltrasonicHumidifier Operation Conditions: Environmental Temperature: Normal operating temperature is 0-40°C; Water Source: Use clean, neutral tap water.

YingTeng Explosion-Proof UltrasonicHumidifier Product Features:

Yinteng Explosion-proofUltrasonic humidifiers feature integrated atomization modules, replaceable chips, easy maintenance, and on-site operation.

Yinteng Explosion-ProofHigh humidification efficiency (nearly 100%), strong humidification intensity, produces fine and even mist particles, quickly achieving the desired relative humidity.

The integrated atomizing core comes with an automatic water level protection device, which effectively ensures the atomizing core stops operating automatically when the water level is too low, eliminating the need for additional equipment and saving costs.

YingTeng Explosion-ProofThe ultrasonic humidifier features flexible and convenient control methods, with full automatic humidity control.

Humidity fully automatic control, equipped with a renowned brand humidity sensor in the control system, featuring high accuracy and rapid response. Once set, it operates continuously without the need for human supervision.

YingTeng Explosion-ProofThe ultrasonic humidifier boasts an elegant and stylish design, excellent corrosion resistance, and a long service life.

YingTeng Explosion-ProofThe ultrasonic humidifier has undergone repeated testing and years of practical operation, featuring a compact structure and reasonable design. It operates silently and achieves high liquid atomization efficiency.
