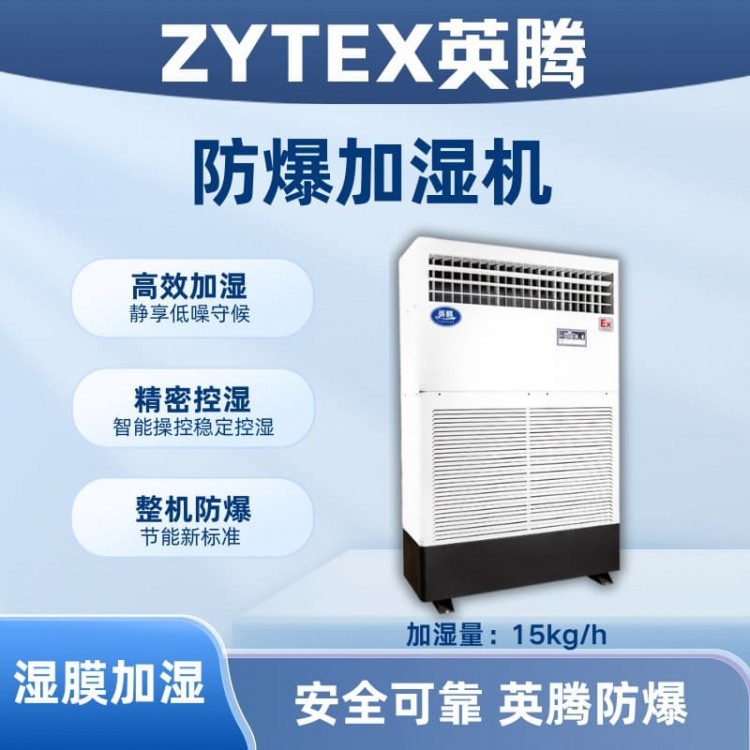

BJS-15(SM) Explosion-proof Wet Film Humidifier

Model: BJS-15(SM)

Brand: YingTeng

Power: 500W

Power Supply: 220V~50Hz

Applicable Range (room height: 3 meters): 130-180 sqm

Net Weight: 80 kg

Humidification Capacity: 15 kg/h

Re-circulating Airflow: 4000 m³/h

Operating Environment Temperature: 1-40℃

Rated Input Current: 2.3A

Dimensions (Length x Width x Height mm): 1200x450X1850

Ex db ib IIB T4 Gb

Manufacturer: Henan Tongteng Explosion-Proof Electrical Appliances Co., Ltd.

Note: The above technical specifications are for reference only, and the actual unit should be taken as the standard.

Inten Explosion-Proof Humidifier, with Explosion-Proof Mark: Ex db ib IIB T4 Gb

Yiting Explosion-proof HumidifierThe listed products comply with the following execution standards:

GB/T 3836.1 - 2021 "Explosive Atmospheres *1 Part: Equipment General Requirements"

GB/T 3836.2 - 2021 "Explosive Atmospheres - Part 2: Equipment protected by隔爆外壳 'd'"

GB/T 3836.4-2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"

GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"

YingTeng Explosion-Proof HumidifierOperates normally under the following environmental conditions:

a) Altitude not exceeding 2,000m;

b) Suitable for environments with temperatures ranging from -7°C to 43°C, free of corrosive gases.

c) There are explosive hazardous areas formed by the mixture of flammable gases, vapors from Groups II(A), II(B), and T1 to T4, with air.

YingTengExplosion-proof HumidifierSeries models are processed with special explosion-proof technology, suitable for widespread use in Class 1 and Class 2 flammable and explosive environments. They are widely applicable in scientific research, oil, chemical, pharmaceutical, and power plant settings where there may be or could be hazardous areas with II A, II B groups T1 to T4 combustible gases, vapors mixed with air, posing explosion risks.Explosion-proof HumidifierFor facilities requiring temperature controlExplosion-proof HumidifierInspected and certified by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center with explosion-proof certification and explosion-proof CCC certificate; features an aesthetically pleasing design, reasonable structure, and ease of installation and maintenance, the full range ofExplosion-proof HumidifierInternally equipped with brand-name compressors, microcomputer intelligent control, digital display, featuring low noise, stable performance, simple operation, and safety reliability, it is highly favored by the market. (Customizable:Explosion-proof ultrasonic humidifierExplosion-proof wet film humidifierExplosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioning units, explosion-proof multi-split air conditioning units, etc.

YingTeng Explosion-proof Humidifier Membrane Humidifier Features

Fully automatic control, randomly displays current humidity; precise control of 5% humidity, freely adjustable.

Wind speed freely adjustable, strong humidification, wide and even humidification range.

Utilizing imported plant wet membranes, high-efficiency humidification, and independent control with solenoid valves for safety and reliability.

The water storage tank is equipped with dual float detection for precise and stable performance; features an external rotor centrifugal fan for low-noise operation.

Electronic testing, leak protection features; fault alert function, user-friendly design;

All-plastic sheet metal housing, streamlined design, stylish and elegant.

Foot-activated swivel wheels, easy and smooth movement.

Note: Customizable R485 remote control models and explosion-proof models available.

Principle of Yingteng Explosion-Proof Temperature Control Humidifier

Water is pumped to the sprinkler system by the upper pump, with the lower part consisting of highly absorbent humidifying material - a wet film. Water permeates downward through the wet film material under the force of gravity, being absorbed by the wet film material to form a uniform water film: as dry air passes through the wet film material, water molecules absorb the heat from the air, vaporize, and evaporate, increasing the air humidity, creating a moist air that is then supplied to the room. The increase in humidity inside the room leads to a decrease in temperature, achieving the purpose of humidification.
