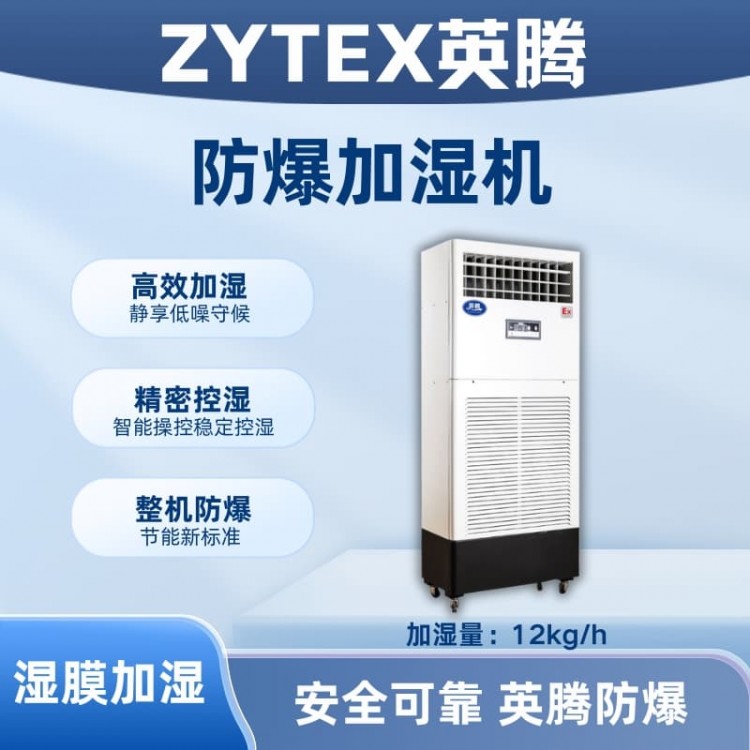

BJS-12(SM) Explosion-Proof Humidifier with Wet Film Technology

Model: BJS-12(SM)

Brand: YingTeng

Power: 450W

Power: 220V~50Hz

Application Range (Room Height: 3 meters): 90-150㎡

Net Weight: 75 kg

Humidification Rate: 12 kg/h

Recirculating Airflow: 3500 m³/h

Operating Environment Temperature: 1-40℃

Rated Input Current: 2.0A

Dimensions (Length x Width x Height mm): 780x450X1770

Explosion-proof marking: Ex db ib IIB T4 Gb

Manufacturer: Henan Tongteng Explosion Proof Electrical Appliances Co., Ltd.

Note: The above technical specifications are for reference only; the actual unit shall prevail.

Yinteng Explosion-Proof Humidifier - Explosion-Proof Mark: Ex db ib IIB T4 Gb

YingTeng Explosion-Proof HumidifierThe listed products comply with the following execution standards:

GB/T 3836.1 - 2021 "Explosive Atmospheres *Part 1: Equipment General Requirements"

GB/T 3836.2-2021 "Explosive Atmospheres *Part 2: Equipment protected by intrinsic safety 'd'"

GB/T 3836.4-2021 "Explosive Atmospheres - Part 4: Equipment protected by intrinsic safety 'i'"

GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"

YingTeng Explosion-Proof HumidifierOperates normally under the following environmental conditions:

a) Altitude not exceeding 2,000m

b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free of corrosive gases.

c) There are explosive hazardous areas formed by mixtures of flammable gases, vapors from Group II A, II B, and T1 to T4, with air.

YingTengExplosion-proof HumidifierSeries models are processed with special explosion-proof technology, suitable for widespread use in flammable and explosive areas of Zones 1 and 2. They are broadly applicable in research, oil, chemical, pharmaceutical, and power plant environments where there may be or could be IIa, Iib Group T1 to T4 combustible gases, vapors mixed with air, forming explosive hazards.Explosion-proof humidifierSuitable for locations with temperature requirements.Explosion-proof HumidifierInspected and certified by the National Explosion-Proof Electrical Products Quality Supervision and Inspection Center with explosion-proof certificates and explosion-proof CCC certificates; featuring an aesthetically pleasing design, reasonable structure, and easy installation and maintenance, the full range of productsExplosion-proof HumidifierInternally equipped with brand-name compressors, microcomputer intelligent control, digital display, featuring low noise, stable performance, simple operation, and safety reliability, it is highly favored by the market. (Customizable:)Explosion-proof ultrasonic humidifierExplosion-proof wet film humidifierExplosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioning units, explosion-proof multi-split air conditioning units, etc.

Inten Explosion-Proof Humidifier Film Humidifier Features

Fully automatic control, randomly displays current humidity, 5% humidity precise control, freely adjustable.

Wind speed freely adjustable, powerful humidification, wide and even humidification range.

Utilizing imported plant wet film, high-efficiency humidification, and independent control with solenoid valves, ensuring safety and reliability.

Tanks are equipped with dual float sensors for precise and stable operation; utilize an external rotor centrifugal fan for low noise performance.

Electronic testing, water leakage protection feature; fault alert function, user-friendly design;

All-plastic sheet metal housing, streamlined design, attractive and elegant.

Foot-operated swivel casters, easy and smooth movement.

Note: Customizable R485 remote control models and explosion-proof models available.

Principle of YingTeng Explosion-proof Temperature Control Film Humidifier

Water is pumped to the misting system via pipes, with a highly absorbent humidifying material—wet film—below. Water permeates downward through the wet film material under the force of gravity, being absorbed by the wet film to form a uniform water film. As dry air passes through the wet film material, water molecules absorb the heat from the air, vaporize, and evaporate, thereby increasing the air humidity, creating moist air that is then introduced into the room. The increased humidity in the room air leads to a decrease in temperature, achieving the purpose of humidification.
