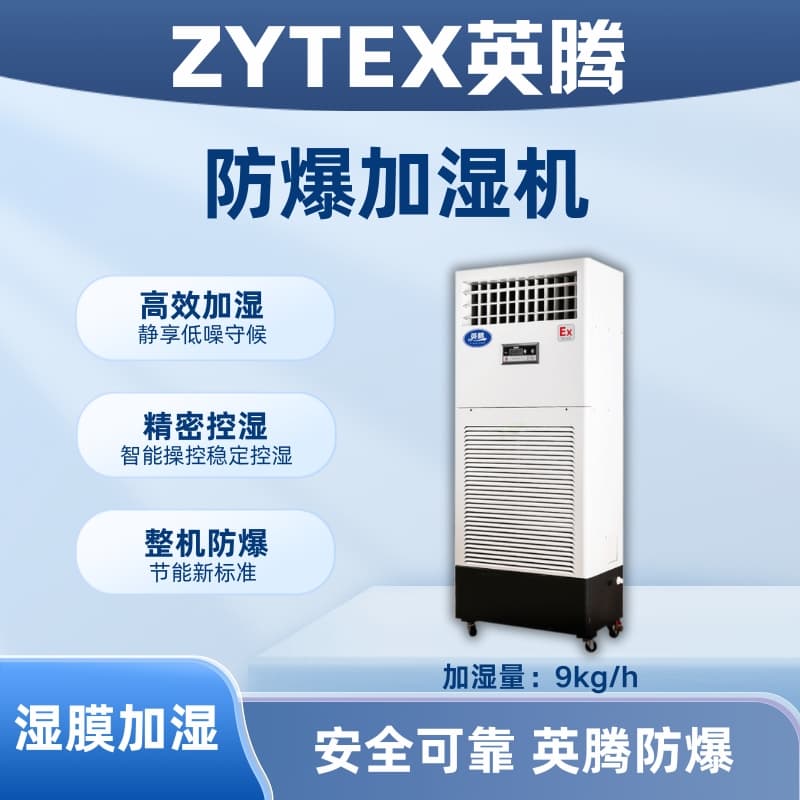

BJS-9(SM) Explosion-proof Wet Film Humidifier

Model: BJS-9(SM)

Brand: YingTeng

Power: 350W

Power: 220V~50Hz

Application Range (Room Height: 3 meters): 80-120㎡

Net Weight: 70 kg

Humidification Capacity: 9 kg/h

Recirculating Airflow: 2800 m³/h

Operating Environment Temperature: 1-40℃

Rated Input Current: 1.6A

Dimensions (Length x Width x Height mm): 780x350X1770

Explosion-proof Mark: Ex db ib IIB T4 Gb

Manufacturer: Henan Tongteng Explosion Proof Electrical Appliances Co., Ltd.

Note: The above technical specifications are for reference only; the physical product shall be the criterion.

Inten Explosion-Proof Humidifier, Explosion-Proof Mark: Ex db ib IIB T4 Gb

Inten Explosion-proof HumidifierThe listed products comply with the following execution standards:

GB/T 3836.1 - 2021 "Explosive Atmospheres *Part 1: Equipment General Requirements"

GB/T 3836.2 - 2021 "Explosive Atmospheres *Part 2: Equipment protected by隔爆外壳“d”"

GB/T 3836.4 - 2021 "Explosive Atmospheres *Part 4: Equipment protected by intrinsic safety 'i'"

GB/T 3836.15-2017 "Explosive Atmospheres Part 15: Design, Selection, and Installation of Electrical Equipment"

Inten Explosion Proof HumidifierOperates normally under the following environmental conditions:

a) Altitude not exceeding 2,000m.

b) Suitable for environments with temperatures ranging from -7℃ to 43℃, free of corrosive gases.

c) There are explosive hazard areas formed by mixtures of flammable gases, vapors, and air in Groups II A, II B, T1 to T4.

YintengExplosion-proof HumidifierSeries models have been processed with special explosion-proof technology, suitable for widespread use in flammable and explosive areas of Zones 1 and 2. They are widely applicable in scientific research, oil, chemical, pharmaceutical, and power plants where there may be or could be explosive hazards from mixtures of IIa, Iib, T1 to T4 groups of combustible gases, steam, and air.Explosion-proof humidifierSuitable for locations with temperature requirements.Explosion-proof HumidifierInspected and certified by the National Explosion-Proof Electrical Product Quality Supervision and Inspection Center with explosion-proof certificates and CCC explosion-proof certificates; aesthetically pleasing, well-designed, and featuring easy installation and maintenance, the entire seriesExplosion-proof HumidifierInternally equipped with brand-name compressors, microcomputer intelligent control, digital display, featuring low noise, stable performance, simple operation, and safety reliability, it is highly favored by the market. (Customizable:Explosion-proof ultrasonic humidifierExplosion-proof wet film humidifierExplosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof corrosion-resistant air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioning units, explosion-proof multi-split air conditioning units, etc.

Yinteng Explosion-proof Humidifier with Moisture Film Features

Fully automatic control, randomly displays current humidity, precise control at 5% humidity, freely adjustable.

Wind speed freely adjustable, strong humidification, wide and even humidification range.

Utilizing imported plant wet film, high-efficiency humidification, and independent control via solenoid valves, ensuring safety and reliability.

Tanks are equipped with dual-buoyant detection for precise and stable operation; utilize an external rotor centrifugal fan for low-noise performance.

Electronic testing, water leakage protection feature; fault alarm function, user-friendly design;

All-plastic sheet metal housing, streamlined design, stylish and elegant.

Foot-activated swivel wheel, easy and smooth movement.

Note: Customizable R485 remote control models and explosion-proof models available.

Yinteng Explosion-proof Temperature Control Membrane Humidifier Principle

Water is pumped to the sprinkler system by the upper pump, with the lower part consisting of highly absorbent humidifying material - a wet film. Water permeates downward through the wet film material under the force of gravity, being absorbed by the wet film material to form a uniform water film: as dry air passes through the wet film material, water molecules absorb the heat from the air, vaporize, and evaporate, increasing the air humidity, creating moist air that is then supplied to the room. The increase in humidity inside the room leads to a decrease in temperature, achieving the goal of humidification.
