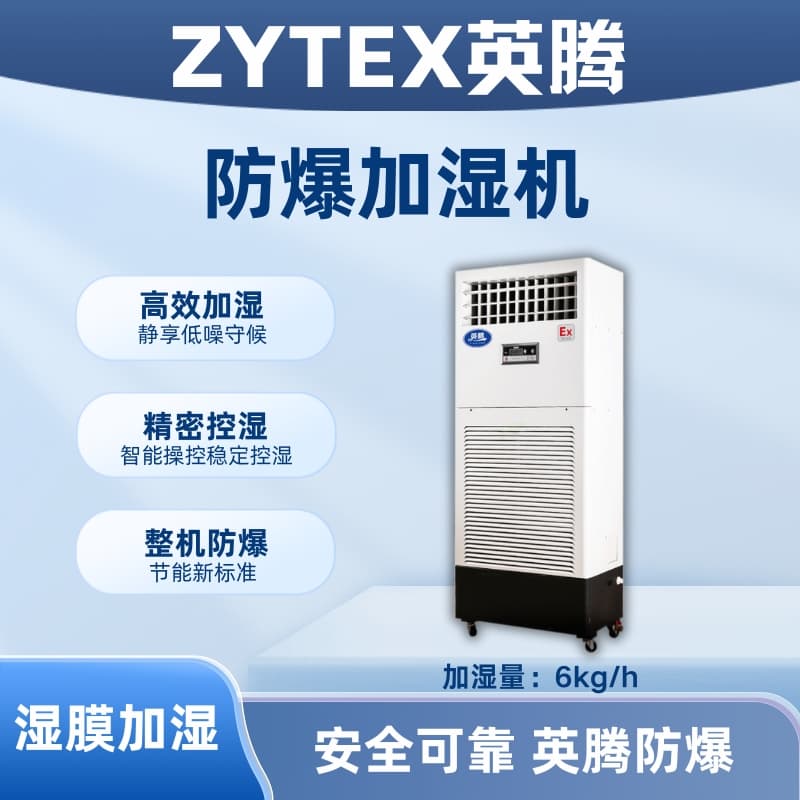

BJS-6(SM) Explosion-proof Humidifying Film Humidifier

Model: BJS-6(SM)

Brand: YingTeng

Power: 200W

Power: 220V~50Hz

Applicable Range (Room Height: 3 meters): 50-90 sqm

Net Weight: 48 kg

Humidification Rate: 6 kg/h

Airflow Rate: 2000 m³/h

Operating Environment Temperature: 1-40℃

Rated Input Current: 0.9A

Dimensions (Length x Width x Height mm): 640x350X1600

Explosion-proof marking: Ex db ib IIB T4 Gb

Manufacturer: Henan Tongteng Explosion Proof Electrical Equipment Co., Ltd.

Note: The above technical specifications are for reference only, and the physical unit shall prevail.

Inten Explosion-Proof Humidifier, explosion-proof marking: Ex db ib IIB T4 Gb

YingTeng Explosion-Proof HumidifierThe listed products comply with the following execution standards:

GB/T 3836.1 - 2021 "Explosive Atmospheres *1 Part: Equipment General Requirements"

GB/T 3836.2-2021 "Explosive Atmospheres *Part 2: Equipment protected by explosion-proof enclosures 'd'"

GB/T 3836.4-2021 "Explosive Atmospheres - Part 4: Equipment protected by intrinsic safety 'i'"

GB/T 3836.15-2017 "Explosive Atmospheres *Part 15: Design, Selection, and Installation of Electrical Equipment"

Yiting Explosion-Proof HumidifierOperates normally under the following environmental conditions:

a) Altitude not exceeding 2,000m.

b) Applicable environment: temperature -7℃ to 43℃, free from corrosive gases.

c) There are explosive hazard areas formed by mixtures of flammable gases, vapors, and air in II-A, II-B, and T1 to T4 groups.

YingtengExplosion-proof HumidifierSeries models have been processed with special explosion-proof technology and are widely applicable to flammable and explosive areas in Zones 1 and 2. They are suitable for scientific research, oil, chemical, pharmaceutical, power plants, and other locations where II A, II B, T1-T4 groups of combustible gases and steam-air mixtures may form explosive hazards.Explosion-proof HumidifierFor applications requiring temperature controlExplosion-proof HumidifierInspected and certified by the National Quality Supervision and Inspection Center for Explosion-Proof Electrical Products, with explosion-proof certificates and explosion-proof CCC certificates issued; aesthetically pleasing in appearance, well-designed, and easy to install and maintain, the full range ofExplosion-proof humidifierInternally equipped with brand-name compressors, microcomputer intelligent control, digital display, featuring low noise, stable performance, simple operation, and safety, it is highly favored by the market. (Customizable:)Explosion-proof ultrasonic humidifierExplosion-proof wet membrane humidifiersExplosion-proof window-type air conditioners, explosion-proof duct-type air conditioners, explosion-proof ceiling-mounted air conditioners, explosion-proof fresh air air conditioners, explosion-proof marine air conditioners, explosion-proof anti-corrosion air conditioners, explosion-proof high-temperature air conditioners, explosion-proof cold storage air conditioners, explosion-proof modular air conditioners, explosion-proof multi-split air conditioners, etc.).

YingTeng Explosion-proof Humidifying Film Humidifier Features

Fully automatic control, randomly displays the current humidity; precise control of 5% humidity, freely adjustable.

Wind speed freely adjustable, strong humidification, wide and even humidification range.

Utilizing imported plant wet film, high-efficiency humidification, and independent control with solenoid valves, ensuring safety and reliability.

The water tank is equipped with a dual-buoyant detection system for precise and stable operation; it utilizes an external rotor centrifugal fan for low-noise performance.

Electronic testing, leak protection feature; fault alert function, user-friendly design;

All-plastic sheet metal housing, streamlined design, attractive and elegant.

Foot-activated swivel wheel, easy and smooth movement.

Note: Customizable models available for R485 remote control and explosion-proof versions.

Principle of YingTeng Explosion-proof Temperature Control Membrane Humidifier

Water is transported from the overhead pump to the misting system via piping, with a highly absorbent humidifying material—wet film—below. Under the force of gravity, water permeates through the wet film material, absorbed by the material to form a uniform water film. When dry air passes through the wet film material, water molecules absorb heat from the air, vaporize, and evaporate, thereby increasing the air humidity, creating moist air that is then introduced into the room. The increase in humidity inside the room leads to a decrease in temperature, achieving the purpose of humidification.
