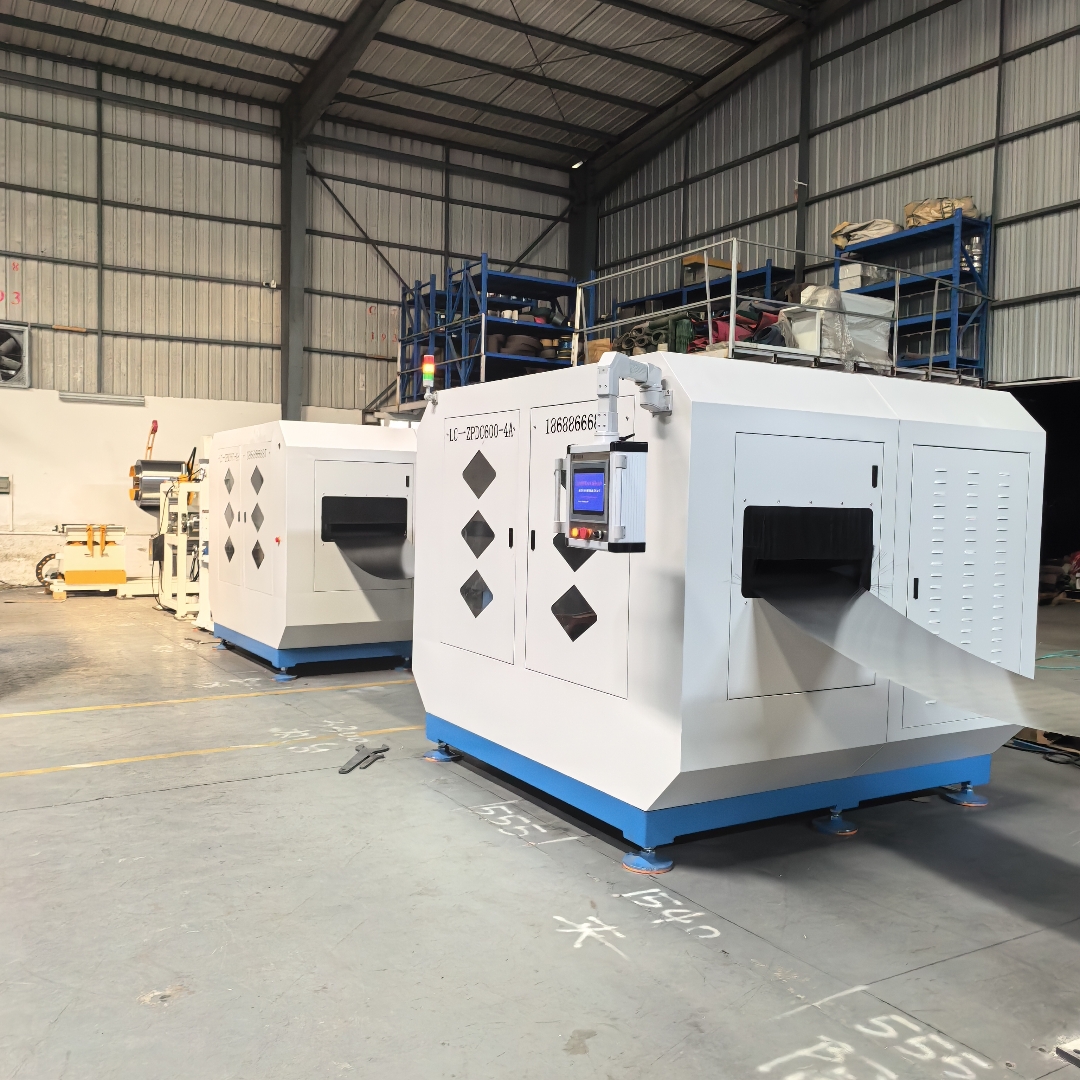

Dual-sided automatic polishing machine production line for CNC steel stripCoil Polishing Machine, Strip Polishing MachineLC-ZPDC600-4A
The steel strips are subjected to double-sided rust removal, with the entire production line consisting of a feeding device,4A polishing machine for abrasive finishing, integrated with a collection device (suitable for copper, iron, stainless steel, aluminum, aluminum alloys, titanium sheets, etc.), for surface polishing, brushing, and sanding treatments.Support for non-standard customization
1MotorY4—15K4 units of W
2. Swing motor equipped with gear reduction motor 1.5KW x 4 units
3. Servo motors: 4 sets * 1.5KW
4Polishing wheel with a width of 450mm600mm diameter
5Cut-to-size sheet metal coils: Thickness is as specified0.15－0.5mm,
6Material Thickness:0.15~1.5mm
7The processing speed is variable frequency speed regulation: per minute8-40Rice
8Leaf Blower, Sisal Blower, Sisal Blower, Fabric Blower, Fabric Blower, Clean Finish Blower
9Outer Diameter of Material Coils:1300mm
10Inner Diameter of Material Coils:508mm
11Roll-to-roll expansion range: Φ460-Φ530
12Carrying material roll width:200-600mm；
13Net Weight: Less than6000KG
14Air Pressure:0.5Mpa
15Open-Book MotorAC2.2KW
16Coiling Motor:AC7.5KW
17Expansion Method: Hydraulic Rod Type
18Supply Direction (as per customer's request)
19Power Supply:380V/50Hz(Three-phase four-wire)
20Total Production Line Length:Approx.23Meters (customizable to customer's request)
21Dust removal equipment:5.5KW
Design principle of double-sided automatic polishing head for steel strip, designed for high-standard polishing heads, suitable for surface polishing, sanding, anodizing, brushing, grinding, oxidation layer removal, rust removal, burr removal, and other treatments on metal products, such as surface treatments for copper, iron, stainless steel, aluminum, aluminum alloys, titanium sheet, etc. Servo control system.
Customizable to meet customer requirements1-20Polishing machine heads, each head can be independently raised/lowered and swiveled, (polishing wheels have high concentricity, no vibration).
Features: Easy to operate, stable quality, high efficiency.
