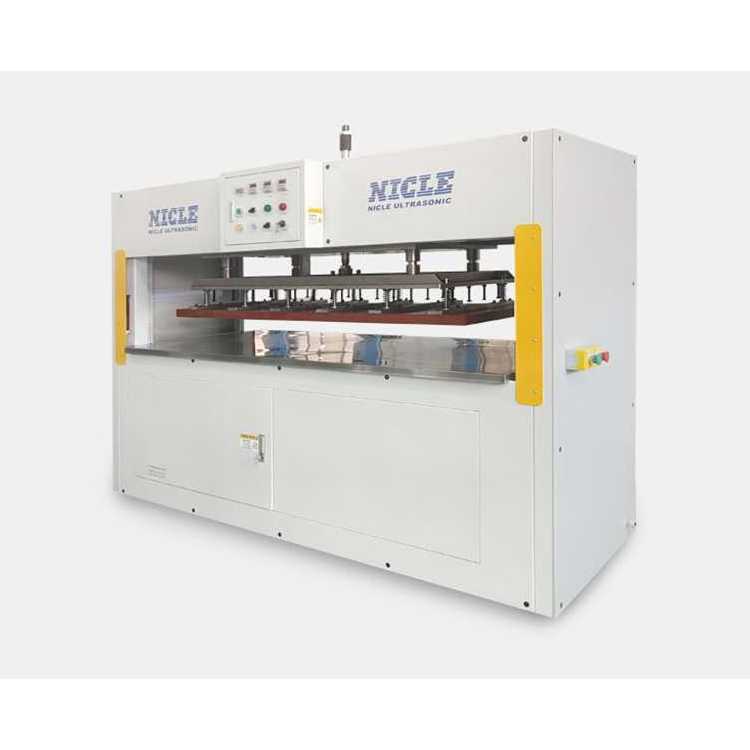

Servo heated plate welding machine working principle
Hot plate welders primarily weld plastic parts using temperature-controlled heating plates. During welding, the heating plate is placed between two plastic components. As the workpiece approaches the heating plate, the plastic begins to melt. After a predetermined heating time, the plastic on the workpiece surface will reach a certain degree of melting. At this point, the workpiece is separated from both sides, the heating plate is removed, and then the two workpieces are joined together. Once a specific welding time and depth are achieved, the entire welding process is complete.
One, Advantages of Servo Hot Plate Welding Machines:
Innovative servo drive technology and the s-tvp closed-loop process control system bring you an unprecedented user experience.
2. Say goodbye to the widespread control of traditional hot plate welding machines and step into the new era of precise hot plate welding.
3. Welding surfaces allow for plastic allowance compensation to ensure welding strength
4. Welding processes can be adjusted according to the requirements of various materials.
5. The driving method can be pneumatic, hydraulic, or servo motor, depending on the size of the equipment.
6. High equipment stability ensures consistent welding results after processing and precise workpiece dimensions. Parameters such as welding temperature, heating time, cooling time, heating depth, welding depth, pressure, and switching time are adjustable.
7. Smoothly and rapidly depart from the hot stamping mold within a short time
8. The heating plate, upper clamp, and lower clamp of the hot forging die are designed as an independent assembly part for easy installation and handling.
9. Working Principle of Imported Hot Plate Materials
Section 2: Servo Hot Plate Welder Performance:
High work efficiency
2. The welder features high strength and excellent performance.
3. Utilizes automatic control technology for simple and easy operation.
4. The moving parts are driven by servo, ensuring smooth, accurate, and efficient operation.
5. Pollution-free, waste-free, and more environmentally friendly operations
Section 3: Servo Heat Plate Welding Machine Equipment Specifications:
1. As per hot plate unit
2. Hot plate welders are available in either vertical or parallel configurations. Hot plate welding can be categorized into horizontal and vertical based on the mold design. This means there are horizontal hot plate welders and horizontal hot plate welders.
3. The size of the hot plate welder depends on the size of the workpiece. The driving method can be pneumatic, hydraulic, or servo motor, depending on the size of the equipment. That is, pneumatic hot plate welder and hydraulic hot plate welder.
4. Available in semi-automatic or fully automatic modes, based on welding process requirements. The equipment boasts excellent stability, consistent welding results after processing, and highly accurate workpiece dimensions. Adjustability for parameters such as welding temperature, heating time, cooling time, heating depth, welding depth, pressure, and switching time is provided. Additional optional welding parameters can also be adjusted. For equipment with horizontal hot plate design, the hot plate can be rotated 90° for cleaning.
