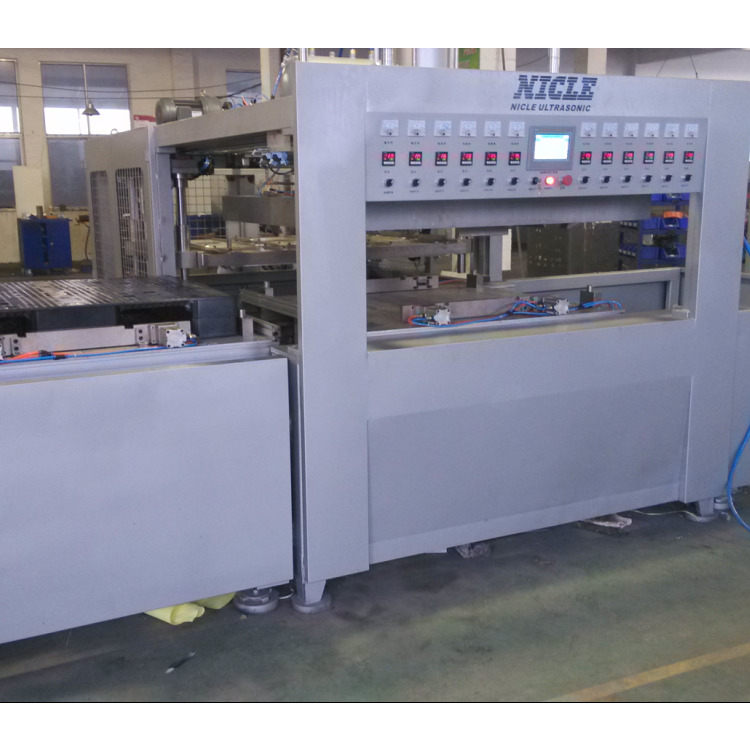

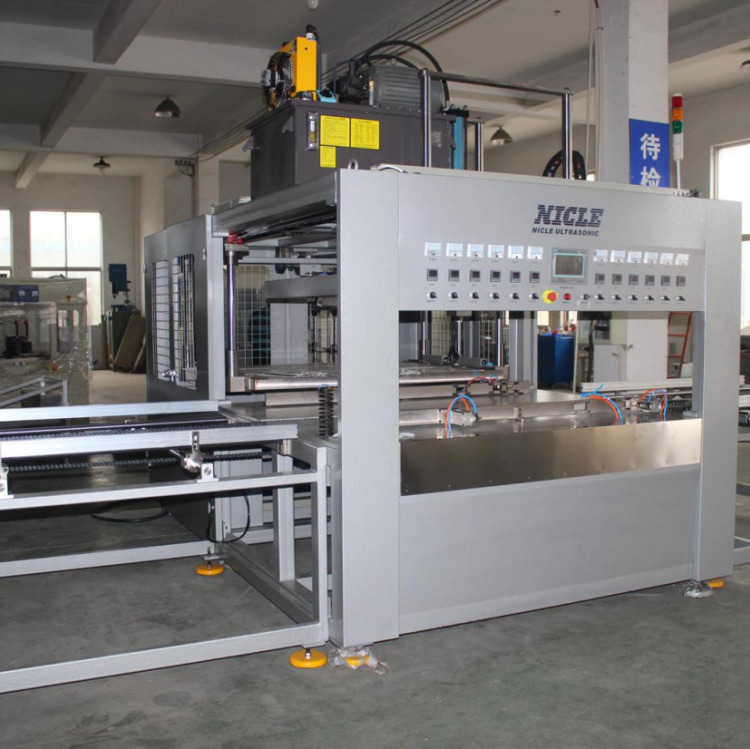

Plastic Pallet Heat Welding Machine, also known as Plastic Pallet Welder or Plastic Pallet Heat Melt Welding Equipment, powered by a hydraulic system. The welding of plastic pallets is typically done with PP or PE plastics, offering good weldability. Welding Requirements: After welding, ensure the PE panel's welding surface is smooth with no weld marks.
Plastic Pallet Heat Welding Machine Introduction
The plastic tray welding machine primarily welds plastic parts using a temperature-controlled heating plate. During welding, the heating plate is placed between two plastic components. As the workpiece approaches the heating plate, the plastic begins to melt. After a predetermined heating time, the surface plastic of the workpiece will reach a certain degree of melting. At this point, the workpiece will separate from both sides, the heating plate is removed, and then the two workpieces are joined together. The entire welding process is completed when a certain welding time and depth are reached.

Plastic Pallet Hot Plate Welding Machine Application Range
Suitable for tray welding in sizes up to 1200mm x 1200mm, with a maximum of 1800mm x 1500mm.
The main features of the plastic pallet hot plate welder are its simple structure, easy operation, and high production efficiency. After welding, it meets the requirements for water tightness, air tightness, and durability. Suitable for welding various sizes of plastic components for pallets and thermoplastic materials. It is a widely used, cost-effective, and highly efficient welding process.

Main Technical Parameters of Plastic Pallet Hot Plate Welding Machine
Power Supply: 380VAC
Power: 75 kW
Gas Source: 0.8 MPa 1m³ Air Compressor
Control System: PLC (Programmable Logic Controller) and Man-Machine Interface Operation Screen
Plastic Pallet Welding Machine Work Surface Travel Space:
1800mm x 1500mm x 200mm
1800 x 1500 x 200 mm
Machine Dimensions: 2500*3500*2120mm
Weight: 4,500 kg
Plastic Pallet Heat Plate Welding Machine Design Concept
1. Designed to meet customer specifications, this equipment features a maximum welding area of 1.8m x 1.5m. The upper cold mold and hot mold are bolted to the equipment's movable panel, while the lower cold mold employs a roller structure. The side utilizes an pneumatic positioning system for automatic part alignment and removal. Electrical and pneumatic connections are both made with quick connectors for ease, speed, and time savings. Mold change mode: manual. The upper cold mold and hot mold are in a single modular design for easy assembly and disassembly; the lower cold mold's fixed fixture features an adjustable structure.

3. Equipment Structure: The entire unit is a frame structure, with an outer cover featuring a switchable door frame for easy mold replacement and equipment maintenance.

4. Transmission Section: Equipped with linear guideways (Taiwan ABBA), ensuring stable operation and high precision of the equipment. Cylinders are used as power sources.

5. Electrical Control Section: The equipment's electrical control system utilizes a PLC control method (Delta) and a Chinese display touch screen (Delta).
Plastic pallet welding machine, standard heat plate welder with non-standard design.
