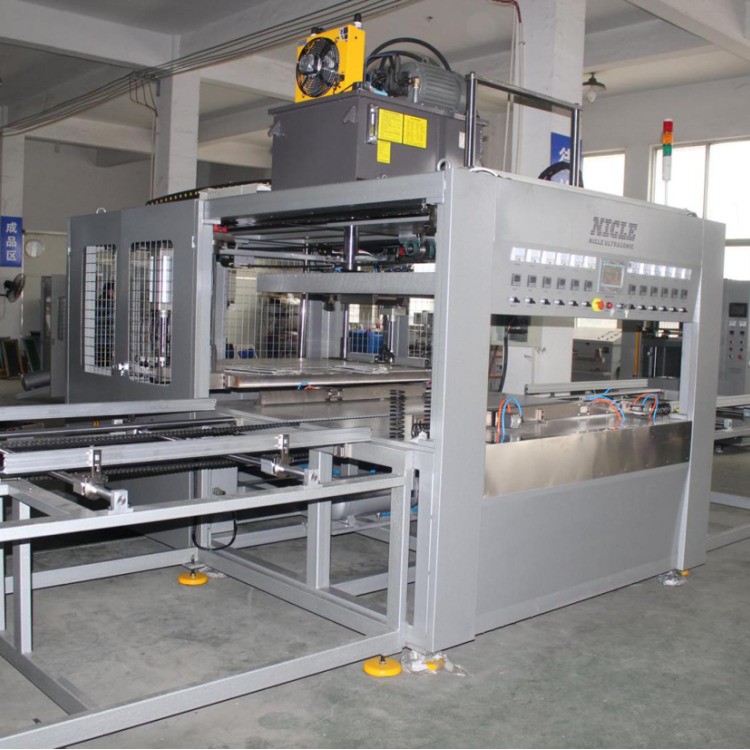

Plastic Pallet Heat Welding Machine, also known as Plastic Pallet Welder or Hot Melt Welding Equipment for Plastic Pallets, is driven by a hydraulic system. The welding of plastic pallets is typically done using PP or PE plastics, which have good welding properties. Welding Requirements: Ensure the焊接 surface of the PE sheet is smooth and free of welding marks after welding.
Plastic Pallet Hot Plate Welding Machine Overview
The plastic pallet welding machine primarily welds plastic parts through temperature-controlled heating plates. During welding, the heating plate is placed between two plastic components. As the workpiece approaches the heating plate, the plastic begins to melt. After a predetermined heating time, the plastic on the workpiece surface will reach a certain degree of melting. At this point, the workpiece will separate from both sides, the heating plate is removed, and then the two workpieces are joined together. The welding process is complete when a certain welding time and depth are achieved.

Plastic Pallet Heat Plate Welding Machine Application Range
Suitable for tray welding of this specification, size up to 1200mm x 1200mm, max 1800mm x 1500mm
The main features of the plastic pallet hot plate welding machine are its simple structure, easy operation, and high production efficiency. After welding, it meets the requirements for water tightness, air tightness, and durability. Suitable for welding various sizes of plastic parts for pallets and thermoplastic materials. It is a widely used, cost-effective, and high-efficiency welding process.

Key Technical Parameters of Plastic Pallet Hot Plate Welding Machine
Power: 380VAC
Power: 75 kW
Air Source: 0.8MPa, 1m³ Air Compressor
Control System: PLC (Programmable Logic Controller) and Human-Machine Interface Operation Screen
Plastic Pallet Welding Machine Work Surface Travel Space:
1800mm x 1500mm x 200mm (L x W x H)
Dimensions: 1800mm x 1500mm x 200mm
Machine Dimensions: 2500*3500*2120mm
Weight: 4,500 kg
Plastic Pallet Heat Plate Welding Machine Design Concept
1. Designed according to customer specifications, this equipment features a maximum welding area of 1.8m x 1.5m. The upper cold mold and hot mold are bolted to the equipment's movable plate, while the lower cold mold utilizes a roller structure. The side employs an air-pneumatic positioning mechanism for automatic part alignment and removal. Electrical and pneumatic connections are made via quick connectors for convenience, speed, and time savings. Mold change mode: manual. The upper cold and hot molds use a whole modular structure for easy assembly and disassembly; the lower cold mold's fixed fixture is adjustable.

3. Equipment Structure: The entire machine is a frame structure, with an outer casing featuring a hinged door frame for easy mold replacement and equipment maintenance.

4. Transmission Section: The transmission section utilizes linear guide rails (Taiwan ABBA) to ensure stable equipment operation and high precision. Cylinders are used as power sources.

5. Electrical Control Section: The equipment's electrical control system utilizes a PLC control method (Delta) and a Chinese display touch screen (Delta).
Plastic pallet welding machine, standard thermal plate welder with non-standard design.
