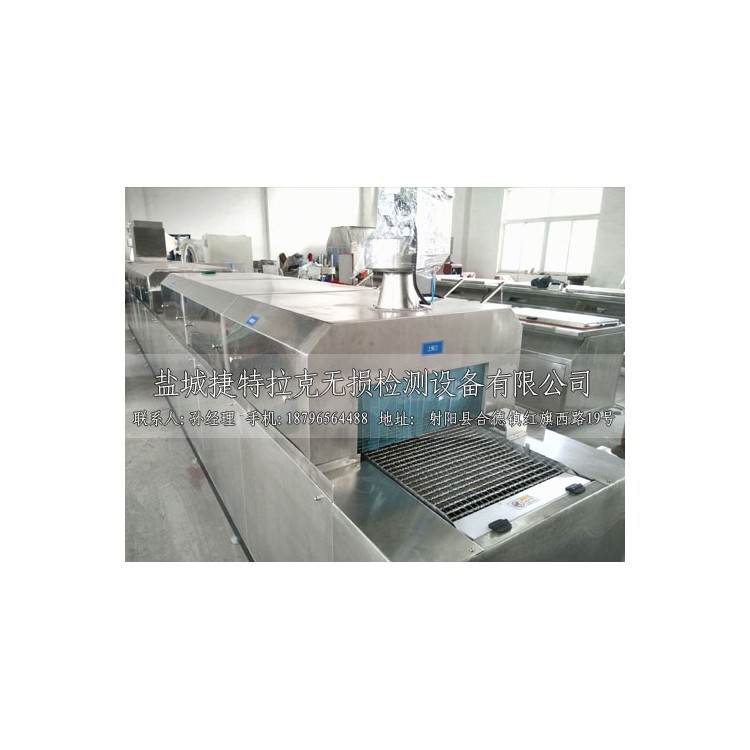

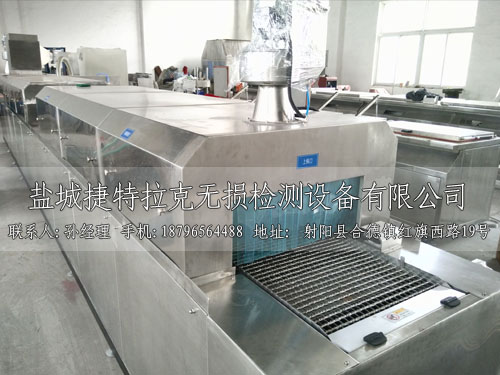

I. Design Requirements:
1. Part Name: Mechanical Parts 2. Rust Prevention Medium: Apply Rust Preventive Oil
II. Process Flow:
Feeding → Oil coating with atomizing spray (anti-rust oil) → Air blow-off → Unloading
III. Technical Specifications: (Tentative)
1. Workpiece loading width: 600mm, height: 880mm
2. Equipment dimensions: 3000×1400×1800 (L×W×H)
3. Conveying Speed: 0~1.5mm/min (Variable Frequency Speed Control), synchronized with the existing equipment.
4. Rust Prevention Medium: Rust Inhibiting Oil.
5. Fuel Tank Capacity: 0.4 m³ (Reusable)
6. Spray Lubricator Pump Power: 0.55 kW (Explosion-proof) (Rust-proof oil for part atomization and spray lubrication)
7. Compressed Air Pressure: 400-600 MPa
8. A complete oil mist treatment system. (After treatment, the residual oil mist is discharged externally.)
9. Method of Operation:
Automatic through-type, place the cleaned and dried workpiece at the loading opening of this machine, the workpiece will smoothly enter the conveyor belt through the connecting channel and automatically move to the anti-rust oil application station under the atomizing spray. The floating oil on the workpiece is blown off by compressed air and then discharged.
IV. Conveying System:
Composed of motor reducer, sprocket, stainless steel chain, main and driven shafts, conveyor belts, etc. The feed opening is equipped with a tensioning mechanism for adjustment during operation, and the discharge opening has an emergency stop button.
