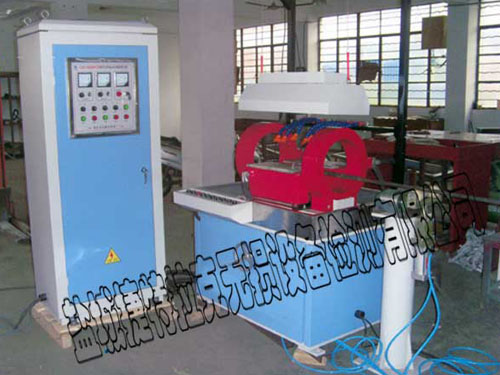

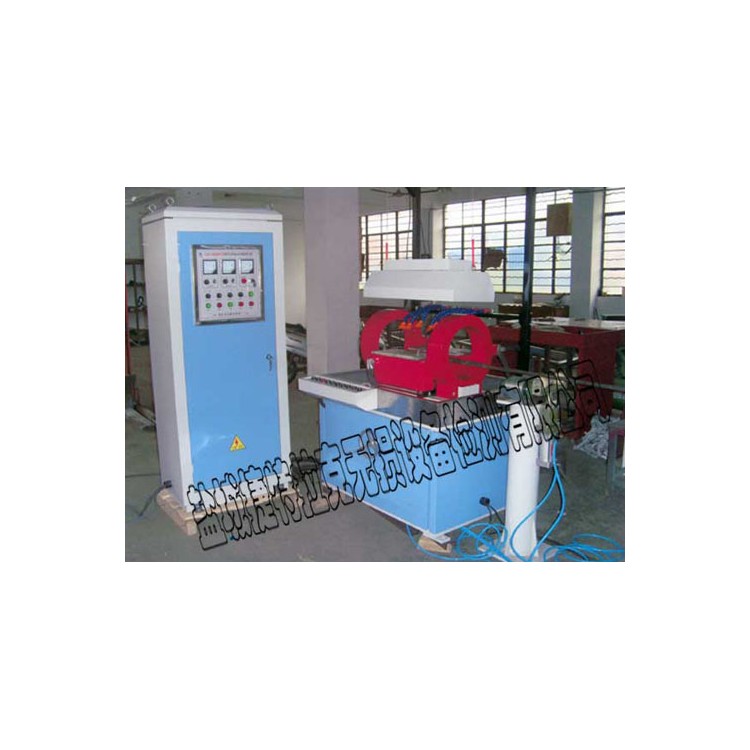

Main Technical Parameters of the Equipment
1. Axial magnetization magnetic potential: AC: 0～16,000AT RMS.
2. Vertical Magnetization Magnetic Potential: AC: 0~16000AT RMS.
3. Composite magnetization magnetic potential: Axial: 0-16,000A continuous adjustable, with power-off phase control; Radial: 0-16,000AT continuous adjustable, with power-off phase control.
4. Sensitivity: Clear longitudinal magnetic streaks are displayed circumferentially on the 15/50A type test strip.
5. Demagnetizing magnetic force: Continuously decays from 16000AT to 0.
7. Demagnetization Effect: Residual Magnetism on Workpiece Surface ≤ 0.3mT (3Gs)
10. Magnetic Particle Selection: Apply 400 mesh fluorescent magnetic suspension to the workpiece surface, concentration 10-25g/L; Equipment Configuration and Composition 1. Steel structure welding frame and sheet metal forming machine 1 set 2. Magnetization main circuit 2 sets 3. Circumferential magnetization unit 2 sets 4. Longitudinal magnetization unit 2 sets 5. Magnetic suspension spray recovery system (made of S304 corrosion-resistant stainless steel) 1 set 6. Magnetic suspension tank and mixing system (made of S304 corrosion-resistant stainless steel) 1 set 7. Omron PLC and electrical control system 1 set 8. KCZ2C-3 magnetization triggering system; 2 sets 9. Fluorescent lighting 1 set 10. Synthetic leather fluorescent darkroom 1 set
11. Manual Spray Gun - 1 Unit
12. Digital Gauges - Set of 2
13. Touchscreen 1 set
14. Conveyer Line - 1 Set
15. Demagnetization System - 2 Sets
