DS-2XS2245XM-LGL2T/C08S20/L

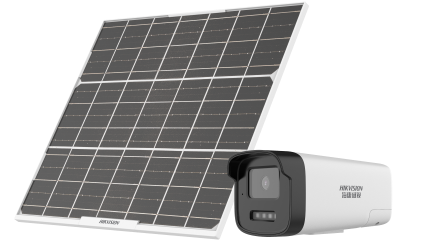

4MP Economy Low-Power Solar Pole Camera Kit (Final Edition)
Ideal for areas with limited power supply or remote locations, suitable for scenarios with high maintenance costs for equipment and strict requirements for stability, such as: power transmission lines, river management along waterways, oil and petrochemical pipelines, and key forest regions.
n Maximum resolution up to2560 × 1440 @12.5 fps |
n Supports Hikvision Interconnect |
n Smart Lighting, supports white lightInfrared dual illumination; infrared light reaches up to 30 m, white light up to 20 m. |
n SupportLTE-TDD/LTE-FDD 4G wireless network transmission, supports Micro SIM card |
n 1 built-in microphone, 1 built-in speaker, supports two-way voice communication |
n MeetsIP67 dustproof and waterproof design, high reliability |
n Specs and Parameters | |
Camera | |
Sensor Type | 1/3" Progressive Scan CMOS |
Minimum Illuminance | Color:0.005 Lux |
Shutter | 1 s~1/100,000 s |
Day and night toggle mode | ICRInfrared Filter Sheets |
Lens | |
Focal LengthField of View | 4 mmHorizontal Field of View:73.5°Vertical Field of View:39.7°Diagonal field of view angle:88° |
Maximum Aperture Count | F2.0 |
Lens mount size | M12 |
Fill Light | |
Grow light type | Infrared light, white light |
Fill Light Distance | Infrared light can reach up to30 mThe white light extends up to the farthest point.20 m |
Infrared wavelength range | 850 nm |
Anti-overexposure protection | Support |
Video | |
Maximum Resolution | 2560 × 1440 |
Main stream frame rate resolution | 50 Hz：12.5 fps（2560 × 1440，1920 × 1080，1280 × 720） |
Video Compression Standards | Master Stream:H.265 |
Video compression bit rate | 32 Kbps~8 Mbps |
H.265 encoding type | Main Profile |
Bit Rate Control | Set bit rate, variable bit rate |
Audio | |
Audio Compression Standards | G.711alaw |
Audio Compression Bit Rate | 64 Kbps（G.711alaw） |
Audio Sampling Rate | 16 kHz |
Environmental Noise Filtration | Support |
Network Transmission | |
Simultaneously preview the routes | Up to6Road |
Interface ProtocolAPI） | Fluorspar Cloud |
User Management | Up to32A user |
Client | Hikvision Interconnect |
Mobile Communication Parameters | |
Standard | LTE-TDD/LTE-FDD |
Frequency Band | LTE-TDD：Band 34/38/39/40/41 LTE-FDD：Band 1/3/5/8 |
Image | |
Image Settings | Mirror, Saturation, Brightness, Contrast, SharpnessAGCWhite balance can be adjusted through the client or browser. |
Day/Night Switch Mode | Day and night, automatic and timed switching |
Image Enhancement | Backlight compensation, strong light suppression.3DDigital Noise Reduction |
Wide Dynamic Range | Digital Wide Dynamic Range |
Interface | |
Audio | 1An integrated microphone,1An integrated speaker |
Reset | Support |
Event | |
Standard Event | Motion Detection (Supports Human Detection) |
Mechanical linkage | UploadSDCard,Upload Center,Video,Capture screenshot,Audio Alarm |
General specifications | |
Product Dimensions | 80.7 × 83.7 × 171.7 mm |
Packaging Dimensions | 216 x 121 x 118 mm |
Equipment Weight | 380 g |
Net Weight with Packaging | 500 g |
Startup and operating temperature and humidity | -20 ℃~50 ℃, humidity less than95%(Non-Condensing) |
Universal Functions | Heartbeat, password protection, watermark technology |
Restore to factory settings | SupportRESETPress key, client restores |
Current and Power Consumption | DC：12 V，0.58 AMaximum Power Consumption:7 W |
Power Supply Method | DC：9 V~12.6 V |
Power Interface Type | Four-coreM8Plug |
Battery | |
Battery Type | Lithium-ion Battery |
Battery Capacity | 80 Wh |
Charge Limit Voltage | 12.6 V |
Battery Voltage | 9 V ~ 12.6 V |
Battery life | Energy-saving Continuous Recording Mode (Detection Interval)2sPlease alarm daily50Next, preview10(Minutes)20Sky |
Service Life | Recirculation300Guaranteed capacity.80%Above |
Battery Weight | Reference Solar Power Supply Parameters |
Battery Charging Temperature | 0 °C~45 °C |
Battery Discharge Temperature | -20 °C~50 °C |
Battery Storage Temperature | 1Year:-20 ~ 25 °C ≤65% RH |
Certification | |
Protective | IP67 |
Solar Power Supply Parameters | |
Solar Panel Types | Monocrystalline Silicon |
Solar panel conversion efficiency | ＞22% |
Solar panel dimensions/Weight | Solar Power Supply Kit with Packaging Dimensions:400 x 360 x 145 mm |
Wind Resistance Grade of Bracket | 8Grade |
