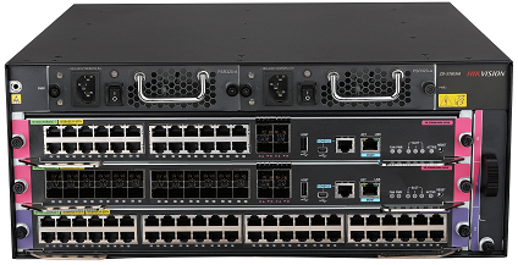

• ZD-S7803M Ethernet Switch Chassis
• Featuring innovative hardware design, the system is powered by a robust control engine, detection engine, and maintenance engine, all independently controlled in a fully distributed manner, ensuring milliseconds-level high reliability.
• Offer comprehensive security protection mechanisms, ensuring network safety across three dimensions: control, management, and forwarding. On the control plane, an integrated protocol message attack identification module prevents attacks such as TCN, ARP protocol messages. OSPF/BGP/IS-IS routing protocols use MD5 verification to prevent network paralysis caused by illegal routing update messages. On the management plane, SNMPv3 network management protocol, SSH V2, user identity authentication based on 802.1x, AAA/Radius, and hierarchical user permission management ensure the security of device management.
• Supports virtualization technology, allowing multiple frame switches to be interconnected, virtualizing them into a single logical frame switch. Users can manage and use these multiple devices as a single unit.
• Supports robust ACL capabilities: Supports standard and extended ACLs; supports VLAN-based ACLs for user-friendly configuration and resource conservation; supports inbound and outbound ACLs to meet strict access control requirements for industries like finance.
• Features a fault-tolerant design with redundant components such as the main control board, power supply, and fans; a passive backplane prevents single points of failure in the chassis; all circuit boards and power modules support hot-swap functionality; the device can operate stably for extended periods in harsh environments, achieving telecommunication-grade reliability of 99.999%.
• Full support for IPv4/IPv6 dual-stack, with various tunneling technologies and IPv4/IPv6 multicast capabilities, providing a comprehensive IPv4/IPv6 solution for users.
• Supports Multi-VRF feature, can be used as an MCE device
Support RRPP ring network technology

Functional Features

Exchange Method:

Store and Forward

QoS：

Supports traffic shaping; supports 802.1P/DSCP priority marking/remarking; supports hierarchical QoS (H-QoS), supports three-level queue scheduling; supports queue scheduling mechanisms including SP, WRR, SP+WRR, CBWFQ; supports congestion avoidance mechanisms including Tail-Drop, WRED; supports Mirroring

VLAN：

Support VLAN segmentation based on port, protocol, subnet, and MAC; support SuperVLAN, PVLAN; support Multicast VLAN+ for forwarding relying solely on VLAN-ID, without MAC address learning; support VLAN MAPPING/ flexible QinQ

STP：

Supports STP/MSTP/RSTP

Multicast:

Supports IGMPv1/v2/v3, IGMPv1/v2/v3 Snooping; Supports IGMP Filter, IGMP Fast Leave; Supports PIM-SM/PIM-DM/PIM-SSM; Supports MSDP; Supports Anycast-RP; Supports MLDv2/MLDv2 Snooping; Supports PIM-SMv6, PIM-DMv6, PIM-SSMv6

Safety Features:

Supports Portal, MAC, IEEE 802.1x authentication, and IEEE 802.1x SERVER; supports AAA/Radius; supports SSHv1.5/SSHv2; supports ACL flow filtering mechanism; supports plaintext and MD5 encrypted authentication for OSPF, RIPv2, and BGPv4 messages; command-line hierarchical protection to prevent unauthorized access, with different configuration permissions for users of various levels; supports restricted IP address Telnet login and password mechanism; supports multiple combinations of IP address, VLAN ID, MAC address, and port bindings; supports uRPF; supports master and backup data backup mechanism; supports fault alerting and self-recovery.

Management and Maintenance:

Supports FTP, TFTP, Xmodem; supports SNMP v1/v2/v3; supports sFlow traffic statistics; supports RMON; supports NTP clock; features online device status monitoring mechanism for detecting critical components such as the master control engine, backplane, and storage.

IPv4 Routing:

Supports ARP Proxy, DHCP Relay, DHCP Server, static routing, RIPv1/v2, OSPFv2, IS-IS, BGPv4; supports equivalent routing, policy routing, routing policies

IPv6 Routing:

Supports ICMPv6, ICMPv6 Redirect, DHCPv6, ACLv6, OSPFv3, RIPng, BGP4+, IS-ISv6; supports manual tunneling, ISATAP, 6to4 tunnel, dual-stack IPv6 and IPv4

ACL：

Supports Standard and Extended ACLs; supports VLAN-based ACLs; supports Ingress/Egress ACLs, Ingress/Egress CARs with granularity up to 8Kbps; supports two-tier Metering capability; supports VLAN Aggregated CAR, MAC Aggregated CAR features.

Message Suppression

Support port broadcast/multicast/unknown unicast storm suppression

Virtualization:

Supports virtualization

NTP：

Supports NTP clock

DHCP：

Supports DHCP

MPLS：

Supports L3 MPLS VPN; Supports L2 VPN: VPLS, VLL (Martini, Kompella); Supports MCE; MPLS OAM support; Hierarchical VPLS, as well as QinQ+VPLS access; P/PE function support; LDP protocol support

Performance Parameters

Exchange Capacity:

38.4Tbps/168Tbps

Packet Forwarding Rate:

7200Mpps/36000Mpps

Software Features

General Specifications

Number of Slots:

3

Number of business slots

1~2

Weight:

≤30kg

Fan:

Chassis included

Dimensions (Length x Height x Depth):

436mm x 175mm x 420mm

Operating Temperature:

0℃～45℃

Operating Humidity:

5% to 95% (Non-condensable)

Power Supply Method:

AC： 100V～240V

Installation Method:

Cabinet-style
