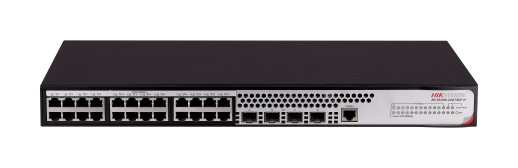

• Three-layer managed switch, 24 Gigabit Ethernet ports, 4 Gigabit fiber optic ports
• Exchange Capacity: 396Gbps/3.96Tbps, Packet Forwarding Rate: 96Mpps/144Mpps
• Maximum number of terminals per unit: 500; Maximum number of IPC terminals per unit: 300 (400W)
• Supports dynamic routing for IPv4 and IPv6, OSPF, RIP, and static routing
• Supports ACL, VLAN, ARP rate limiting, STP/RSTP/MSTP, LACP, and other function configurations
• Supports security configurations like IPSourceGuard, offering a variety of ARP defense features
• Supports dual IPv4/IPv6 protocol stacks and various authentication methods, including 802.1X authentication and centralized MAC authentication.
• Supports virtualization technology
• Supports easy-to-debug APP management, one APP to manage security and network

Feature Specifications

Flow Control:

Supports 802.3x flow control and half-duplex backpressure flow control

Exchange Method:

Store and Forward

Link Aggregation

Supports GE/10GE port aggregation; supports static/dynamic aggregation; supports cross-device aggregation

Port Mirroring

Port mirroring supported; Stream mirroring supported

QoS：

Supports packet filtering; supports SP/WRR/SP+WRR queue scheduling; supports bidirectional ACL; supports port-based bandwidth limitation; supports flow-based redirection

VLAN：

Supports Port-based VLAN; supports QinQ; supports Voice VLAN; supports Protocol VLAN; supports MAC VLAN

STP：

Supports STP/RSTP/MSTP

Safety Features:

Supports user分级 management and password protection; supports SSH2.0; supports port isolation; supports 802.1X; supports port security; supports MAC address authentication; supports IP Source Guard; supports HTTPS; supports EAD

IPV4 Routing:

Static Routing, RIP, OSPF

IPv6 Routing:

Static Routing, RIP, OSPF

ACL：

Supports packet filtering; supports SP/WRR/SP+WRR queue scheduling; supports bidirectional ACL; supports port-based speed limiting; supports flow-based redirection

Virtualization:

Supports virtualization stacking technology

NTP：

Supports NTP Clock

Performance Parameters

Exchange Capacity:

396Gbps/3.96Tbps

Packet Forwarding Rate:

96Mpps/144Mpps

VLAN Capacity:

4K

General Parameters

Port:

24 *10/100/1000TX+ 4*SFP

Weight:

<2.5kg

Dimensions (Length x Height x Depth):

440mm × 43.6 mm × 160mm

Operating Temperature:

-5℃～45℃

Operating Humidity:

5% to 95% (non-condensable)

Power Supply Method:

100V～240V AC，50/60Hz

Installation Method:

Rackmount (1U height, 19-inch width)

Overall Power Consumption:

MIN:AC:9W，MAX:AC:23W
