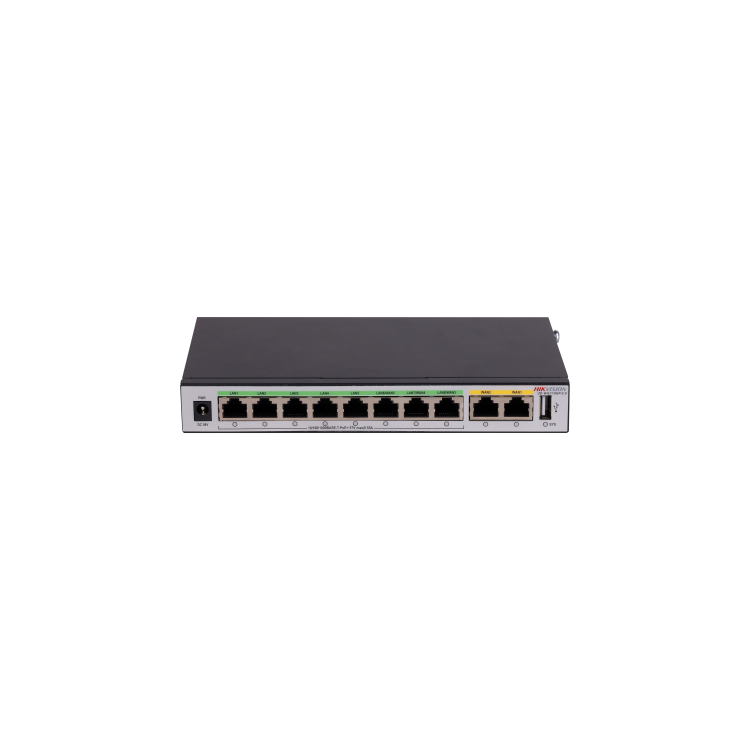

• Desktop 10-Port Gigabit Wireless Controller Gateway ZD-WG210GP-E-S
• 10 Gigabit Ethernet ports, default 2 WANs, 8 LAN ports, minimum of 2 WANs, supports switching to 5 WAN mode.
• Recommended machine quantity: 250
• Recommended Bandwidth: 1000M
• Built-in AC function, manages AP specifications for 200 units;
• Offers 8 PoE+ ports, supporting IEEE 802.3af/at, with a maximum output power of 110W.
• Supports IPSec VPN, L2TP VPN;
• Supports firewall filtering policies;
• Supports identification and control of common internet applications;
• Supports multiple WAN link load balancing modes;
• Support MAC address whitelist and blacklist;
• Supports ARP protection;
• Supports anomaly host traffic protection feature;
• Supports easy-to-debug app management.

Network Parameters

Machine Capacity:

250

Recommended Bandwidth:

1 Gbps

IPSec Encryption Performance:

150 Mbps

Number of IPSec VPN tunnels:

100

NAT Session Count:

80,000

Management Specifications:

Gateway Mode: 200 APs

QoS：

Supports traffic limitation per IP, supports traffic limitation based on user groups, and includes green channel functionality.

NAT mapping table entry:

100

WAN Access:

Supports fixed IP address, DHCP automatic address acquisition, PPPoE dial-up, and other methods; features link status detection; supports ICMP, DNS, NTP, and other detection methods; supports static routing and policy routing.

Multi-WAN Load Balancing:

Supports load balancing based on destination address of the carrier, load balancing based on link bandwidth, load balancing based on user (IP address), support for policy-based routing to specify line forwarding, and end-to-end link detection and backup functionality.

LAN：

Support VLAN segmentation, MAC address learning, broadcast storm suppression, and traffic mirroring function

VPN Features:

Supports IPSec VPN, 100 IPSec connections supported, AH and ESP protocols supported (ESP supports 3DES, AES encryption algorithms), IKE for automatic secure association setup, MD5 and SHA-1 authentication algorithms supported, IKE Main Mode and Aggressive Mode supported, NAT-T traversal supported, IPSec connection configuration via domain name (DDNS) supported, L2TP VPN (LAC and LNS) supported.

AP Management Capabilities:

Supports centralized management for S series wireless APs, supports enabling/disabling AP management features, supports Wi-Fi configuration, supports AP list display, supports AP information display, supports AP information refresh, supports AP information deletion, supports log collection & configuration, supports AP restart, supports AP reset, supports individual AP management, supports AP version upload (supports uploading only one version), supports AP version upgrade, supports SSID binding to different VLANs, supports multi-SSID configuration, supports client list display

Safety Features:

Supports firewall filtering policies based on source and destination addresses, ports; MAC address filtering function; MAC address whitelist and blacklist; HTTP and HTTPS protocol URL filtering; website whitelist and blacklist; keyword fuzzy matching; HTTP download file filtering; ARP scanning, detection, and protection; DDoS attack prevention and statistics; IP address and interface connection count limitations; protection against abnormal host traffic; IP address traffic statistics and ranking; identification and control of common internet applications such as Douyin, iQIYI, Youku Video, JD.com, Taobao, etc.; support for filtering and rate limiting of identified application traffic.

Business Port

WAN Ports: 5*GE (3 WAN ports support switching to LAN), LAN Ports: 8*GE (3 LAN ports support switching to WAN), PoE Ports: 8*PoE+ ports, supporting IEEE 802.3af/at, maximum output power of the entire unit 110W

General Parameters

Weight:

0.5 kg

Operating Temperature:

0 °C - 40 °C

Operating Humidity:

5% - 95% (Non-condensable)

Installation Method:

Desktop

Product Dimensions (Width x Height x Depth):

202 mm × 105 mm × 28 mm

Overall Power Consumption:

120W (including PoE)
