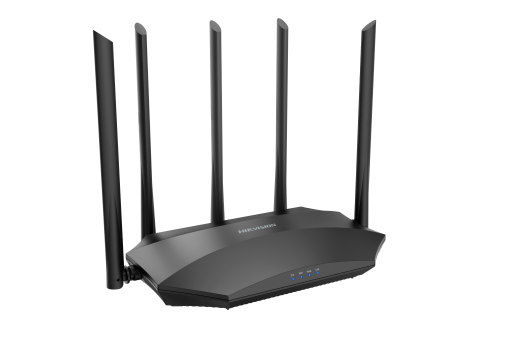

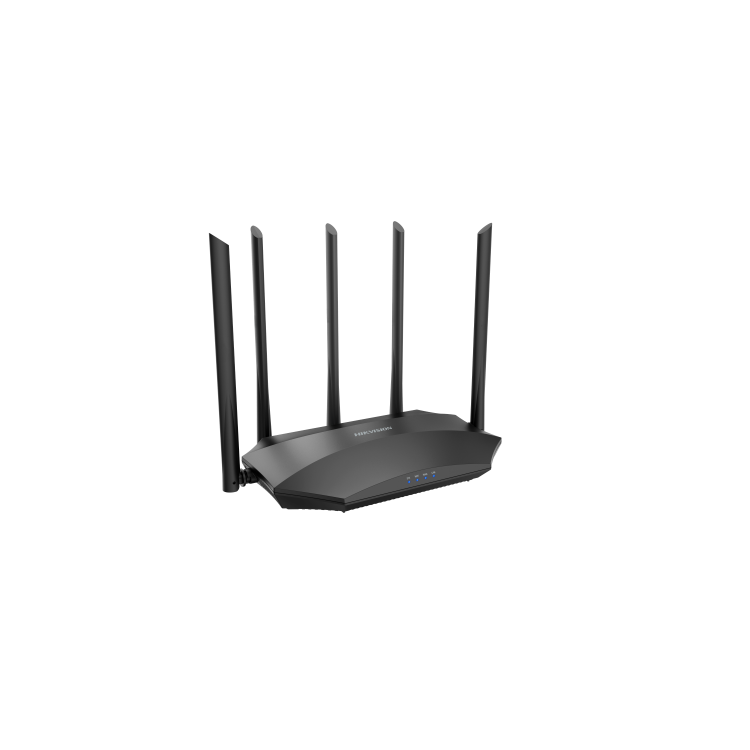

Model: ZD-WR-C1220

• High Gain 5 Antenna Design, Stronger Signal: Features a 5 high-gain omnidirectional antenna design, offering a 50% improvement in coverage efficiency compared to a dual-band router with 4 standard antennas.
• Unique Signal Amplification Technology, Penetrates Walls Better: Utilizes wireless signal enhancement technology, 2.4GHz & 5GHz dual-band WiFi signal enhancement module, stronger wall-penetrating WiFi capability, and longer transmission range.
• 2nd Gen 11ac technology MU-MIMO, supports more devices and offers faster network speeds.

Wireless Parameters

Wireless Standard:

IEEE 802.11/a/n/ac wave2 @ 5GHz，IEEE 802.11b/g/n @2.4GHz

Maximum Throughput Rate:

1200Mbps

Antenna:

5 high-gain antennas

Features

Application Features:

Supports wireless router mode, wireless repeater mode (Client+AP, WISP), AP mode; Supports WPA-PSK, WPA2-PSK, WPA, WPA2 security modes; Supports DHCP server; Supports guest network configuration; Supports signal adjustment; Supports wireless scheduling on/off; Supports software upgrade, device restart, network time, system logs.

Interface

Network port:

1 x 10/100Mbps WAN port, 3 x 10/100Mbps LAN ports

LED Indicator Lights:

SYS system indicator light

Universal Parameters

Operating Temperature:

0°C to 40°C

Operating Humidity:

10% - 90% RH (non-condensing)

Storage Temperature:

-40℃ to 70℃

Storage Humidity:

5% - 90% RH (non-condensing)

Installation Method:

Desk-top

Power Supply Method:

DC 9V

Product Dimensions:

229.16*141.70*41.91mm

Overall Power Consumption:

6.9W
