Shandong Zhongjie Special Equipment Co., Ltd. specializes in the following products: fuel (gas) boilers, organic heat carrier boilers, biomass boilers, waste heat recovery boilers, and other boiler products; vacuum insulation cryogenic pressure vessels such as LNG tanks, oxygen/nitrogen/argon tanks, and CO2 tanks; pressure vessel products including denitrification engineering equipment, heat storage and energy storage equipment, and complete chemical equipment sets; central air conditioning and HVAC equipment such as ground (water) source heat pumps, air source units, water-cooled screw chillers, and air-cooled modular units. Planned products include large-scale energy centers, LNG transport vehicles, LNG tank containers, and other green energy equipment.

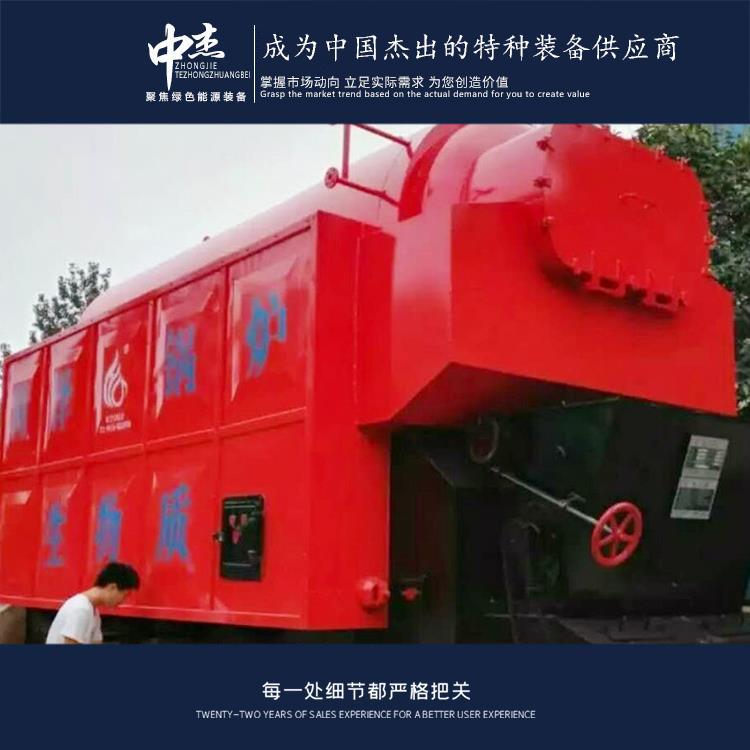

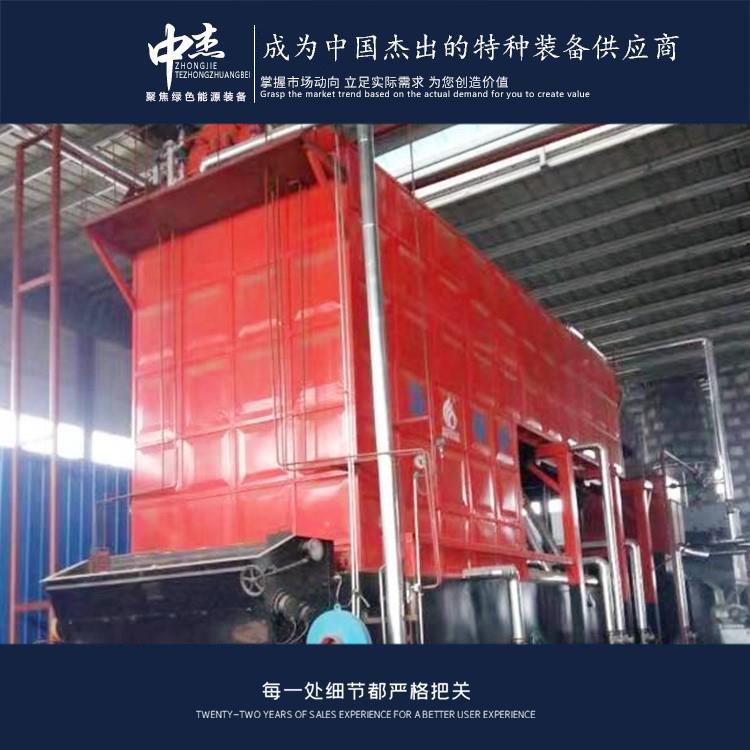

Chain-grate biomass boiler, also known as a chain grate biomass boiler, is a special type of biomass boiler. It uses a chain grate as the fuel conveying and combustion device.
Chain grate is composed of a series of interconnected chains, with evenly spaced grate plates distributed along the chains. Fuel is transported from one end of the furnace to the other through the movement of the chain grate, while simultaneously combusting within the furnace.
The working principle of the chain biomass boiler is: the fuel is evenly distributed on the chain grate, and as the chain moves, the fuel gradually moves towards the outlet of the furnace chamber. Inside the furnace, the fuel is thoroughly mixed with air, releasing thermal energy through combustion reactions. At the same time, the design of the grate plates and the movement of the chain ensure uniform and complete combustion of the fuel.
Chain biomass boiler features include:
Adaptable: Chain grate stokers can accommodate various biomass fuels such as wood chips, straw, etc., demonstrating strong fuel adaptability.
High combustion efficiency: The design of the chain grate ensures even and complete combustion of fuel, enhancing combustion efficiency.
Operation Stable: The movement of the grate in the chain grate boiler is stable, ensuring reliable fuel delivery and combustion, leading to high operational stability of the boiler.
Suitable for large-capacity boilers: Chain biomass boilers are suitable for large-capacity boiler systems and can meet the needs of the industrial and heating sectors.
Chain biomass boilers are widely used in the field of biomass energy utilization, effectively utilizing biomass fuel to achieve sustainable energy use.

A hot water boiler is a device used for supplying hot water. With the increasing demand for energy and environmental awareness, hot water boilers have seen continuous development and improvement in technology and application.
Below are the trends in the development of hot water boilers:
Energy-saving: The energy-saving of hot water boilers is an important direction for development. By improving the combustion technology of boilers, the design of heat exchangers, and material selection, enhance the efficiency of heat energy utilization, and reduce energy consumption and emissions.
Temperature control intelligence: With the advancement of intelligent technology, the temperature control systems of hot water boilers are becoming increasingly intelligent. Through the adoption of control algorithms and sensor technology, temperature control and energy consumption management are achieved, enhancing system stability and comfort.
Multi-energy supply: To reduce reliance on traditional energy sources, the trend in hot water boiler development is towards multi-energy supply. In addition to the traditional energy sources like gas and oil, an increasing number of hot water boilers are now utilizing renewable energy sources such as biomass, solar energy, and geothermal, achieving energy diversity and sustainable development.
Environmental Protection and Emission Reduction: Environmental protection and emission reduction is a key direction for the development of hot water boilers. By improving combustion technology, adding flue gas purification equipment and control systems, we reduce pollutant emissions during the combustion process, protecting the environment and human health.
Safety and Reliability: The safety and reliability of hot water boilers are crucial for development. By enhancing the structural design of the boiler, improving the safety valve and control system, we enhance the safety performance of the boiler to prevent accidents.
Miniaturization and Modularization: With the acceleration of urbanization, there is a clear trend towards miniaturization and modularization in hot water boilers. These miniaturized hot water boilers can better adapt to the needs of urban buildings, reducing floor space and installation costs, and enhancing flexibility and scalability.
Overall, the development trends of hot water boilers are towards energy saving, intelligence, multi-energy supply, environmental protection and emission reduction, safety and reliability, miniaturization, and modularization. These trends will drive continuous innovation and application of hot water boiler technology, providing people with more comfortable, reliable, and environmentally friendly hot water supply.

Possible reasons for the black smoke produced by biomass boiler combustion may include:
Incomplete Combustion: Inadequate oxygen supply or insufficient combustion temperature in biomass fuel can lead to incomplete combustion, resulting in a large amount of smoke and black smoke. This may be caused by poor combustion chamber ventilation, poor fuel quality, or incorrect setting of combustion parameters.
High moisture content: Excessive water content in biomass fuel can lead to a large amount of steam evaporation during combustion, lowering the combustion temperature and affecting the combustion efficiency, resulting in the production of black smoke.
Fuel Quality Issues: Impurities, ash, or uneven moisture content in biomass fuel can affect the combustion process, leading to incomplete combustion and the production of black smoke.
Combustion Equipment Issues: If there are malfunctions or wear in the combustion equipment of a biomass boiler, such as slagging in the combustion chamber or clogging of the burner, it can affect the combustion efficiency and lead to the production of black smoke.
To reduce the emission of black smoke, the following measures can be taken:
Ensure adequate oxygen supply: Adjust the ventilation system of the combustion equipment to ensure sufficient oxygen supply, enhance combustion efficiency, and reduce the production of black smoke.
Control combustion temperature: Adjust combustion parameters such as temperature and time to ensure complete fuel combustion, reducing the emission of black smoke.
Optimize fuel quality: Select a biomass fuel in the right quantity, ensuring consistent dryness and quality, reducing moisture content and impurities, and enhancing combustion efficiency.
Regular Maintenance: Perform regular maintenance on biomass boilers to clean the combustion chamber, burners, and other components, ensuring the equipment operates smoothly and reducing the emission of black smoke.
Install Pollutant Control Equipment: As required, install flue gas purification equipment such as dust collectors and desulfurization devices, effectively removing particles generated during the combustion process.

In the technical aspect of biomass boilers, the following three issues need to be addressed with emphasis:
Enhanced Combustion Efficiency: Biomass fuel has distinct characteristics from traditional fossil fuels, and during combustion, it tends to produce particulates like straw and wood chips, leading to lower combustion efficiency. Therefore, it is necessary to develop and improve combustion systems, optimize the combustion process, enhance combustion efficiency, and reduce energy waste.
High-Temperature Corrosion Issue: Ash and elements like chlorine in biomass fuels can easily cause corrosion at high temperatures, damaging the metal components of boilers. To address the high-temperature corrosion issue, the development and application of corrosion-resistant materials, as well as controlling the combustion conditions, are necessary to minimize corrosion.
Ash handling and utilization: Biomass fuel combustion generates a large amount of ash, including waste, ash content, and unburnt materials. The handling and disposal of ash is a critical issue, requiring the development and application of ash handling technologies, including ash recycling, resource utilization, and chemical treatment.
By addressing these three issues, we can further enhance the combustion efficiency of biomass boilers, reduce corrosion risks, effectively manage and utilize ash and slag, and promote the sustainable development of biomass energy.
Shandong Zhongjie Special Equipment, welcome customers to our factory for business discussions.
