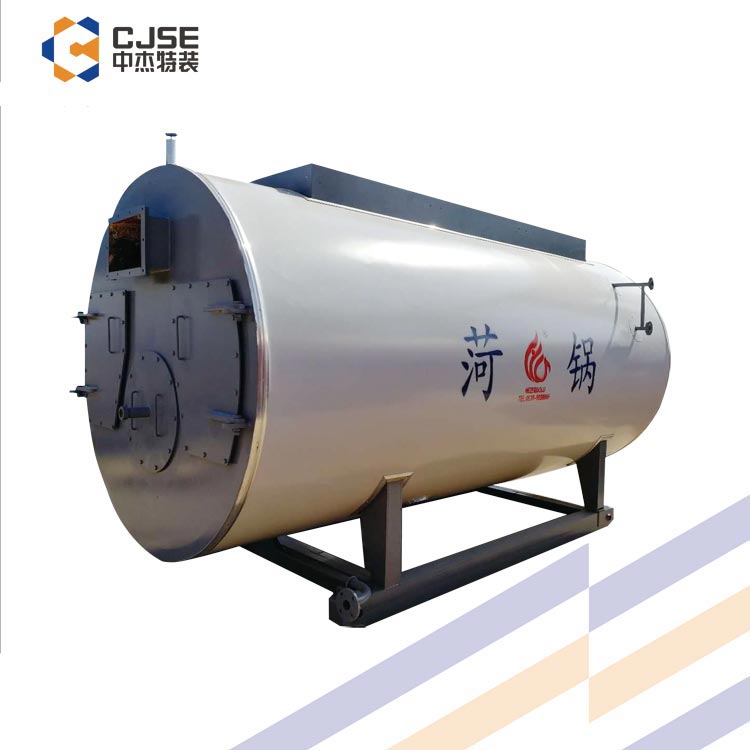

Shandong Zhongjie Special Equipment's main products include: fuel (gas) boilers, organic heat carrier boilers, biomass boilers, waste heat boilers, and other boiler products; vacuum insulation cryogenic pressure vessels such as LNG tanks, oxygen/nitrogen/argon tanks, and CO2 tanks; pressure vessel products such as denitrification engineering equipment, heat storage and energy storage equipment, and complete chemical equipment sets; central air conditioning and ventilation equipment like ground (water) source heat pumps, air source units, water-cooled screw units, and air-cooled modular units. Planned products include large-scale energy centers, LNG transport vehicles, LNG tank containers, and other green energy equipment.
Steam boiler blowdown devices mainly include the following types: Blowdown Valve: A blowdown valve is commonly installed on steam boilers to discharge sludge and impurities within the boiler. The valve is typically located at the bottom or side of the boiler, and by opening the valve, sludge can be expelled to maintain internal cleanliness. Blowdown Pump: For large steam boilers or situations requiring remote sludge disposal, a blowdown pump may be used. The pump can remove sludge from the boiler and transport it through pipes to designated discharge points. Automatic Blowdown System: Some steam boilers are equipped with automatic blowdown systems. These systems can automatically discharge sludge from the boiler based on pre-set time intervals or sludge concentration, enhancing efficiency and accuracy. Sewage Treatment Equipment: In certain cases, steam boilers may require sewage treatment equipment. These units process the discharged sludge to remove impurities and pollutants, meeting environmental protection requirements. It is important to note that the selection and use of steam boiler blowdown devices should be determined based on the specific type, scale, and operating environment of the boiler. When using blowdown devices, follow relevant operational procedures and safety requirements to ensure a safe and effective blowdown process.

To optimize and improve the planning of gas-fired boilers, consider the following aspects: 1. Energy Audit and Assessment: Conduct a comprehensive energy audit and assessment to understand the energy consumption of the gas boiler system and identify potential energy-saving opportunities. Through data analysis and energy measurement, determine the main sources of energy consumption and bottlenecks, providing a basis for subsequent optimization. 2. Combustion System Optimization: Optimize the combustion system of the gas boiler, including adjustments and cleaning of burners, control of the ratio of gas and air, and maintenance of the combustion chamber. Ensure high combustion efficiency and high gas utilization rate, reducing energy waste. 3. Heat Recovery Utilization: Consider installing heat recovery devices such as waste heat recovery units or flue gas heat exchangers. These devices can utilize the excess heat in the flue gas emitted by the gas boiler to heat water or other equipment requiring heat energy, improving energy efficiency. 4. Pipe Insulation and Leak Inspection: Ensure that the insulation performance of the gas and hot water pipes is good, reducing energy loss. Regularly inspect for pipe leaks and repair them promptly to avoid energy waste and safety hazards. 5. Control System Upgrade: Consider upgrading the control system of the gas boiler to adopt automated control technology. Through precise control and adjustment, achieve efficient operation of the gas boiler.

The necessity of flow control in thermal oil heaters is primarily reflected in the following aspects: 1. Heat Transfer Efficiency: The efficiency of heat transfer in thermal oil heaters is closely related to the flow rate of the thermal oil. An appropriate flow rate ensures that heat is fully transferred in the heat exchanger, enhancing the efficiency of heat utilization. An excessively low flow rate may result in insufficient heat exchange and affect the heat transfer effect, while an excessively high flow rate will increase energy consumption and operating costs. 2. Temperature Control: Flow control in thermal oil heaters is also closely related to temperature control. By adjusting the flow rate of the thermal oil, the temperature inside the furnace can be controlled, ensuring stable operation within the set working temperature range. An excessively low flow rate may lead to excessive temperature, and an excessively high flow rate may cause the temperature to drop too low, both of which can affect the normal operation of the equipment. 3. System Stability: An appropriate flow rate of thermal oil can improve system stability. Through flow control, the supply and demand of heat can be balanced, avoiding overheating or cooling, and maintaining stable system operation. Stable operation helps to extend the service life of the equipment and reduce the frequency of failures and repairs. 4. Safety: Flow control in thermal oil heaters is also closely related to safety. Appropriate flow control can prevent excessive accumulation of thermal oil in the system, reducing the risk of leakage and explosion. Additionally, flow control can ensure that the system pressure remains within a safe range, avoiding overpressure and other safety issues. In summary, flow control in thermal oil heaters is necessary for improving heat transfer efficiency, temperature control, system stability, and safety. Through reasonable flow control, the operation of thermal oil heaters can be optimized, energy utilization efficiency can be increased, operating costs can be reduced, and the safety and stable operation of the equipment can be ensured.

To reduce the operating costs of gas boilers, consider the following aspects: 1. Combustion System: Ensure the stability of the combustion system in the gas boiler. Regularly inspect and maintain the burners, clean the nozzles and combustion chamber, adjust the ratio of gas to air to enhance combustion efficiency and reduce gas waste. 2. Energy-Saving Control Systems: Install and utilize energy-saving control systems such as smart thermostats and timers. These systems can automatically adjust the boiler's operating status based on actual needs, avoiding unnecessary energy waste. 3. Regular Maintenance: Conduct regular maintenance on gas boilers, including cleaning heat exchangers, inspecting and replacing seals, and clearing gas pipes. Maintain the boiler's normal operation to reduce energy loss and prevent breakdowns. 4. Heat Recovery: Consider installing heat recovery devices such as waste heat recovery units or flue gas heat exchangers. These devices can utilize the excess heat from the flue gas emitted by the gas boiler to heat water or other equipment requiring heat, improving energy efficiency. 5. Pipe Insulation and Leak Checks: Ensure that the insulation of gas and hot water pipes is effective to reduce energy loss. Regularly check for pipe leaks and make timely repairs to avoid energy waste and safety hazards. 6. Energy Management and Monitoring: Establish an effective energy management system to monitor and analyze the energy consumption of gas boilers. Through data analysis and optimizing operating strategies, identify energy-saving potential and improvement directions. 7. Training and Awareness: Provide employee training to enhance awareness of operating and maintaining gas boilers. Employee knowledge and skill improvement helps in better management and operation of gas boilers, reducing operating costs. By considering these factors comprehensively, you can effectively lower the operating costs of gas boilers.
Our company highly values technological innovation and R&D design. We have 1 municipal-level enterprise technology center in Heze City, equipped with non-destructive testing, physical and chemical testing, welding testing, hydrostatic testing, and other testing facilities. We have over 600 types of equipment, including CNC machine tools, X-ray flaw detectors, digital ultrasonic flaw detectors, mechanical property testing machines, chemical analyzers, spectrometers, tensile testing machines, plasma welding machines, and more. Our key products such as temperature and pressure vessel welding, biomass boiler emission reduction, and waste heat recovery have successively been included in multiple Shandong Provincial Department of Industry and Information Technology science and technology projects, Shandong Provincial key projects, and Heze City innovative and excellent projects. We have accumulated 27 authorized utility models, 16 authorized inventions, participated in drafting 2 standards, 2 industry standards, and registered 15 trademarks. Our technical team, in collaboration with Professor Li Yajiang of Shandong University, has developed deep cryogenic vessel processing technology using the internationally recognized plasma arc + filler wire tungsten inert gas (PAW-GTAW) welding technology. The provincial-level scientific and technological achievement evaluation has determined that our technology level in deep cryogenic vessel manufacturing has reached international standards.
Choose ZJET Customized Solutions, let's create brilliance together!
