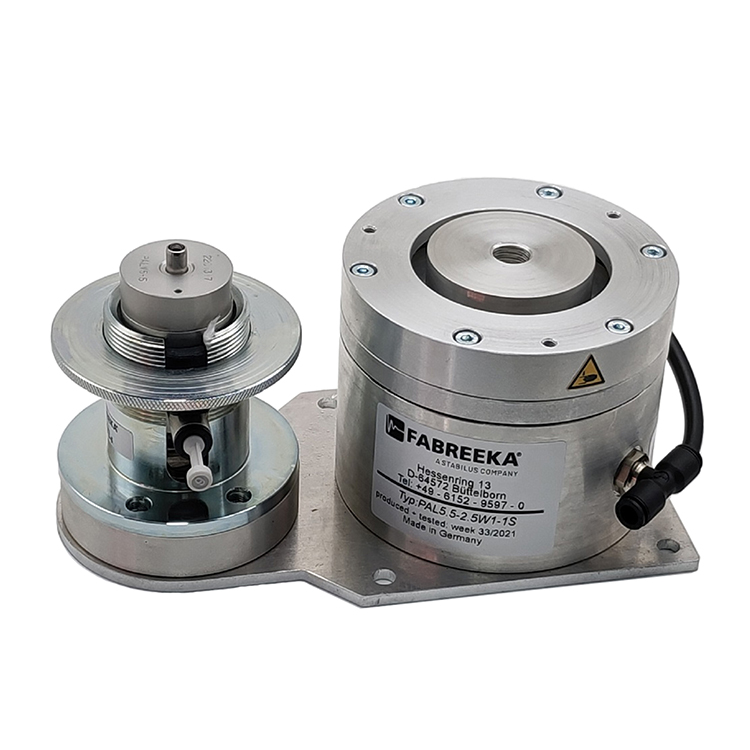

Standard dampers are available in various heights.1.5HzPlease provide the Chinese content to be translated.2.7HzThe inherent frequency. The inherent frequency of certain custom models can be as low as0.5HzThe complete system includes at least 3 active dampers (as three points determine a plane). Each damper has a horizontal adjustment valve, which serves as the load sensor and height control unit. The number of required auxiliary dampers can be increased based on the weight of the equipment. The damper system will be equipped with a control unit, an automatic height control valve, connected piping, and other installation accessories.

Function:PALThe damper can automatically return to the original horizontal position, allowing for a quick response to changes in the supported load and the shift of the center of gravity. The performance of the air-borne vibration damping system requires a balance among the damper's natural frequency, the accuracy of the horizontal adjustment valve, and the system reset time. The settling time refers to the time it takes for the damper to return to the initial set position for a given input disturbance vibration. This disturbance can be from external sources or the machine itself, such as the operation of a gantry crane or machine frame.
