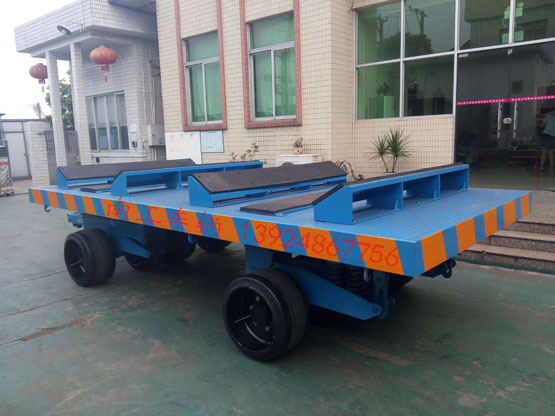

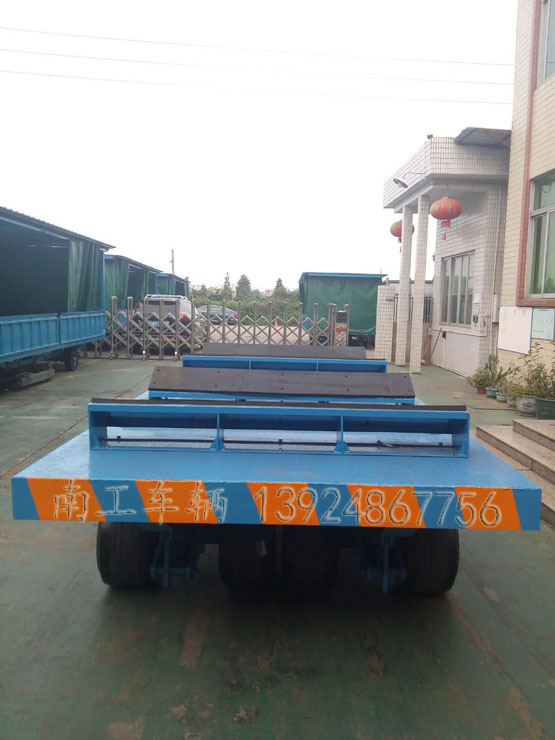

30-ton heavy-duty steel drum flatbed trailer for 55-gallon drums

Brand: Nangong, Model: NNGG30S-20/45-8S, Load Capacity: 30 tons, Deck Size: 4.5*2 meters, Color: Blue, Net Weight: 3930KG.

30-ton heavy-duty steel drum flatbed trailer detailed specifications:

1. This vehicle has a carrying capacity of 30 tons, with a platform deck width of 2 meters, length of 4.5 meters, and height of approximately 0.93 meters. The main beam is made of 30# steel, and the auxiliary beam of 16# steel. The deck is covered with 4MM patterned plate. The platform features four detachable steel coil holding racks, and the contact surface of the steel coils is equipped with rubber pads.

2. Tires are 8 pieces of 22*12*16 solid tires (Jiuda), single wheel carrying capacity of 5 tons, speed of 15KM/h.

3. This vehicle is equipped with a spring suspension system.

4. The design concept of this vehicle is suspended, automatically adjusting the vehicle's level and tire load balance according to the road flatness.

5. Front wheel rotation angle is 180 degrees left and right, facilitating turns with small radii.

6. The steering mechanism is a 30-ton turntable-type machine turntable assembly, with a dual-buffing traction frame, and the traction head has a thickness of 70MM.

7. Include one connector and plug, weld 4 vehicle hooks on both sides of the body.

Color: Blue with yellow caution stripes around the edge.

30-ton heavy-duty steel drum flatbed trailers, professionally designed and manufactured by Nangong Vehicle, are made with solid tires or pressure-fitted tires with strong load-bearing capacity and smaller tire diameter.

Application: Heavy-duty flatbed trailers are commonly used for the transit transportation of heavy products such as metallurgy, molds, and machinery. This trailer is designed for transporting steel coil round barrels, featuring a steel coil bracket + rubber pads on the deck.
