Application Scope:

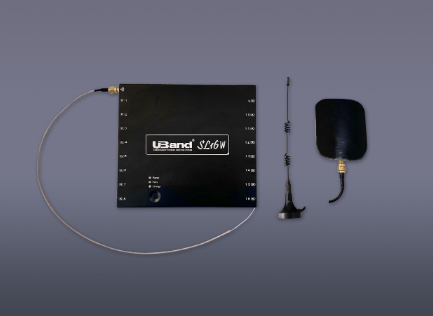

The UBand furnace temperature tester's superior insulation performance allows the temperature mapping system to operate in harsh thermal environments. Accompanied by the product through the heat treatment furnace, it can continuously monitor and track the temperatures of both the furnace and the product, yielding valuable data without the need for auxiliary tests. The generated curve analysis report provides engineers with the actual temperature status of the product and the furnace in real-time.

Insulated box size250mm*178mm*25mm; Sample Rate: 0.05S to 2000S (adjustable); Measurement Accuracy: ±0.5℃; Working Voltage: 3.7V to 4.2V; Resolution: 0.1℃; Power Consumption of Thermometer: ≤35mA; Instrument Operating Temperature: Maintained at 85.0℃ (or below); Memory Capacity: 524,288 data points; Start Methods: Button Start, Delayed Start, Temperature Start; Sensor: K-Type Thermocouple; Insulation Box: 160 degrees for 30 minutes; Suitable for Industry: Component Lamination; Measurement Range: -200 to 1370℃; Continuous Testing Stores 4 Sets of Data; Instrument Features: 1. Continuous testing, data downloaded once; 2. USB port, compatible with all computers; 3. Self-charging during data download; 4. Standard voltage calibration, reliable accuracy; 5. Data not lost when power is off; 6. Various indicator lights, clear instrument status; 7. One-button operation, easy to learn and use; 8. Lithium battery, fully charged for 60 hours. Automatically charges during data download. Analysis Software: 1. Analysis software identical to data download interface; 2. Calculate the holding time above any temperature point; 3. Display the curve of each channel's test process.

4. Analyze various parameters according to process requirements 5. Analyze software by inserting on-site test photos 6. Iconized operation interface, visually intuitive 7. Curve overlay and comparative analysis function, supports software cold-end compensation (the above are some of the features introduced)
