I. Product Introduction

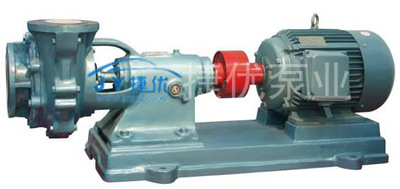

HTB-ZK Series Corrosion-Resistant Ceramic Pumps are single-stage, single-suction, cantilevered centrifugal pumps. The pump body and cover are made of acid-resistant ceramic with excellent corrosion and wear resistance, externally clad with cast iron. The impeller is made of engineering ceramic or engineering plastic. This pump boasts excellent corrosion resistance, compact structure, tight shaft seal, non-contaminating of the medium, ease of installation and maintenance, and reliable operation. Its application range is very extensive.

II. Performance Overview

Flow Rate: 5～240 m³/h; Head: 10～60 m; Axial Seal Structure: Back blade pressure reduction combined with fluororubber oil seal ring or auxiliary impeller centrifugal seal. This pump features corrosion resistance, wear resistance, easy maintenance, and reliable operation, suitable for conveying various corrosive media containing suspended solid particles, excluding hot concentrated alkali solutions. Operating temperature below 100℃ (operating temperature of engineering plastic impeller varies depending on material and medium), temperature difference fluctuation less than 50℃.

Section 3: Application Scope

Widely applicable in processes involving the transportation of corrosive media containing solid particles in mining, smelting, chemicals, oil, pesticides, dyes, and wastewater treatment.
