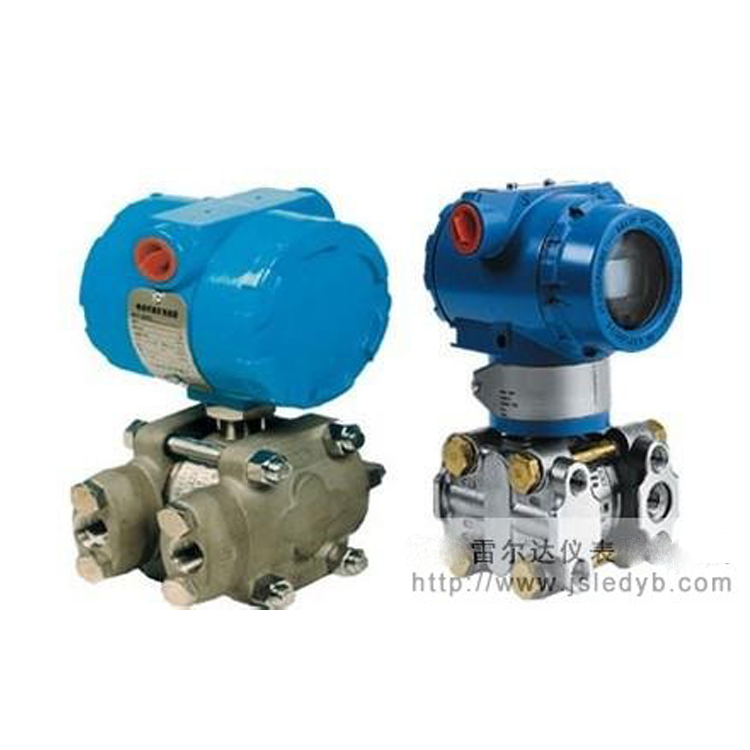

LRD-1151DR Differential Pressure Transmitter

Technical Specifications:

Temperature Impact:

Maximum range: 0～1.5 kPa; Zero point error: 1% of range at 28℃; Total error: 1.5% of range at 28℃

Static Pressure Impact:

Zero Error: 1.0% of full scale at 6.89 MPa static pressure.

Span Error: -1.75 ± 7.5%/6.89 MPa

Range error is a type of system error, which can be pre-corrected before installation.

Stability: No more than 0.5% of the maximum range within six months.

Damping: Continuous adjustable time constant between 0.4 to 4.0 seconds.

Installation Position Impact: Can cause a maximum zero-point error of ±0.25 kPa, but it is adjustable and does not affect the range. The measurement body has no effect on the rotation relative to the flange.

Weight: 5.4 kg (excluding options)

Structural Dimensions:

Wiring method:
