LRD-808 Type Wind Pressure Transmitter

Transmitters feature aluminum alloy or stainless steel enclosures, utilize isolation technology, and sensors are converted into standard current or voltage signals after precise temperature compensation. They interface with industrial computers or distributed control systems, widely used for measuring airway pressure or flow in power, oil, chemical, and metallurgical industries, achieving automatic measurement and control of the production process.

Technical Specifications:

Range: 0-0.06 to 100 kPa
Power Supply: 24VDC, 15VDC, 5VDC
Compensation Temperature: -10 to 70°C
Operating Temperature: -20～85℃
Overall Accuracy: 0.1%, 0.2%, 0.5%, 1.0%
Output Options: 4-20mA, 1-5V, 0-5V
Measuring Medium: Non-conductive, non-corrosive or slightly corrosive gases
Pressure Testing Type: Differential Pressure (suitable for negative pressure inside furnace pipeline)

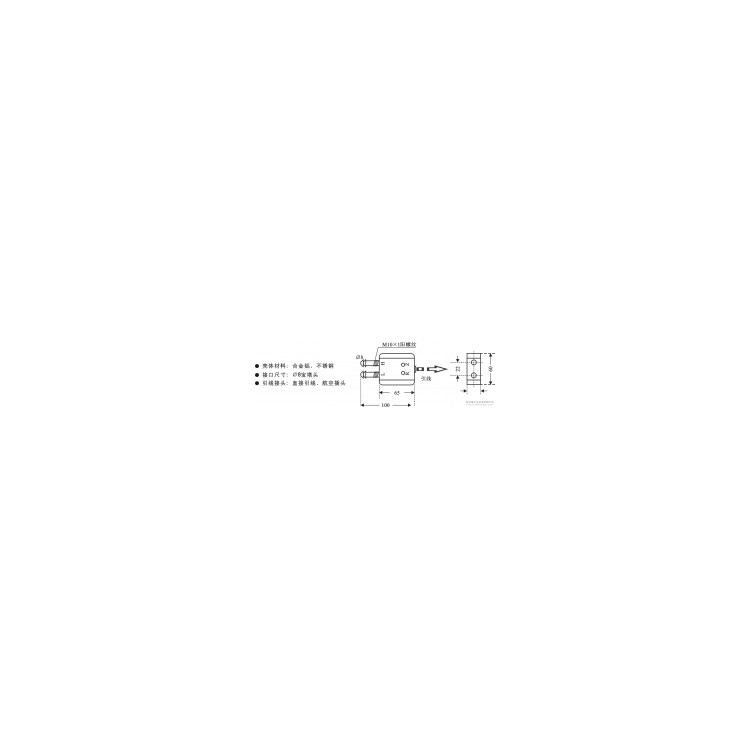

Structure Dimensions:
