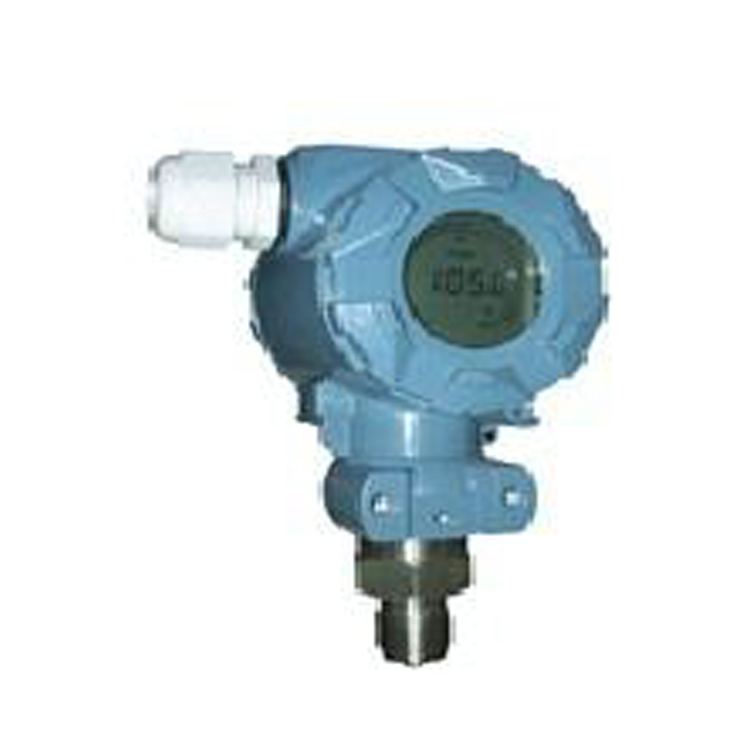

Model LED-801 Pressure Transmitter

Imported chip assembly, showcasing world-class pressure transmitter technology, compact, robust, lightweight, easy to install, and user-friendly; zero point and range can be externally continuously adjusted with wide migration range; suitable for various applications, all-weather harsh and dangerous environments, and various corrosive media; capable of measuring various corrosive and non-corrosive gases and liquids. Widely used in aerospace, oil, petrochemical, metallurgy, power, light industry, machinery, and other fields.

Technical Specifications

Range: 0-100Pa to 500MPa; -100 to 0kPa

Pressure Testing Forms: Gauge Pressure, Absolute Pressure, Negative Pressure

Compensation Temperature: -10～70℃ Operation Temperature: -20～85℃

Integrated Accuracy: 0.1%, 0.25%, 0.5%, 1%

Output Selection: 4-20mA, 0-10mA, 1-5V, 0-5V DC

Supply Voltage: 24V DC, 15V DC, 220V AC

Measurement Medium: Liquid, Gas, Steam

Structural dimensions
