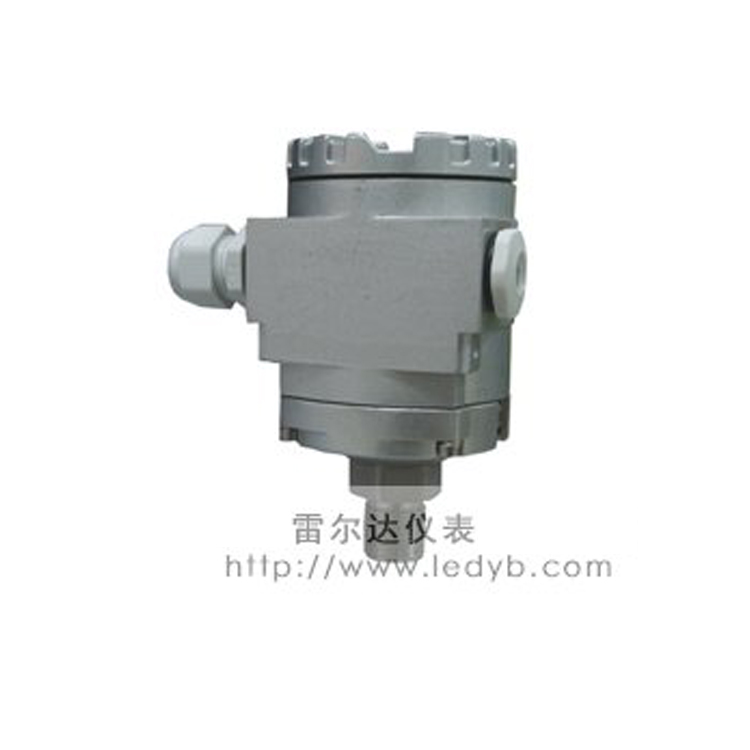

LRD-802 Pressure Transmitter

Transmitters are assembled with imported high-precision, high-stability corrosion-resistant chips, and the chips are welded to the housing using laser welding technology. They feature a pressure-free cavity, suitable for various applications prone to clogging, requiring hygiene maintenance, easy cleaning, or sterile environments. This product boasts a high operating frequency, making it ideal for dynamic measurements.

Technical Specifications:

Range: 0-0.06 to 40000 kPa
Power Supply: 24VDC, 15VDC
Compensation Temperature: -10 to 70℃
Operating Temperature: -20 to 85℃
Overall Accuracy: 0.25%, 0.5%, 1.0%.
Output Options: 4-20mA, 1-5V DC
Measurement Medium: Liquid, gas, or steam.
Pressure Testing Types: Gauge Pressure, Absolute Pressure

Structural dimensions:

Wiring Method:
