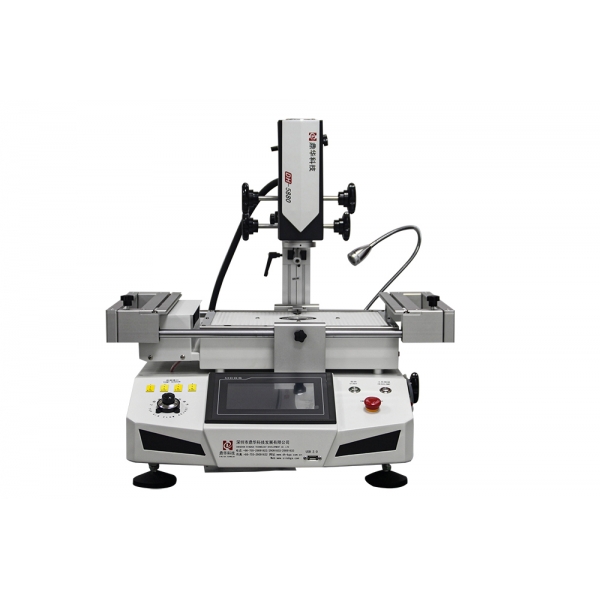

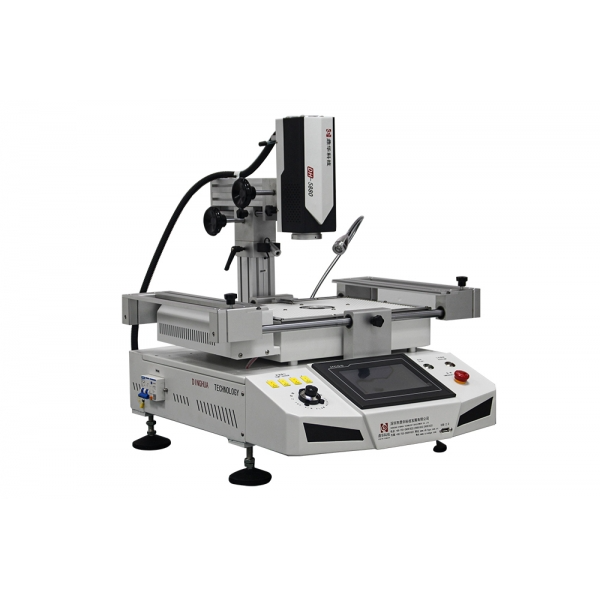

Dinghua BGA Repair Station DH-5880

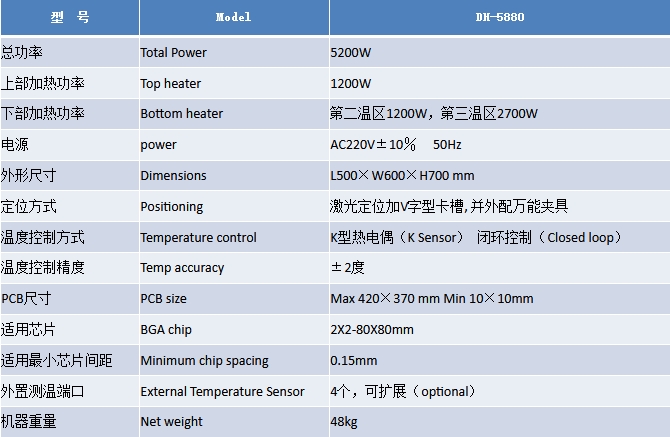

Parameters and specifications

One, DH-5880 BGA Repair Station Features

High-brightness LED lighting with shadowless illumination, allowing for a clear and immediate inspection of faulty mainboard chips.

2.微风 adjustment function, adjusts different wind speeds based on chip size, enhancing repair efficiency, and ensures small chips won't be blown off track during welding.

3. Laser red dot guidance, one-step placement for the mainboard;

4. External USB interface, various repair data can be imported into the computer for analysis and storage.

5. Equipped with a vacuum pen for easier handling of chips.

6. External with 4 temperature sensing interfaces for more precise temperature detection.

7. Touchscreen operation, built-in intelligent repair program, with real-time display and automatic analysis of repair data, turning you into a tech wizard in seconds.

8. Suitable for various chip repairs (POP, SOP, SOJ, QFP, QFN, BGA, PLCC, SCP, etc.)

Section 2: BGA Rework Station DH-5880 Product Specifications

Model

Model

DH-5880

Section 3: Product Description - BGA Repair Station DH-5880

Embedded industrial PC with a high-definition touch screen human-machine interface. Heating temperature, time, slope, cooling, and vacuum are all set on the human-machine interface. It displays the set and actual temperature curves in real-time and features instant curve analysis, allowing for real-time analysis and correction of the curves.

2. Three independent heating zones with top and bottom zones each capable of 8-stage temperature control. The three zones are controlled by separate PID algorithms to ensure synchronized optimal welding effects across different zones. Large pre-heating zone ensures PCB pre-heating is even and does not deform.

3. Stores up to 9,999 temperature curves, which can be called up at any time according to different BGA types. Curve analysis, setting, and correction can also be performed on the touchscreen. Both Chinese and English interfaces are available for selection, making it convenient for domestic and international customers to use without barriers.

4. High-precision K-type thermocouple closed-loop control and automatic temperature compensation system for precise temperature control, maintaining a temperature deviation of ±2 degrees. Additionally, an external temperature measurement interface is provided for precise temperature detection, along with accurate analysis and calibration of the measured temperature curve.

5. PCB board alignment utilizes a V-shaped groove, equipped with a laser positioning red dot for quick PCB location; a flexible and convenient movable universal fixture protects the PCB board, preventing damage to PCB edge components and PCB deformation, and can accommodate the alignment of PCB boards of various sizes.

6. Boasts dual password protection to prevent unauthorized modifications or accidental deletions of programs and parameters, offering superior security features.

7. Equipped with various specifications of alloy nozzles, which can rotate and position freely at 360 degrees, making installation and replacement easy.

8. After the upper and lower hot air stops heating, the cooling system automatically activates. A high-power cross-flow fan quickly cools the PCB board to prevent deformation. Once the temperature drops to room temperature, the cooling system automatically shuts off, ensuring the machine does not age after heating, effectively extending the equipment's lifespan.

9. Built-in vacuum pump; no need for external air source. Simply plug in the power anywhere for immediate use, unrestricted by air source; equipped with an external vacuum pen for convenient and quick retrieval of BGA chips.

10. Equipped with a USB port for easy downloading of current curve graphs to USB drives for storage, and allows for the use of a mouse to extend the screen's touch functionality.

11. Configure the "Early Warning" sound-activated function. Alert the workers with a sound control method 5-10 seconds before disassembly or welding is completed, to prepare accordingly.

12. CE certified with an emergency stop switch and an automatic power-off protection device for sudden accidents, the circuit can automatically shut off in the event of temperature loss control.
