About Equipment:
The reversing function accommodates the flipping requirements of different specifications of goods, safely, smoothly, and efficiently providing process conveying, achieving the goal of converting goods from horizontal to vertical or vice versa. Widely used in industries such as metallurgy, stamping, sheet metal, molds, papermaking, refrigeration, steel strips, spools, barrel materials, and rolled materials.
The flipper machines are categorized based on the maximum flip angle, including 90° flip machines, 120° flip machines, and 180° flip machines.
The machines can be categorized as steel strip turners, mold turners, and plate turners based on their performance implementations.

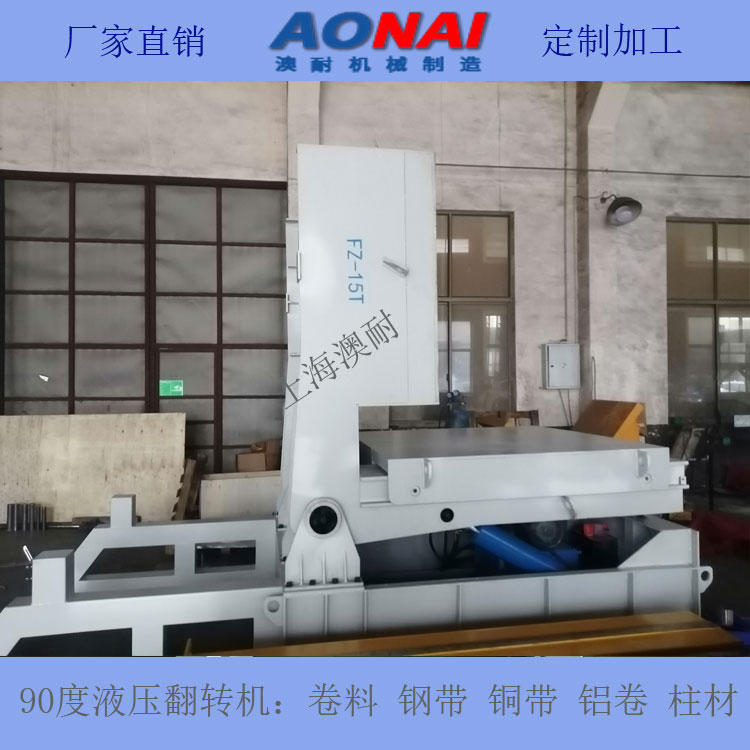

The steel strip flipper machine accomplishes the lifting of heavy steel coils onto the V-shaped surface of the flipper, achieving a 0-90° flip to lay the coils flat onto the tray.
Mold flipping machines facilitate the rotation of molds from 0-90° during maintenance of large and medium-sized molds, making the opening, closing, and lifting process convenient, effortless, and safe. They are an indispensable auxiliary equipment in stamping workshops and an ideal choice for large mold repairs.
The sheet flipping machine is a specialized equipment for the automotive industry, designed for flipping large stacks of thin plates. It is an essential auxiliary device for stamping automation production lines, as it not only reduces surface scratches on the sheet material, enhancing product quality, but also lessens the labor intensity for operators and improves production efficiency.
Equipment Specifications:
| Model | FY-03T | FY-05T | FY-06T | FY-08T |
| High-bearing capacity | 3 tons | 5 tons | 6 tons | 8 tons |
| Motor Power | 1.5KW | 2.2KW | 3.0KW | 3.0KW |
| Reversing Speed | 0-20 seconds ±10% | 0-20 seconds ±10% | 0-20 seconds ±10% | 0-30 seconds ±10% |
| Flip-top Surface | 800-2500mm, custom-made according to customer's actual product dimensions | |||
| Transmission Method | Mechanical or hydraulic transmission | |||
| Counter Shape | ①Plane A/Plane B②Plane A/B "V" shaped surface③Customized countertop as per customer's requirements | |||
| Reduction ratio | 1：286 | |||
| Operation Method | ① Line-Controlled Handle Operation ② Wireless Handle Operation ③ Independent Control Cabinet Button Operation | |||
| Self-weight | 1.5T | 2.0T | 2.5T | 3.0T |
| Flip Angle | 90°/180°/360° | |||
| Power Voltage |
Three-phase, four-wire, 380V, 50Hz
| |||
| Model | FY-12T | FY-15T | FY-20T | FY-30T |
| High Load Capacity | 12 tons | 15 tons | 20 tons | 30 tons |
| Motor Power | 4.0KW | 4.0KW | 5.5KW | 7.5KW |
| Reversing Speed | 0-30 seconds ±10% | 0-40 seconds ±10% | 0-50 seconds ±10% | 0-60 seconds ±10% |
| Flip-Top Surface | 800-2500mm custom-made according to customer's actual product dimensions | |||
| Transmission Method | Mechanical or hydraulic transmission | |||
| Pallet slot | ① Plan A/Plan B ② Plan A/B V-shape surface ③ Customized countertops according to customer's requirements | |||
| Gear Ratio | 1：286 | |||
| Operation Method | ① Wire Handle Operation ② Wireless Handle Operation ③ Standalone Control Cabinet Button Operation | |||
| Self-weight | 3.5T | 4.0T | 5.0T | 7.5T |
| * Large flip angle | 90°/180°/360° | |||
| Power Voltage |
Three-phase four-wire 380V 50Hz
| |||
