DSZ-500 Butterfly Discharge Valve, Tee Chute, Mine Electro-Hydraulic Tee Gate Valve
Features of Electromagnetic Sluice Gate

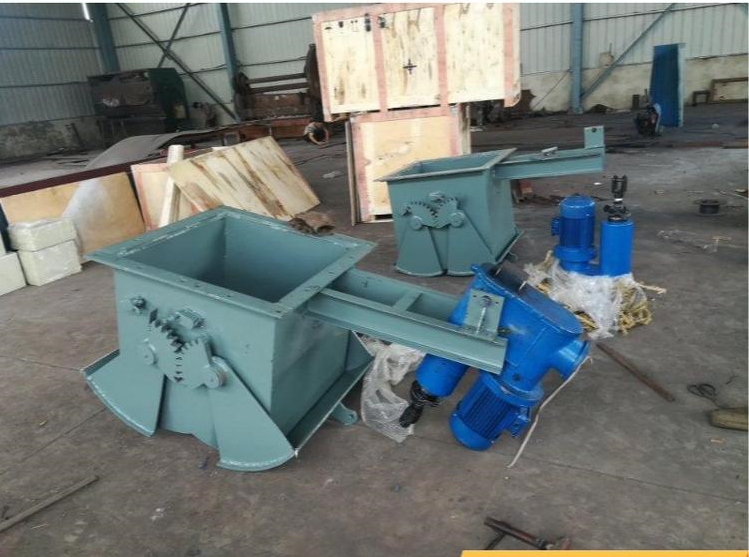

Electro-hydraulic sector gates are equipped with dust covers at the discharge outlet to prevent dust from flying: They use electro-hydraulic rods as the power source, replacing cylinder transmission, thus saving engineering investment costs; The electro-hydraulic sector gate valve body employs a stepped structure, reducing material flow impact; The critical parts of the valve body are lined with a grate structure.Abrasion-resistant Liner, reduces direct liner wear
This series of electro-hydraulic toggle gate is used in industries such as metallurgy, mining, power, chemicals, and building materials. It serves as the unloading device for various particle discharge systems.

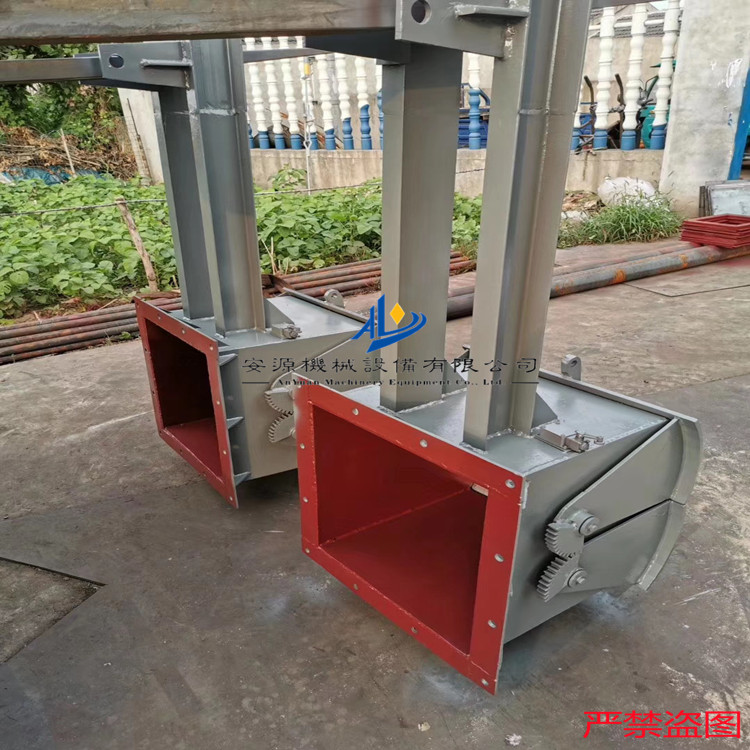

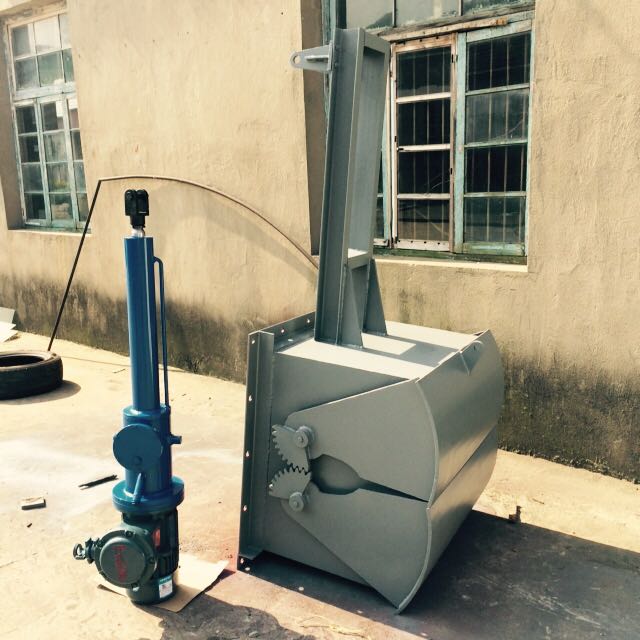

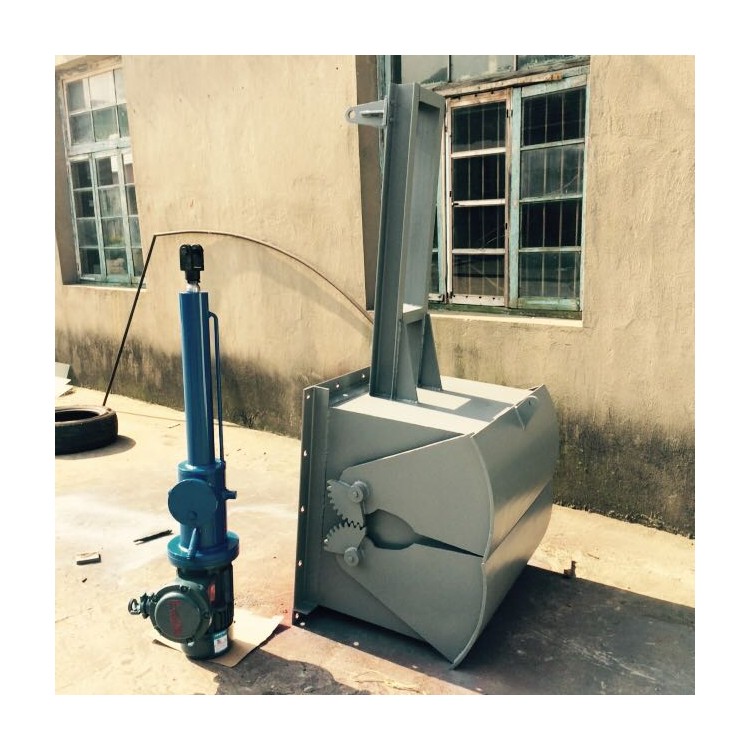

1. The DEZ type鄂式闸门 features a simple structure, utilizing... Welded from steel plate, powered by electro-hydraulic drive and gear transmission, operates smoothly with low failure rate, easy maintenance, and capable of quickly cutting off the material flow.
2. The HDEZ type environmental-friendly toggle gate features a fully enclosed structure, compact design, electro-hydraulic rod drive, and gear transmission. It operates smoothly with a low failure rate, no material jamming, easy maintenance, and can quickly interrupt material flow while being environmentally friendly.
Operation of Electro-hydraulic (Electric) Gate Valves (Gate Shutter): First, please note the medium flow direction marked on the gate body during installation. When connecting the two flanges. Seal the gaskets and then evenly tighten the bolts. Next, when in operation, identify the direction of the fan-shaped gate valve and properly connect the actuator. It's in operation. Regularly lubricate all transmission parts to extend the service life of the labium valve; improper operation can increase the degree of wear on the labium valve.
Electro-hydraulic Flat Sluice Gate Working Principle: The electro-hydraulic flat sluice gate is mainly composed of a frame, screw nut, handwheel, and sluice plate. HandwheelThe sprocket rotates, causing the screw, nut, and gate to move reciprocally horizontally, thereby achieving the opening and closing of the valve.
