Electro-hydraulic three-way分流阀 Coal storage three-way chute Arc-shaped ash unloading valve

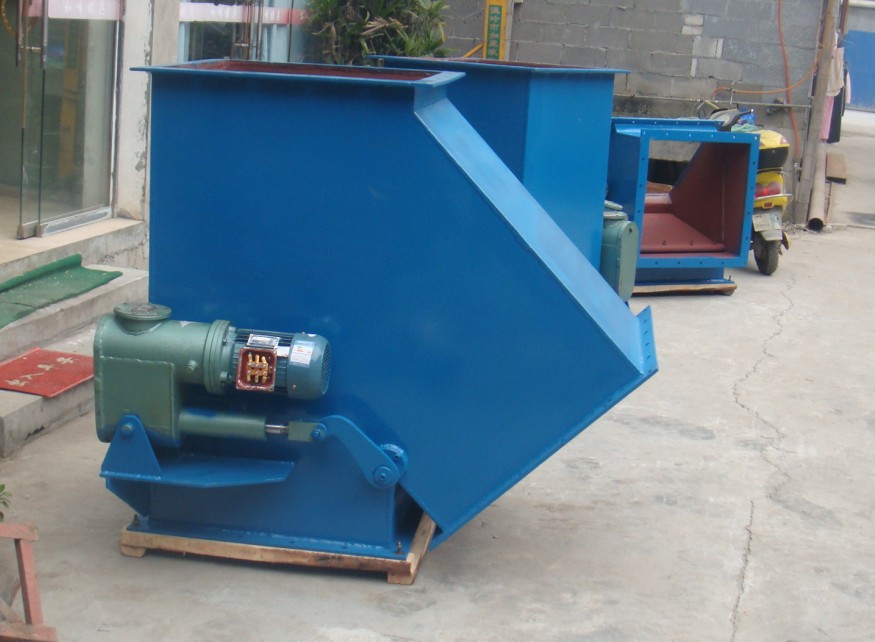

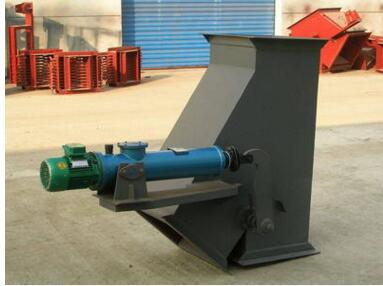

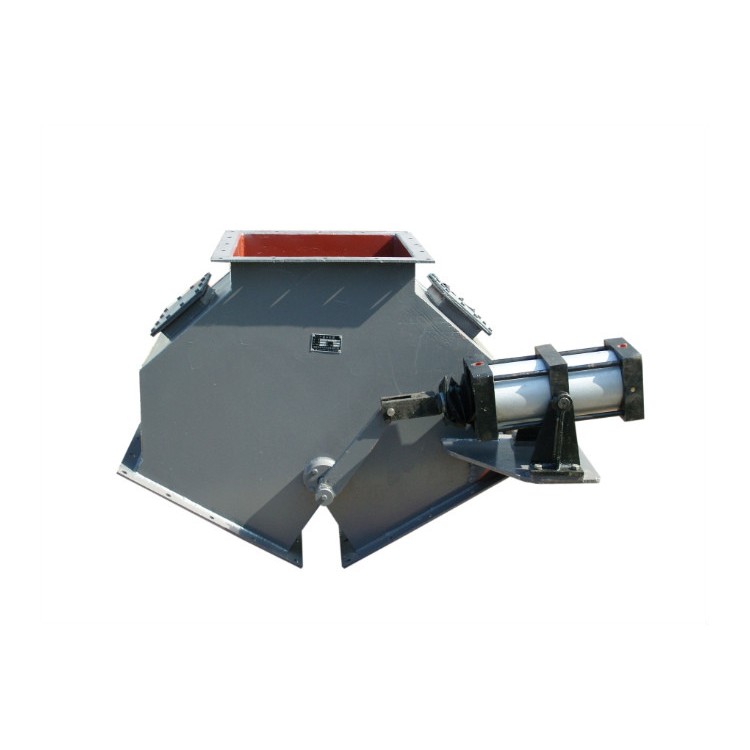

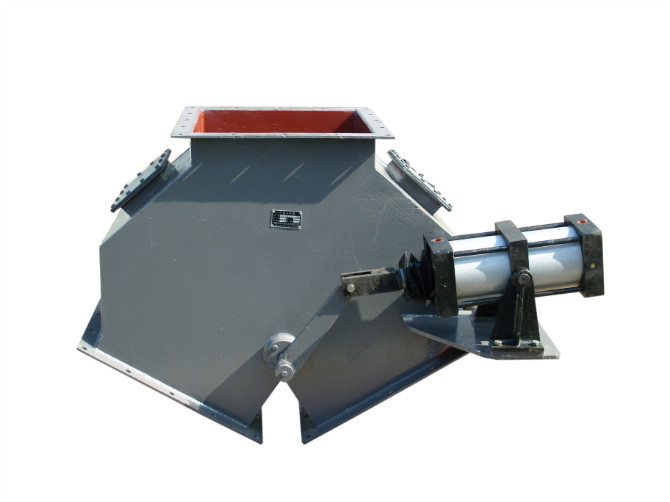

Electro-hydraulic Three-way Diverting Valve Brief Introduction

1. The three-way分流器 is suitable for various bulk materials such as ore, coal, coke, slag, chemical products, etc. with a bulk density of ≤2.5t/m3. When used under corrosive or high-temperature conditions, the material of the gate can be changed. In explosion-proof areas, XDGB type electro-hydraulic push rod or DYQB type explosion-proof electro-hydraulic rotary drive can be used.

2. The A and B type Tee Diverters can directly connect the upper flange to the bottom of the hopper on the conveyor head or other equipment discharge interfaces. The C, D, and E type Tee Diverters have the same connection method, but they are generally used under conditions of a bulk density ≤ 2.8t/m3, with high abrasiveness and harsh working environments. Their structure and dimensions are larger (liner plates are also thicker), making them heavier, and additional support is required based on actual usage. The A, B, C, D, and E type Tee Diverters all enable bidirectional switching and分流 of materials.

Electro-hydraulic three-way分流阀 product features

1. Well-designed, with complete specifications and models, the product series is easy to select, highly versatile, and comprehensive in its matching capabilities. It's user-friendly and simple to maintain.

2. If all gates are powered by electro-hydraulic rotary drives or hydraulic cylinders, they offer fast and flexible operation, along with load-start capability and overload protection. This prevents motor burnout, ensuring smooth and reliable equipment operation. The entire unit is compact, lightweight, energy-efficient, low-noise, and easy to install.

3. Full-liquid drive system, featuring infinite adjustment of both thrust and pull forces with a wide driving force range. Adjusts reciprocating stroke, automatically locks the position, and controls the flow rate of the gate by adjusting the opening degree of the gate valve.
